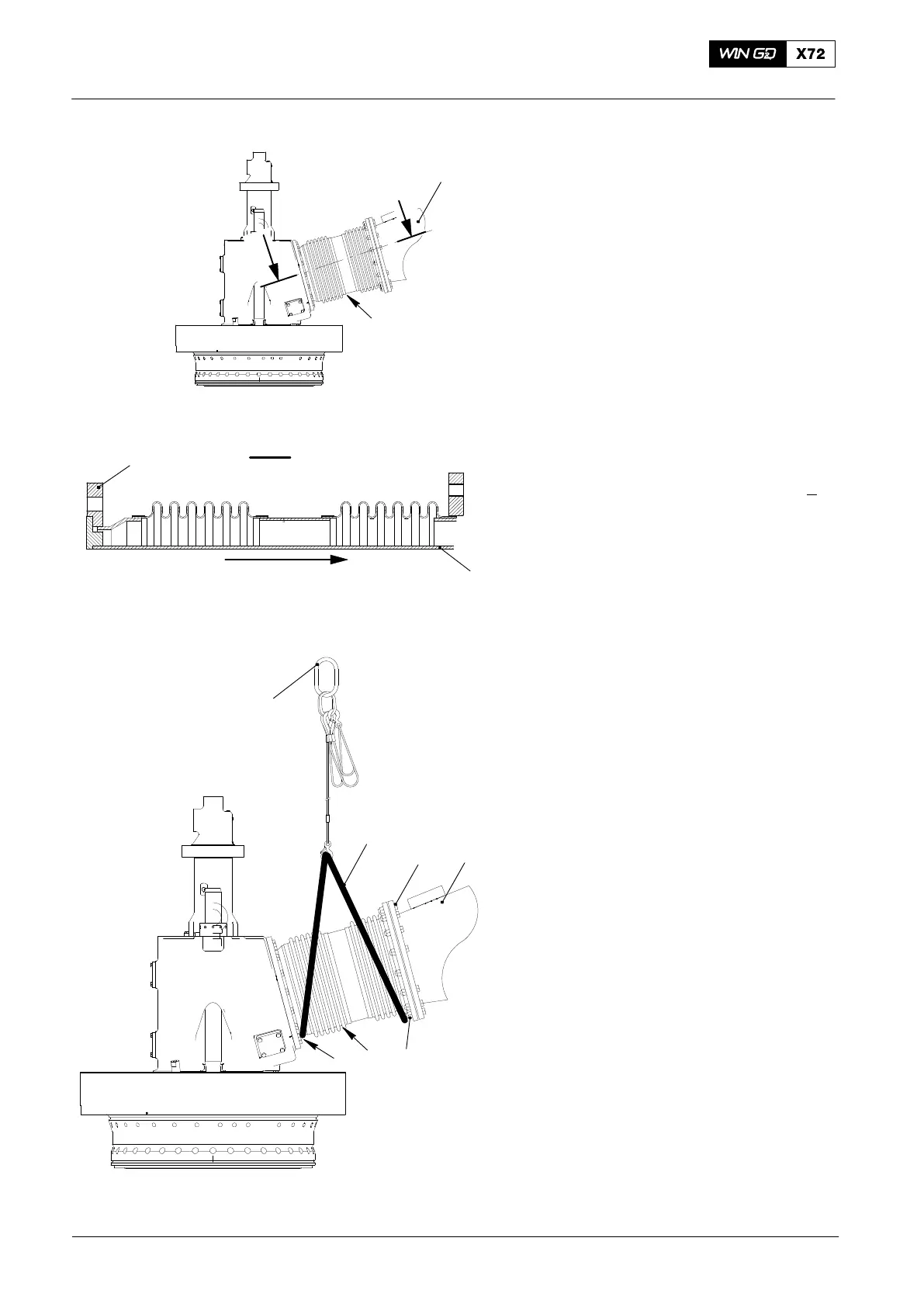

14) Clean the sealing surfaces of the
expansion piece (2, Fig. 7) and the
related faces on the valve cage and
exhaust pipe (1).
15) Apply a thin layer of heat-resistant
lubricant to the sealing faces and the
screws (5, 6).
16) Put the slings (tool 94202K) in position
on the expansion piece.
17) Connect the slings to the hook on the
lifting tool (94209).
18) Use the crane to lift the expansion
piece (2).
19) Put the expansion piece in position
between the valve cage and the
exhaust pipe. Make sure that the
direction of flow is correct see view II
.
20) Install the screws (5), screws (6) and
nuts (4).
21) Remove the slings and the lifting tool.
