06/2014
3-14
WC 5022/5024
IDS1 Auger Mark
Version 1.0
Image Quality Troubleshooting
IDS1 Auger Mark

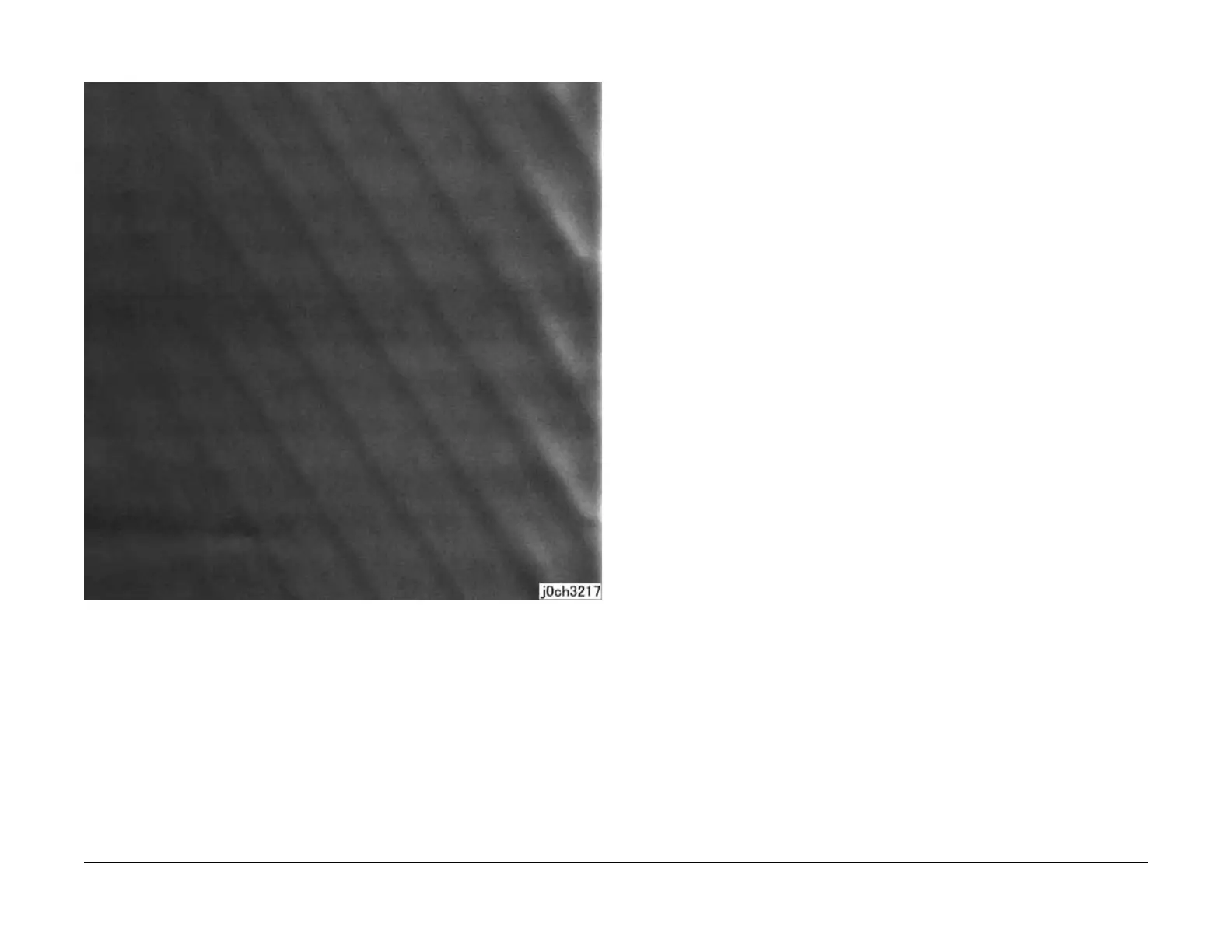

Figure 1 Auger Mark Defect Sample (j0ch3217)
Cause
1. The Developer Magnetic Roll magnetic field failed.
2. There was a drop in the level of developing powder.
Action
1. Replenish the Developer (PL 8.6)
NOTE: Approx. 10 g (the maximum is 30 g)
2. Replace the Developer (PL 8.6)
3. Replace the Drum Cartridge (PL 8.1) (REP 8.1.1)
NOTE: This may occur immediately after a new CRU is installed.-> Correct this by feed-
ing a few sheets of paper.
