Xerox WorkCentre 5022 Service Manual

06/2014
4-47
WC 5022/5024
Repairs and Asdjustments
Version 1.0
REP 13.1.1 MSI
Parts List on PL 13.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.

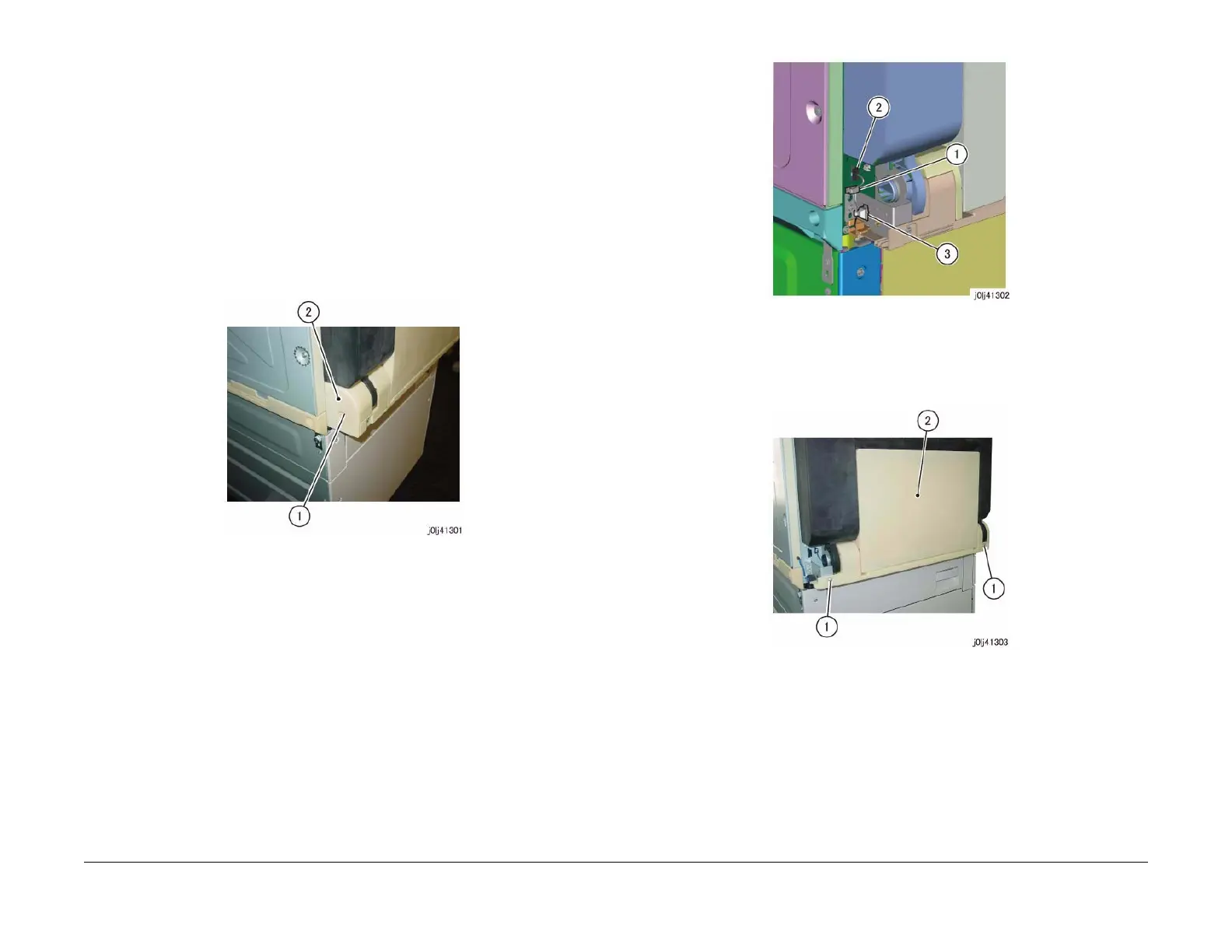

1. Remove the Hinge Rear Cover. (Figure 1)
a. Remove the screw.
b. Remove the Hinge Rear Cover.
Figure 1 j0lj41301
2. Disconnect the connector. (Figure 2)
a. Release the wire harness from the clamp.
b. Disconnect the connector.
c. Remove the cable band.
Figure 2 j0lj41302
3. Remove the MSI. (Figure 3)
a. Remove the screw (x2).
b. Remove the MSI.
Figure 3 j0lj41303
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the MSI, insert the boss (x2) of the MSI into the holes for the boss. (Figure
4)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
