Xerox WorkCentre 5022 Service Manual

06/2014
4-59
WC 5022/5024
Repairs and Asdjustments
Version 1.0
REP 17.1.1 Exit Cover
Parts List on PL 17.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Drum Cartridge. (REP 8.1.1)
2. Remove the Toner Cartridge. (PL 8.1)
3. Remove the Front Cover. (REP 19.1.1)
4. Remove the Fusing Unit. (REP 7.1.1)
5. Remove the Top Cover. (REP 19.1.2)

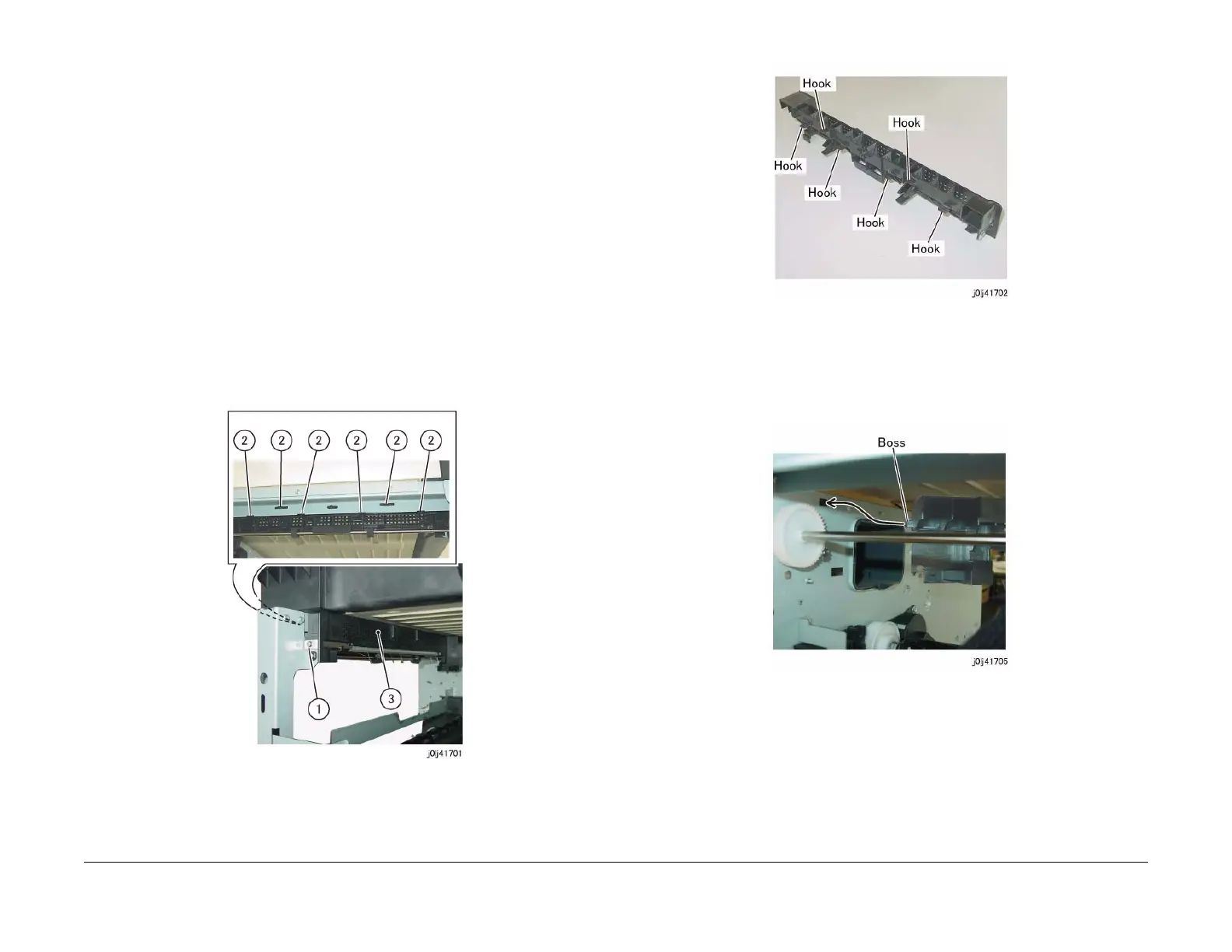

6. Remove the Exit Cover. (Figure 1)
a. Remove the screw.
b. Release the hook (x6).
c. Remove the Exit Cover.
Figure 1 j0lj41701
Reference: This shows the removed Exit Cover. (Figure 2)
Figure 2 j0lj41702
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Exit Cover, insert the boss of the Exit Cover into the hole of the
Frame. (Figure 3)
Figure 3 j0lj41705

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
