Xerox WorkCentre 5022 Service Manual

06/2014
5-26
WC 5022/5024
PL 10.4
Version 1.0
Parts List

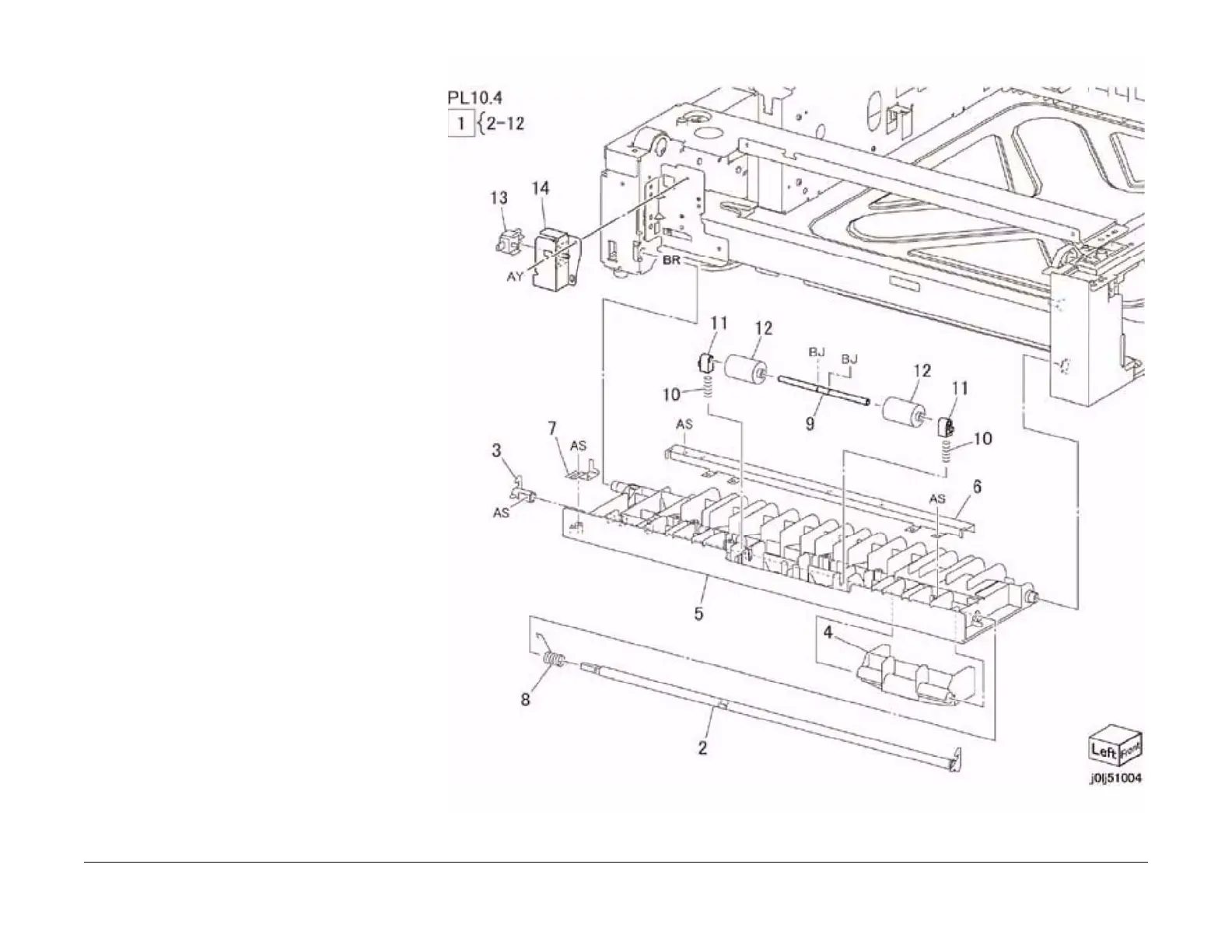

PL 10.4 Left Cover
Item Part Description
1 802K57026 Left Cover Assembly (Item 2-12)
2 003E59630 Latch
3 003E59640 Hook
4 011E14481 Handle
5 – Left Cover (P/O Item 1)
6 054E23421 Chute
7 120E22240 Actuator
8 809E54501 Spring
9 – Shaft (P/O Item 1)
10 809E54590 Spring
11 013E26100 Bearing
12 059E99241 Pinch Roll
13 110E12220 STM Left Cover Switch
14 030K75511 Bracket Assembly

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
