Xerox WorkCentre 5022 Service Manual

06/2014
5-34
WC 5022/5024
PL 11.5
Version 1.0
Parts List

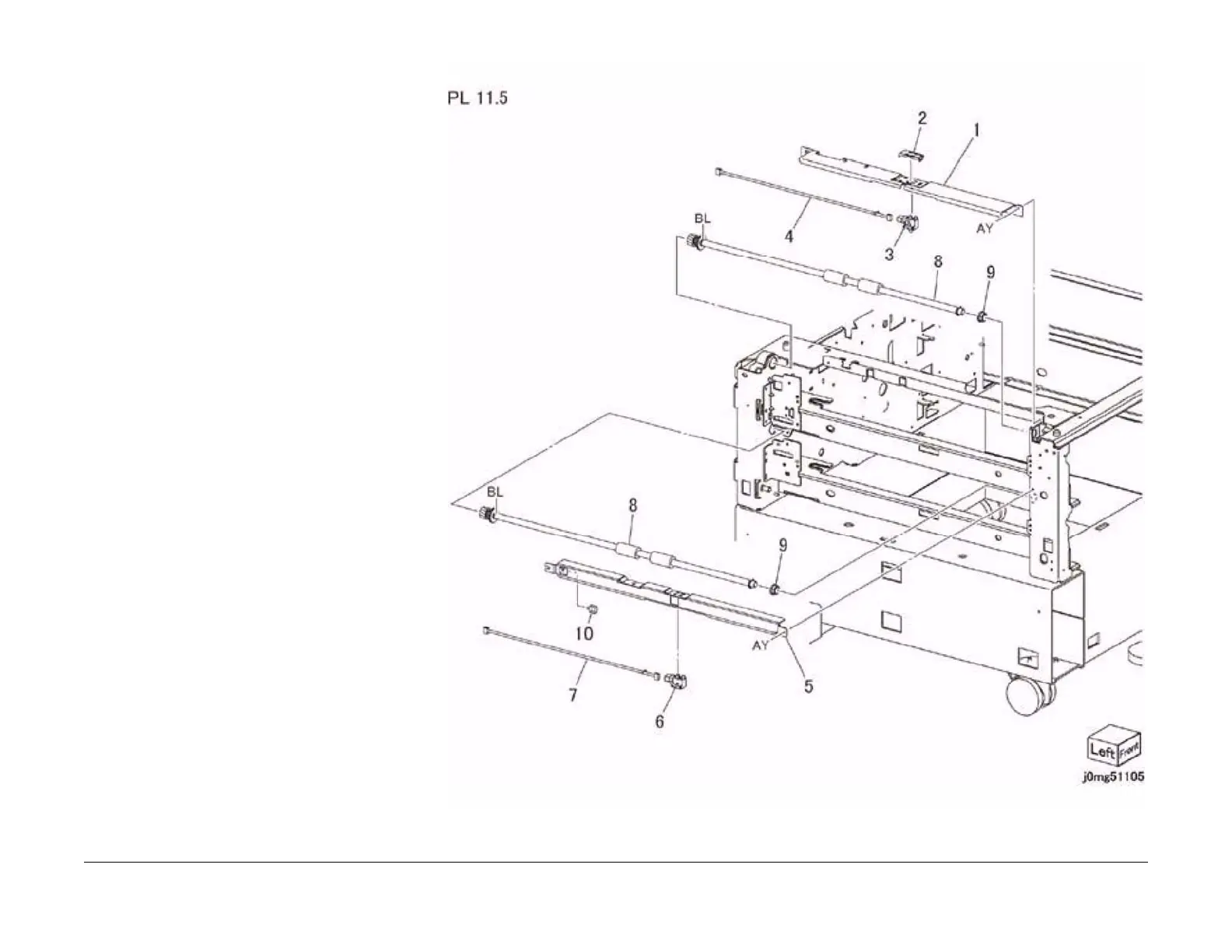

PL 11.5 Takeaway Roll
Item Part Description
1 – Chute
2 802E54672 Cover
3 130K64121 Tray 3 Feed Out Sensor
4 952K08150 Wire Harness
5 – Chute
6 130K64471 Tray 4 Feed Out Sensor
7 962K18900 Wire Harness
8 059K26251 Takeaway Roll Assembly
9 013E84520 Bearing
10 – Clamp
