Xerox WorkCentre 5022 Service Manual

06/2014
4-32
WC 5022/5024
Version 1.0
Repairs and Asdjustments

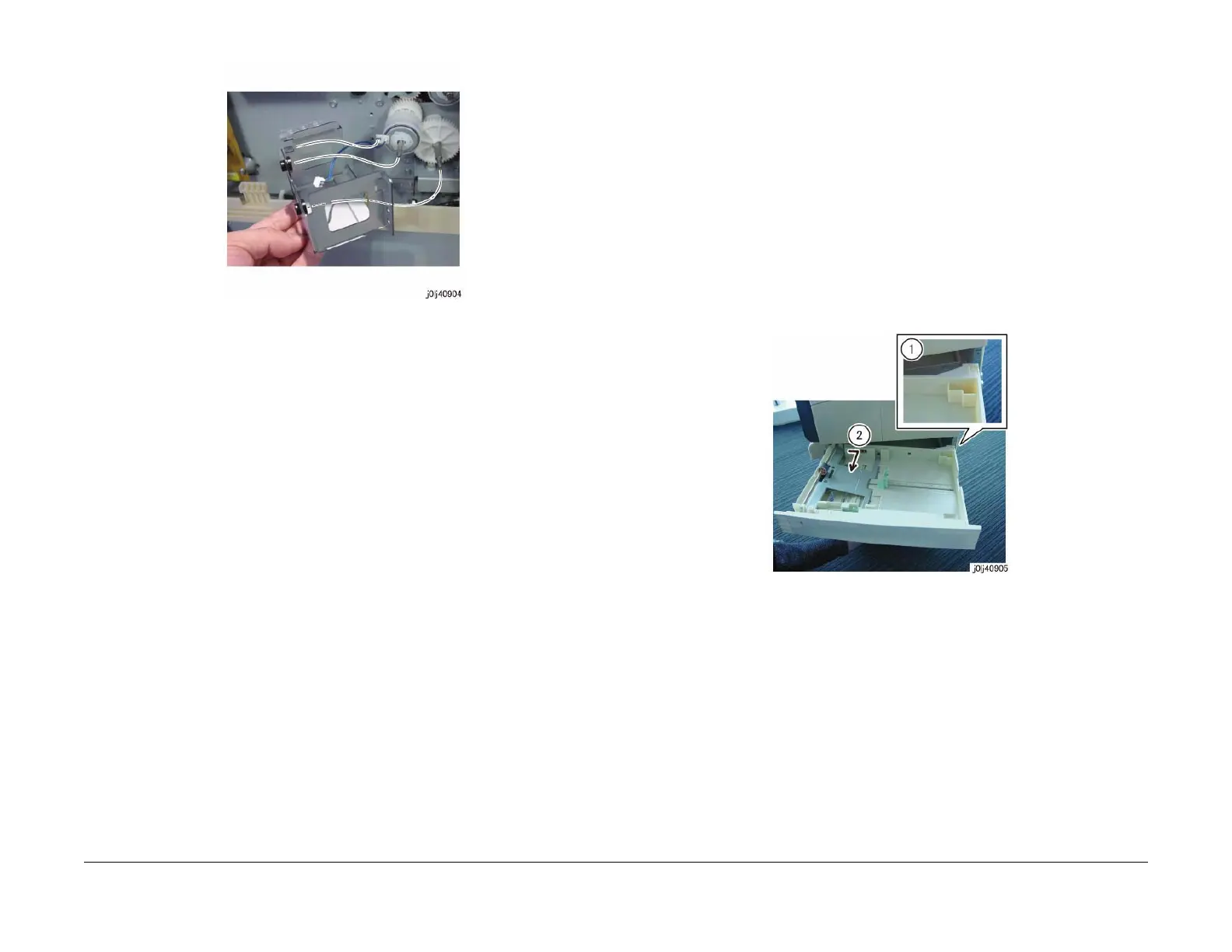

Figure 4 j0lj40904
REP 9.1.2 Tray 1
Parts List on PL 9.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the paper from Tray 1.
2. Pull out Tray 1 until the position where it is stopped by the stopper.
3. Remove Tray 1. (Figure 1)
a. Lift up the front of Tray 1 and free the rear right side of Tray 1.
b. Free the rear left side of Tray 1 in the direction of the arrow.
Figure 1 j0lj40905
Replacement
1. To install, carry out the removal steps in reverse order.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
