Xerox WorkCentre 5022 Service Manual

06/2014
3-25
WC 5022/5024
3.4 Fusing Unit Paper Wrinkle Alignment Adjustment
Image Quality Troubleshooting
Version 1.0
3.4 Fusing Unit Paper Wrinkle Alignment Adjustment
[Procedure]

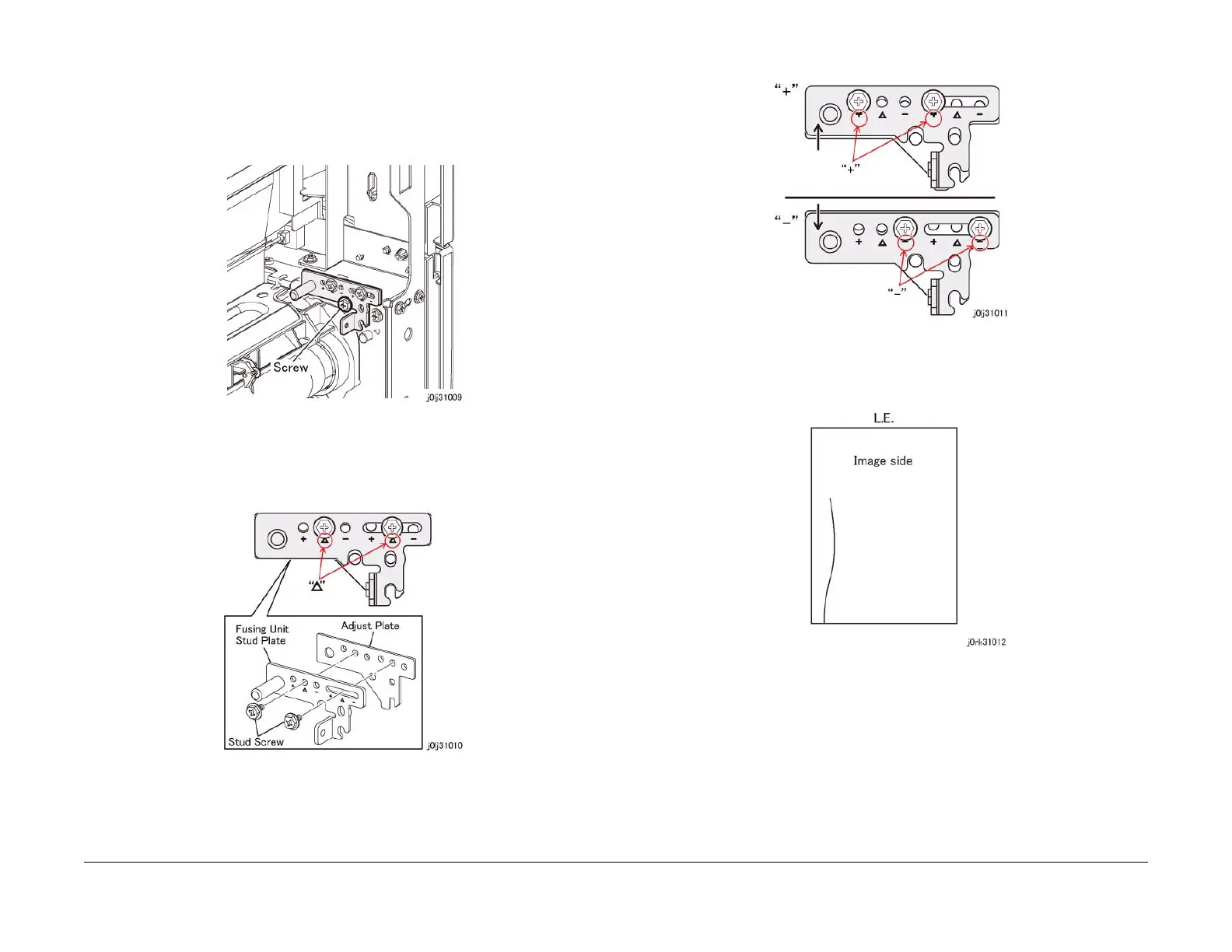

1. Installation/removal of Adjustment Bracket
a. Remove the Fusing Unit.
b. Remove the front screw of the Adjustment Bracket at the front.
Figure 1 j0lj31009
2. Assembly of Adjustment Bracket
a. Parts Configuration
• At shipment (+/- 0 mm): Triangle mark
Figure 2 j0lj31010
b. Depending on the case, assemble the Fusing Unit Stud Plate and the Adjust Plate
such that the surface with the triangle marks ( +, -) is at the top.
• Plus (+0.5 mm) state: '+' mark
Minus (-0.5 mm) state: '-' mark
Figure 3 j0lj31011
3. Adjustment Method
a. If the wrinkle is at the front, use '-'.
Figure 4 j0rk31012
b. If the wrinkle is at the rear, use '+'.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
