Xerox WorkCentre 5022 Service Manual

06/2014
5-52
WC 5022/5024
PL 56.2
Version 1.0
Parts List

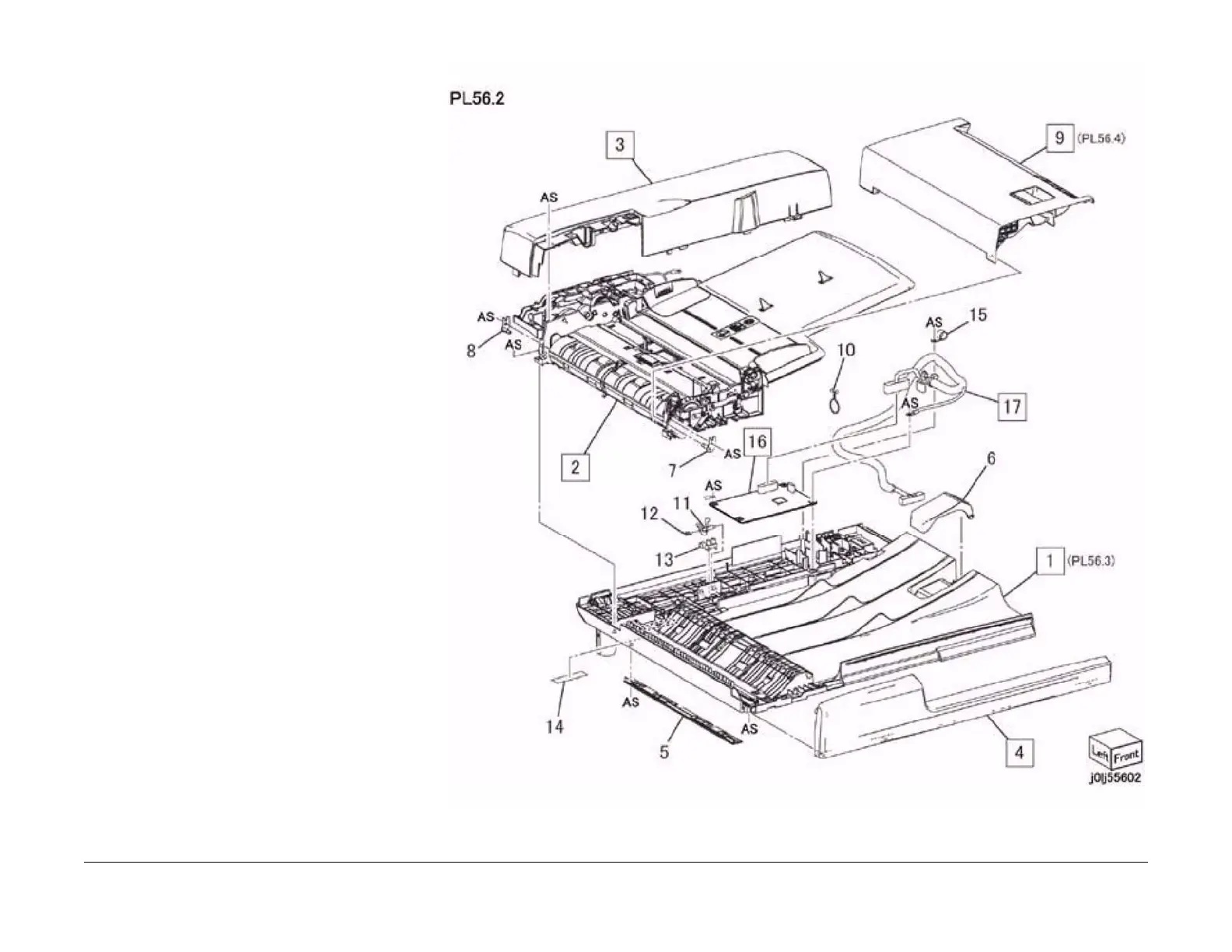

PL 56.2 DADF Component
Item Part Description
1 – DADF Base Frame (PL 56.3)
2 059K75733 DADF Feeder Assembly (REP
56.2.5)
3 848E86411 DADF Rear Cover (REP 56.2.2)
4 848E86430 DADF Front Cover (REP 56.2.1)
5 848E86450 Registration Pinch Cover
6 803E13310 Tray Stopper
7 068K67551 Hinge Bracket (Front)
8 049K17810 Hinge Bracket (Rear)
9 059K75752 Upper Feeder (PL 56.4) (REP
56.2.4)
10 – Clamp
11 120E34270 Actuator
12 809E50792 Spring
13 930W00121 DADF Open Sensor
14 – Data Plate
15 – Clamp
16 960K62447 DADF PWB (REP 56.2.3)
17 952K08471 DADF I/F Wire Harness

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
