Xerox WorkCentre 5022 Service Manual

06/2014
5-23
WC 5022/5024
PL 10.1
Parts List
Version 1.0

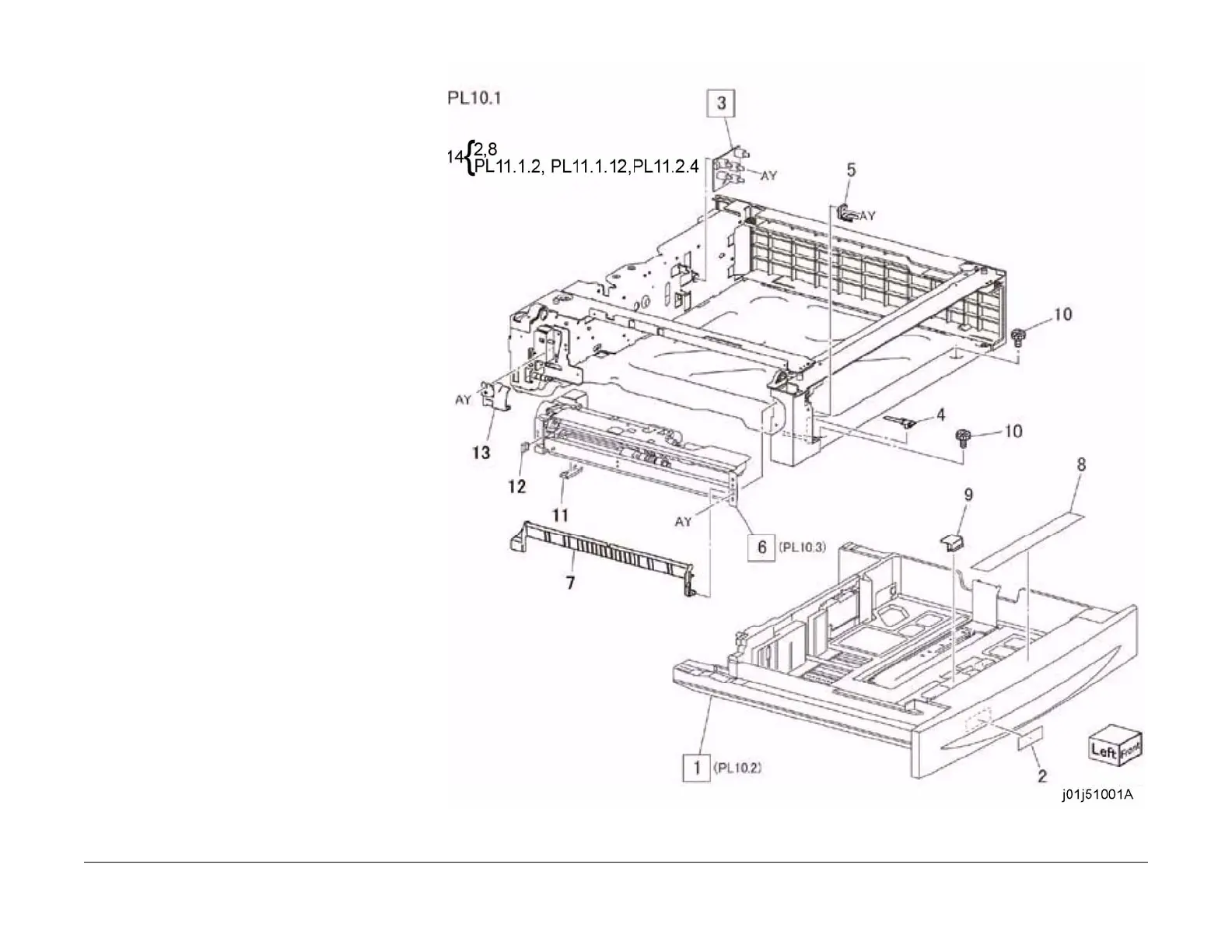

PL 10.1 Tray 2 ,Feeder
Item Part Description
1 050K64424 Tray 2 (PL 10.2)
2 – Label (No.2) (P/O Item14)
3 110K11680 Tray 2 Paper Size Switch
4 014E51110 Tray Spacer
5 003E61510 Tray Stopper
6 059K79621 Tray 2 Feeder (PL 10.3) (REP
10.1.1)
7 054K27520 Feed Out Chute
8 – Label (Instruction) (P/O Item14)
9 014E59990 Slide Lock
10 826E07210 Docking Screw
11 – Cover
12 – Holder
13 – Feeder Connector Cover
14 604K90810 Tray 2,3,4 Label Kit
