Xerox WorkCentre 5022 Service Manual

06/2014
5-33
WC 5022/5024
PL 11.4
Parts List
Version 1.0

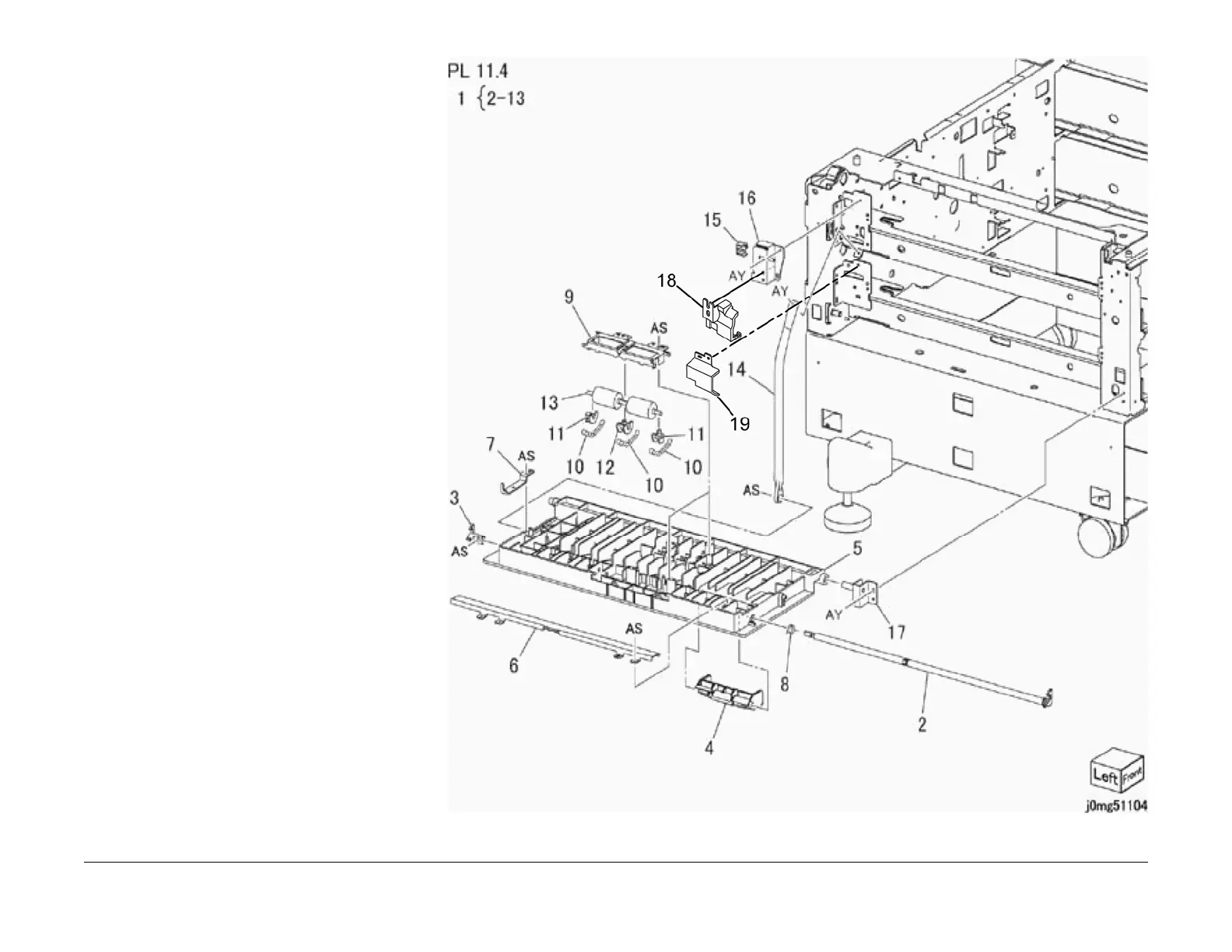

PL 11.4 Left Cover
Item Part Description
1 802K70856 Left Cover Assembly (Item 2-13)
2 003E59630 Latch
3 003E59640 Hook
4 011E14481 Handle
5 – Left Cover (P/O Item 1)
6 054E23421 Chute
7 – Actuator (P/O Item 1)
8 809E54501 Spring
9 – Bracket (P/O Item 1)
10 – Spring (P/O Item 1)
11 – Bearing (P/O Item 1)
12 – Bearing (P/O Item 1)
13 059E98190 Pinch Roll
14 830E45710 Support
15 110E12220 2 Tray Module Left Cover Switch
16 030K75511 Bracket Assembly
17 – Bracket
18 – Cover-FDR
19 – Cover-FDR 2T
