Xerox WorkCentre 5022 Service Manual

06/2014
5-55
WC 5022/5024
PL 56.5
Parts List
Version 1.0

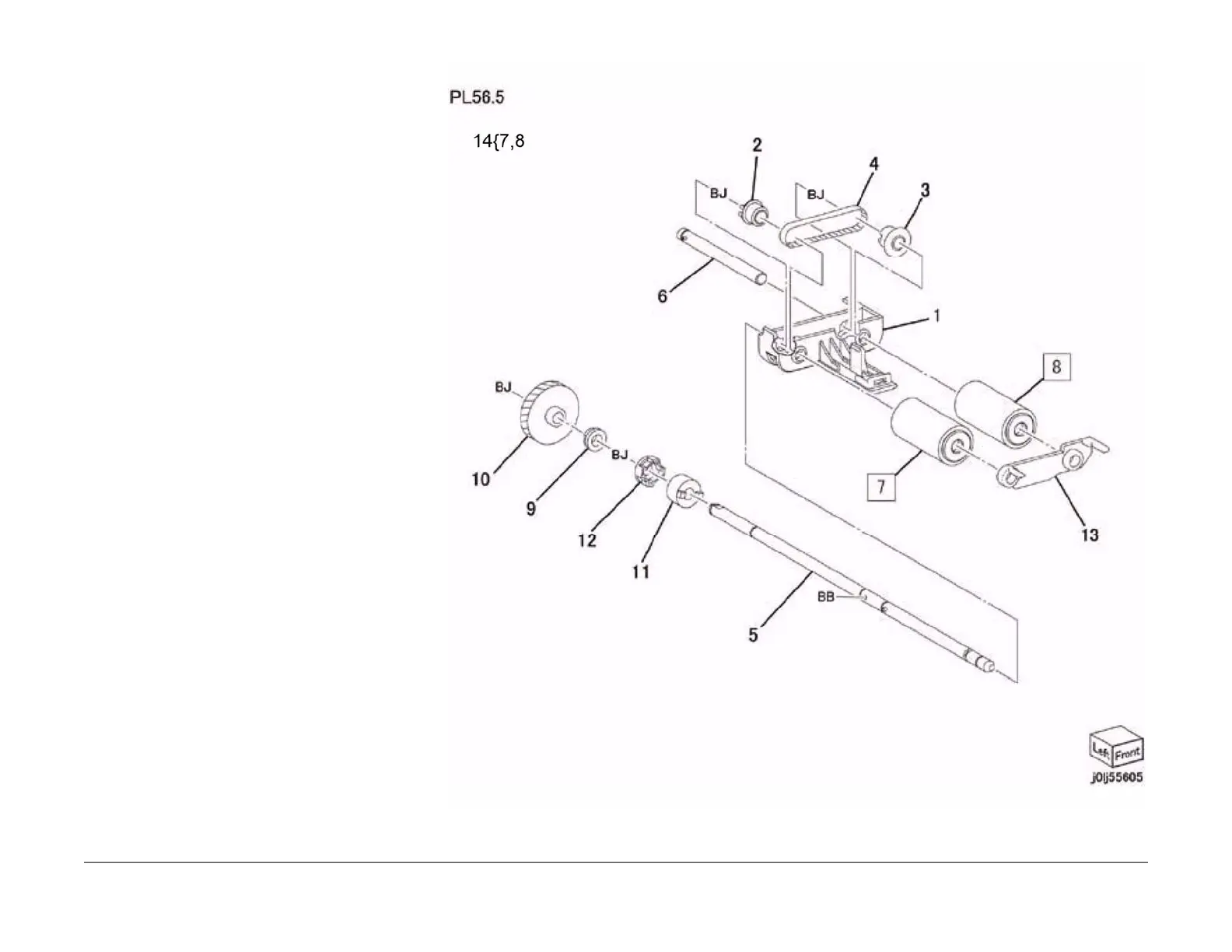

PL 56.5 Feed Roll Nudger Roll
Assembly
Item Part Description
1 – Housing
2 – Pulley (Feed)
3 – Pulley (Nudger)
4 423W05354 Belt
5 – Shaft (Feed)
6 – Shaft (Nudger)
7 – DADF Feed Roll (P/O Item 14)
(REP 56.5.1)
8 – DADF Nudger Roll (P/O Item 14)
(REP 56.5.1)
9 413W85459 Bearing
10 807E40760 Helical Gear
11 – Brake
12 – Brake Holder
13 – Housing
14 604K80750 DADF Feed/Nudger Roll Kit (Item
7,8)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
