Xerox WorkCentre 5022 Service Manual

06/2014
3-16
WC 5022/5024
IDS4 Black Bands
Version 1.0
Image Quality Troubleshooting
IDS4 Black Bands

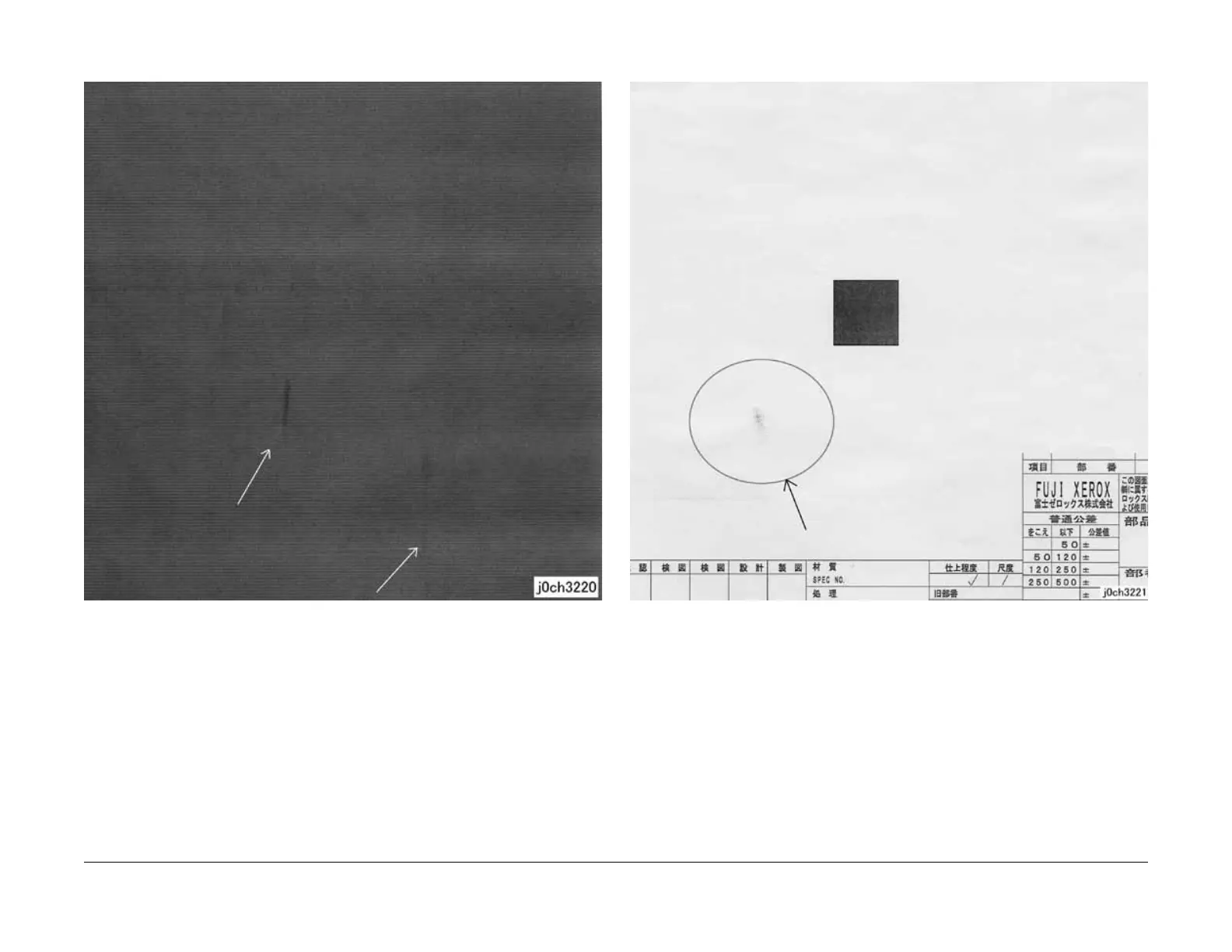

Figure 1 Black Bands Defect Sample (j0ch3220)
Cause
1. The developing powder is not well mixed.
Action
1. Mix the developing powder by processing blank paper.
IDS5 Toner Contamination
Figure 1 Toner Contamination Defect Sample (j0ch3221)
Cause
1. Cloud toner dropped from the XERO/DEVE Cartridge.
Action
1. Mix the developing powder by feeding blank paper.
2. Replace the Drum Cartridge (PL 8.1) (REP 8.1.1)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
