Xerox WorkCentre 5022 Service Manual

06/2014
3-19
WC 5022/5024
IDS9 Regular Toner Contamination In Process Direction
Image Quality Troubleshooting
Version 1.0
IDS9 Regular Toner Contamination In Process Direction
(Spots, Streaks, Bands etc.)

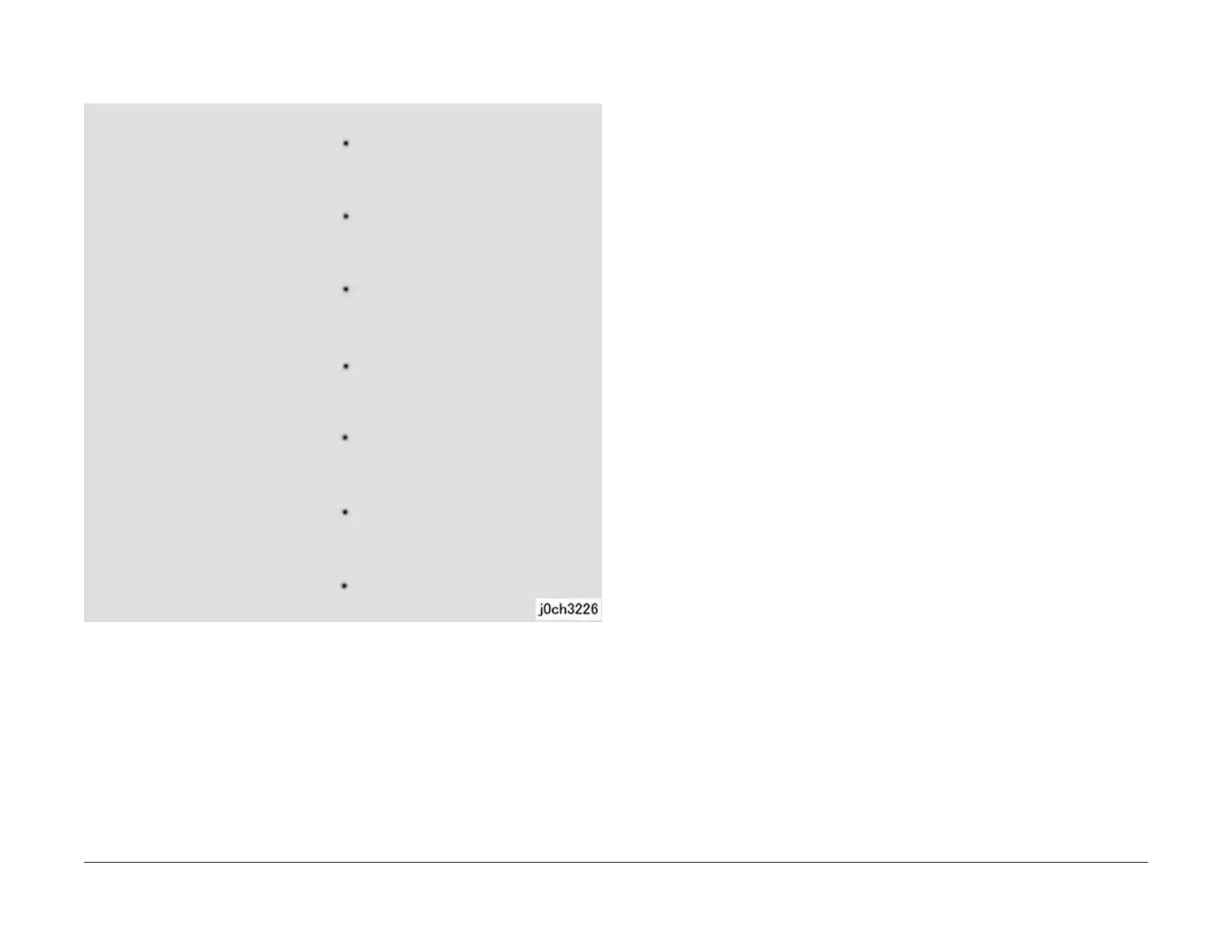

Figure 1 Regular Toner Contamination In Process Direction (Spots, Streaks, Bands etc.)
Defect Sample (j0ch3226)
Cause
1. 94 mm pitch -> Drum: Scratches or foreign substances
2. 27 mm pitch -> Magnetic Roll: Developing powder stuck on the Magnetic Roll
3. 38 mm pitch -> BCR: Scratches or foreign substances
4. 79 mm pitch -> Heat Roll: Scratches or foreign substances
5. 47 mm pitch -> Heat Roll (Fusing Unit): Contamination
6. 63 mm pitch -> Registration Roll: Contamination
7. 47 mm pitch -> If this occurs during Duplex feed - Duplex Roll 1, Duplex Roll 2: Contami-
nation
Action
1. 1,4,5,6: Clean or replace the Drum Cartridge (PL 8.1) (REP 8.1.1)/Fusing Unit (PL 7.1)
(REP 7.1.1)
2. 2,3: Replace the Drum Cartridge (PL 8.1) (REP 8.1.1)
3. 7: Clean or replace the Duplex Roll1, Duplex Roll 2 (PL 14.4)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
