Xerox WorkCentre 5022 Service Manual

06/2014
4-80
WC 5022/5024
Version 1.0
Repairs and Asdjustments

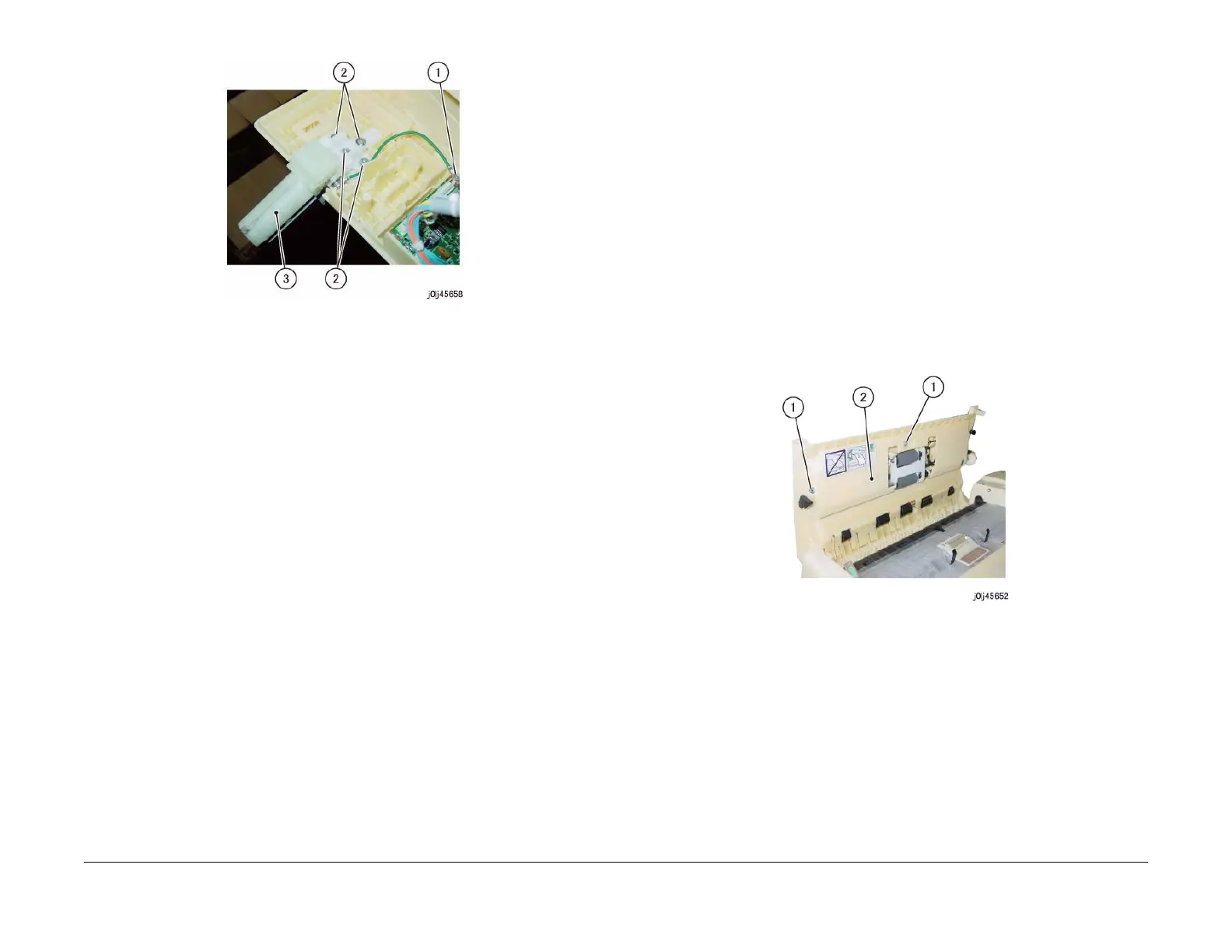

Figure 2 j0lj45658
Replacement
1. To install, carry out the removal steps in reverse order.
REP 56.5.1 DADF Feed/Nudger Roll
Parts List on PL 56.5
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The DADF Feed Roll, the DADF Nudger Roll, and the DADF Retard Pad must be
replaced at the same time.
1. Open the Upper Feeder.
2. Remove the Upper Feeder Chute. (Figure 1)
a. Remove the screw (x2).
b. Remove the Upper Feeder Chute.
Figure 1 j0lj45652
3. Remove the Feed Roll Nudger Roll Assembly. (Figure 2)
a. Remove the KL-Clip.
b. Move the bearing in the direction of the arrow.
c. Remove the Feed Roll Nudger Roll Assembly.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
