Xerox WorkCentre 5022 Service Manual

06/2014
5-30
WC 5022/5024
PL 11.1
Version 1.0
Parts List

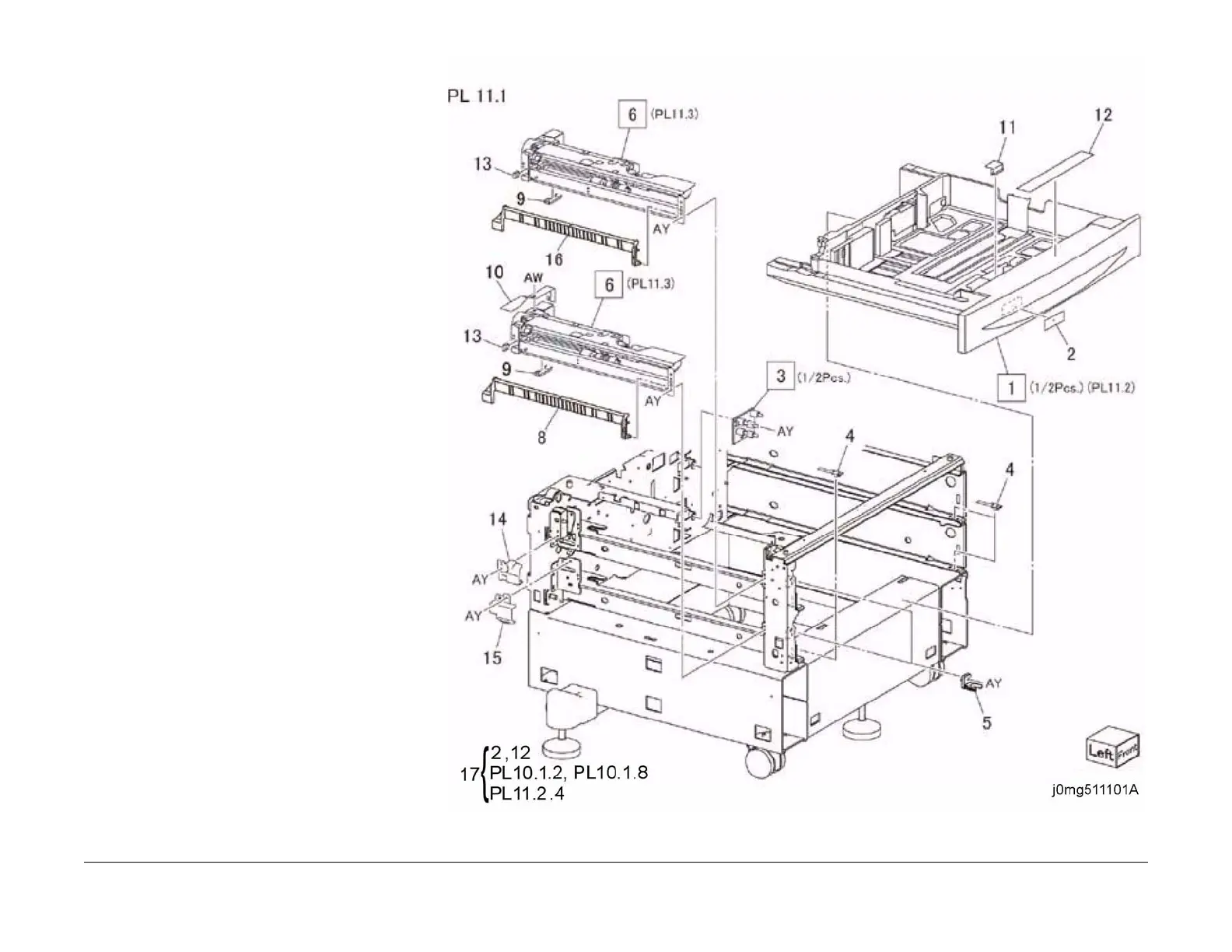

PL 11.1 Tray 3/4, Feeder
Item Part Description
1 050K64424 Tray 3/4 (PL 11.2)
2 – Label (No.3), Label (No.4) (P/O
Item 17)
3 110K11680 Tray 3/4 Paper Size Switch
4 014E51110 Tray Spacer
5 003E61510 Tray Stopper
6 059K79621 Tray 3 Feeder (PL 11.3) (REP
11.1.1), Tray 4 Feeder (PL 11.3)
(REP 11.1.2)
8 054E22622 Feed Out Chute
9 802E54672 Sensor Cover
10 – Cover
11 014E59990 Slide Lock
12 – Label (instruction) (P/O Item 17)
13 – Holder
14 – Feeder Connector Cover
15 – Feeder Connector Cover
16 054K27520 Feed Out Chute
17 604K90810 Tray Label Kit

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
