Xerox WorkCentre 5022 Service Manual

06/2014
4-74
WC 5022/5024
Version 1.0
Repairs and Asdjustments
REP 56.2.2 DADF Rear Cover
Parts List on PL 56.2
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.

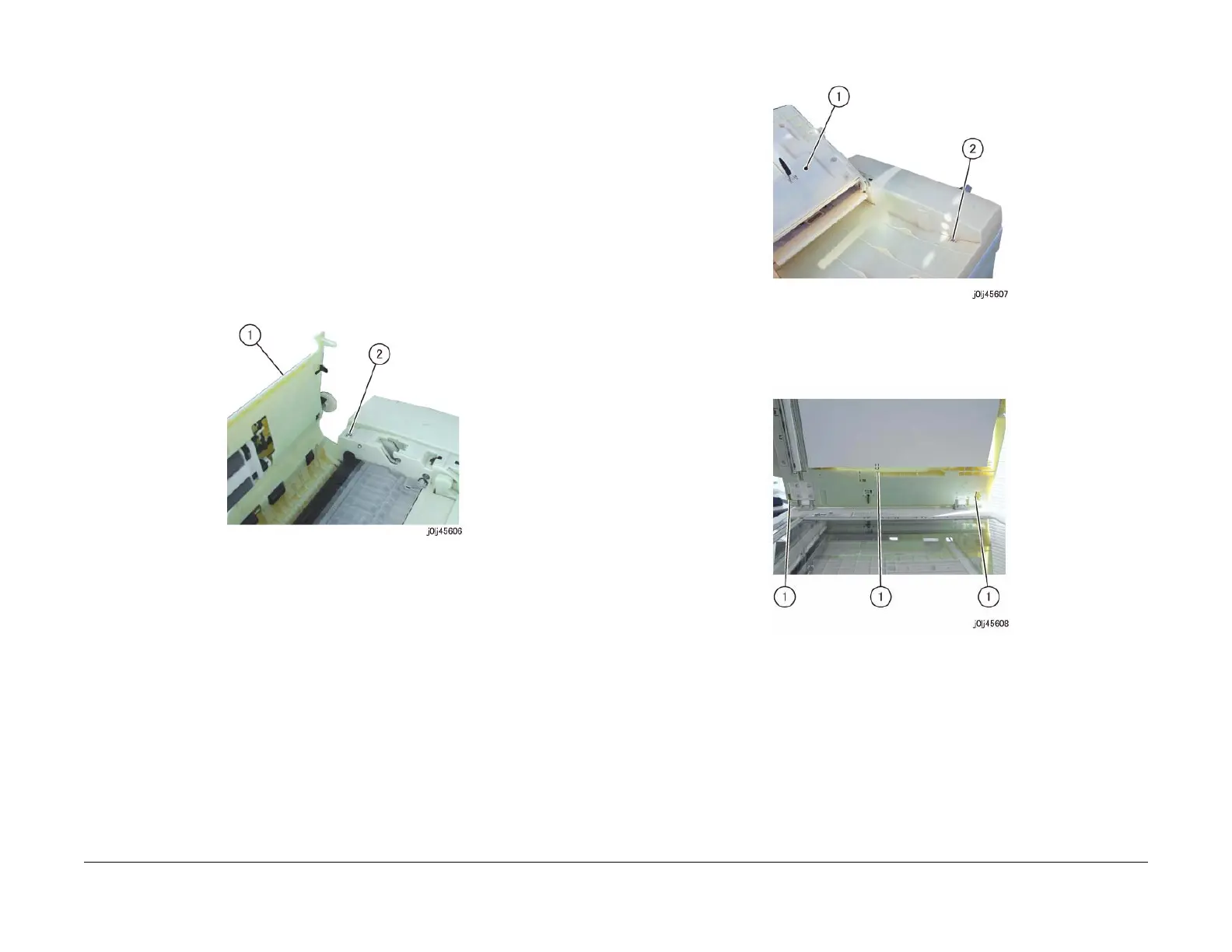

1. Remove the screws that secure the DADF Rear Cover. (Figure 1)
a. Open the Upper Feeder.
b. Remove the Tapping Screw.
Figure 1 j0lj45606
2. Remove the screws that secure the DADF Rear Cover. (Figure 2)
a. Open the Document Tray.
b. Remove the Tapping Screw.
Figure 2 j0lj45607
3. Release the hook (x3) of the DADF Rear Cover. (Figure 3)
a. Release the hook (x3).
Figure 3 j0lj45608
4. Remove the DADF Rear Cover. (Figure 4)
a. Remove the DADF Rear Cover in the direction of the arrow.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
