Xerox WorkCentre 5022 Service Manual

06/2014
4-7
WC 5022/5024
Repairs and Asdjustments
Version 1.0
REP 1.3.2 IIT Carriage Belt
Parts List on PL 1.9
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Platen Cover or the DADF. (REP 56.1.1)
2. Remove the IIT Top Cover. (REP 1.2.1)
3. Move the IIT Carriage to the opening of the Frame. (Figure 1)
a. Rotate the gear in the direction of the arrow.
b. Move the IIT Carriage to the opening (Arrow A) of the Frame.

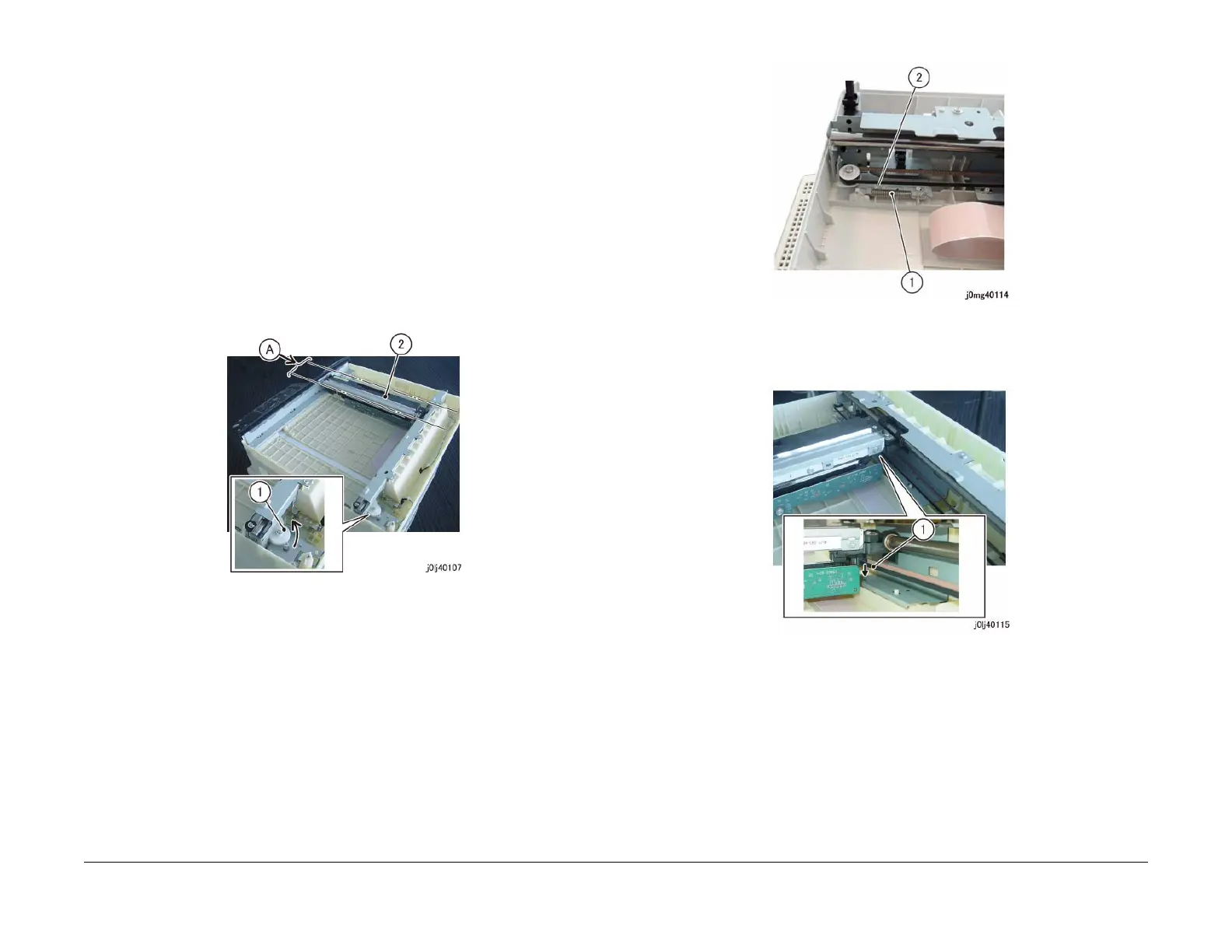

Figure 1 j0lj40107
4. Relax the tension of the IIT Carriage Belt. (Figure 2)
a. Remove the spring.
b. Loosen the screw.
Figure 2 j0mg40114
5. Remove the IIT Carriage Belt from the IIT Carriage. (Figure 3)
a. Remove the IIT Carriage Belt in the direction of the arrow.
Figure 3 j0lj40115
6. Remove the IIT Carriage Belt. (Figure 4)
a. Remove the IIT Carriage Belt from the pulley (x2).
