06/2014
4-79
WC 5022/5024
Repairs and Asdjustments
Version 1.0
REP 56.3.1 Left Counter Balance
Parts List on PL 56.3
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF. (REP 56.1.1)
2. Turn the DADF upside down.

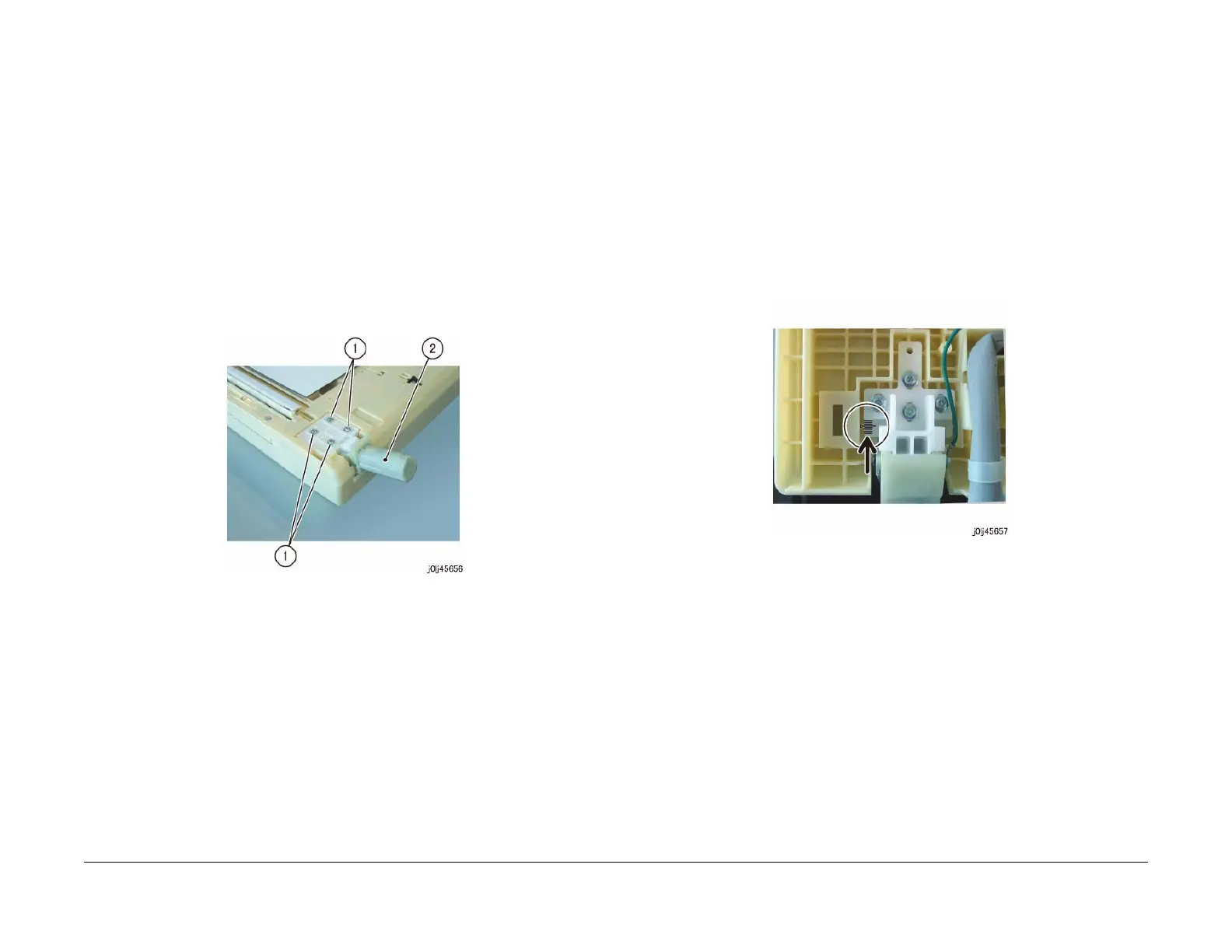

3. Remove the Left Counter Balance. (Figure 1)
a. Remove the Tapping Screw (x4).
b. Remove the Left Counter Balance.
Figure 1 j0lj45656
Replacement
1. To install, carry out the removal steps in reverse order.
REP 56.3.2 Right Counter Balance
Parts List on PL 56.3
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Rear Cover. (REP 56.2.2)
2. Remove the DADF. (REP 56.1.1)
3. Record the position of the scale for the Right Counter Balance. (Figure 1)
Figure 1 j0lj45657
4. Remove the Right Counter Balance. (Figure 2)
a. Remove the Tapping Screws that secure the Ground Wire.
b. Remove the Tapping Screw (x4).
c. Remove the Right Counter Balance.
To Next Page
