Xerox WorkCentre 5022 Service Manual

06/2014
4-12
WC 5022/5024
Version 1.0
Repairs and Asdjustments
REP 1.10.1 LCD Display
Parts List on PL 1.6
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Open the Front Toner Cover.
2. Remove the Fusing Unit Cover. (Figure 1)
a. Remove the screw.
b. Remove the Fusing Unit Cover.

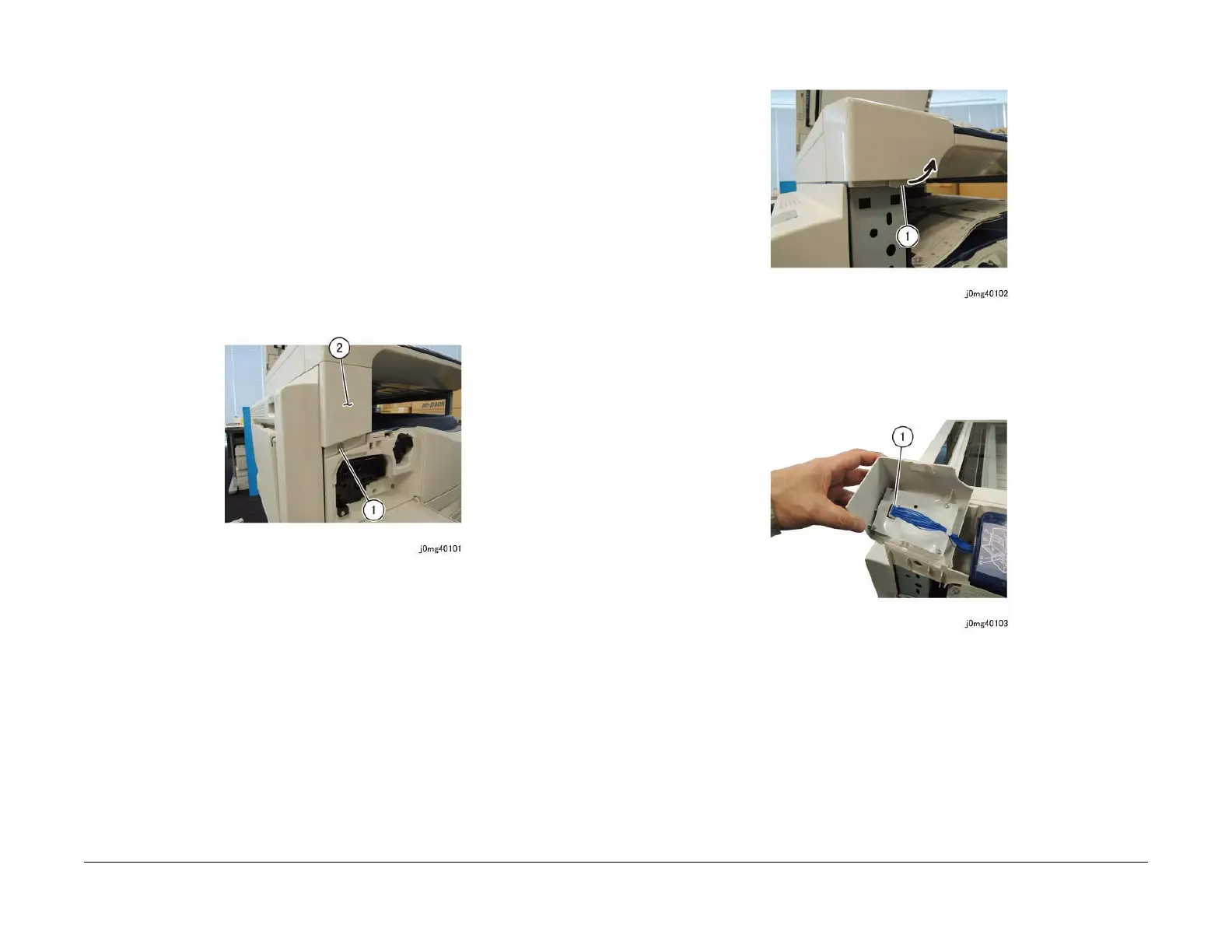

Figure 1 j0mg40101
3. Remove the Clip Cover or One Touch Panel. (Figure 2)
a. Press the tab in the direction of the arrow to release the hook behind the tab and
remove the Clip Cover or One Touch Panel.
Figure 2 j0mg40102
4. [One Touch Panel]: Disconnect the connector of the One Touch Panel. (Figure 3)
a. Disconnect the connector.
Figure 3 j0mg40103
5. Remove the Control Panel. (Figure 4)
a. Open the Control Panel in the direction of the arrow.
