Xerox WorkCentre 5022 Service Manual

06/2014
5-16
WC 5022/5024
PL 6.1
Version 1.0
Parts List

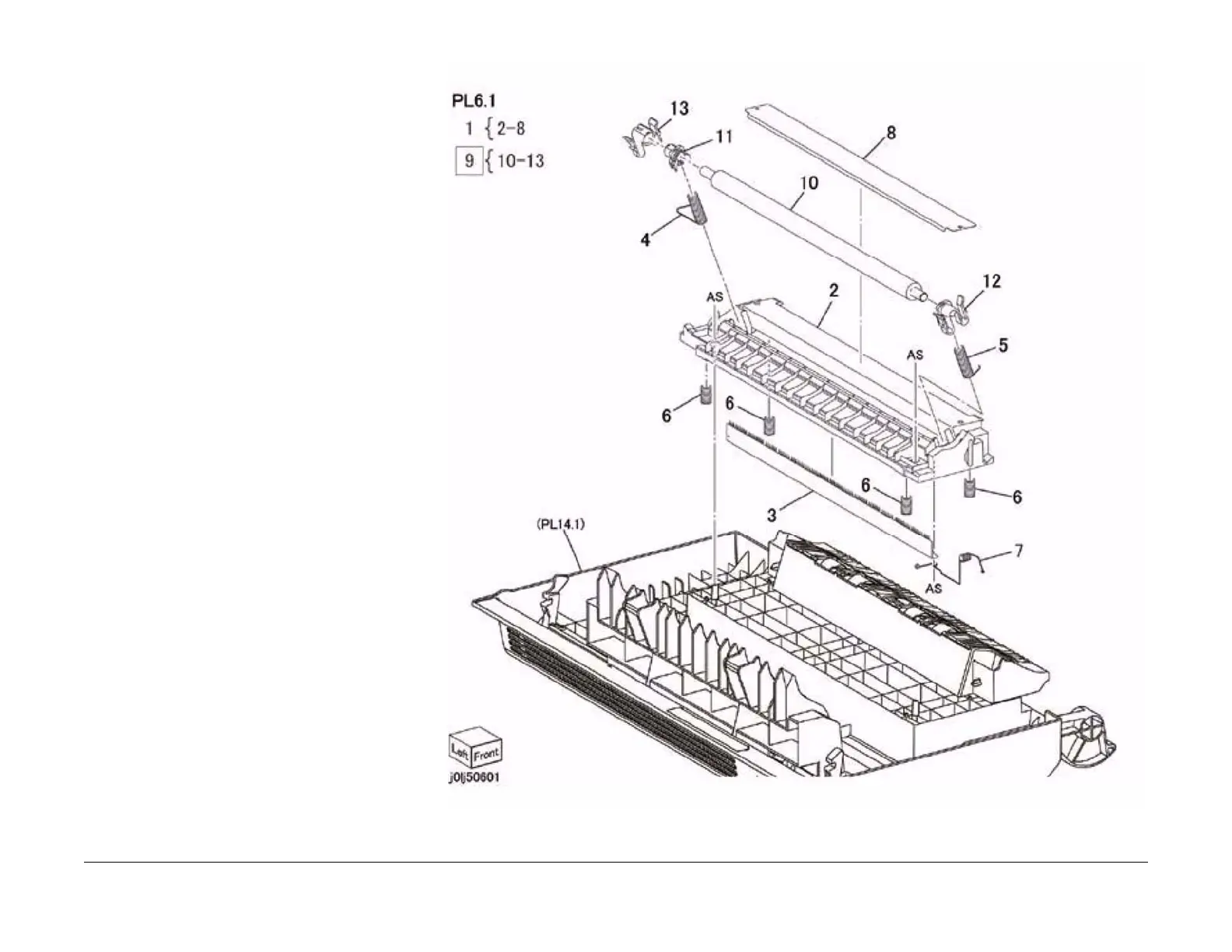

PL 6.1 Transfer
Item Part Description
1 054K48391 BTR Chute (Item 2-8)
2 – BTR Chute (P/O Item 1)
3 – DTS Eliminator (P/O Item 1)
4 809E99862 BTR Spring (Rear)
5 809E99871 BTR Spring (Front)
6 – Float Spring (P/O Item 1)
7 – DTS Conductor (P/O Item 1)
8 – Film Chute (P/O Item 1)
9 059K79560 BTR Roll Assembly (REP 6.1.1)
10 – BTR Roll
11 – BTR Bearing (Rear)
12 – BTR Bearing (Front)
13 – BTR Lever

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
