Xerox WorkCentre 5022 Service Manual

06/2014
5-9
WC 5022/5024
PL 1.6
Parts List
Version 1.0

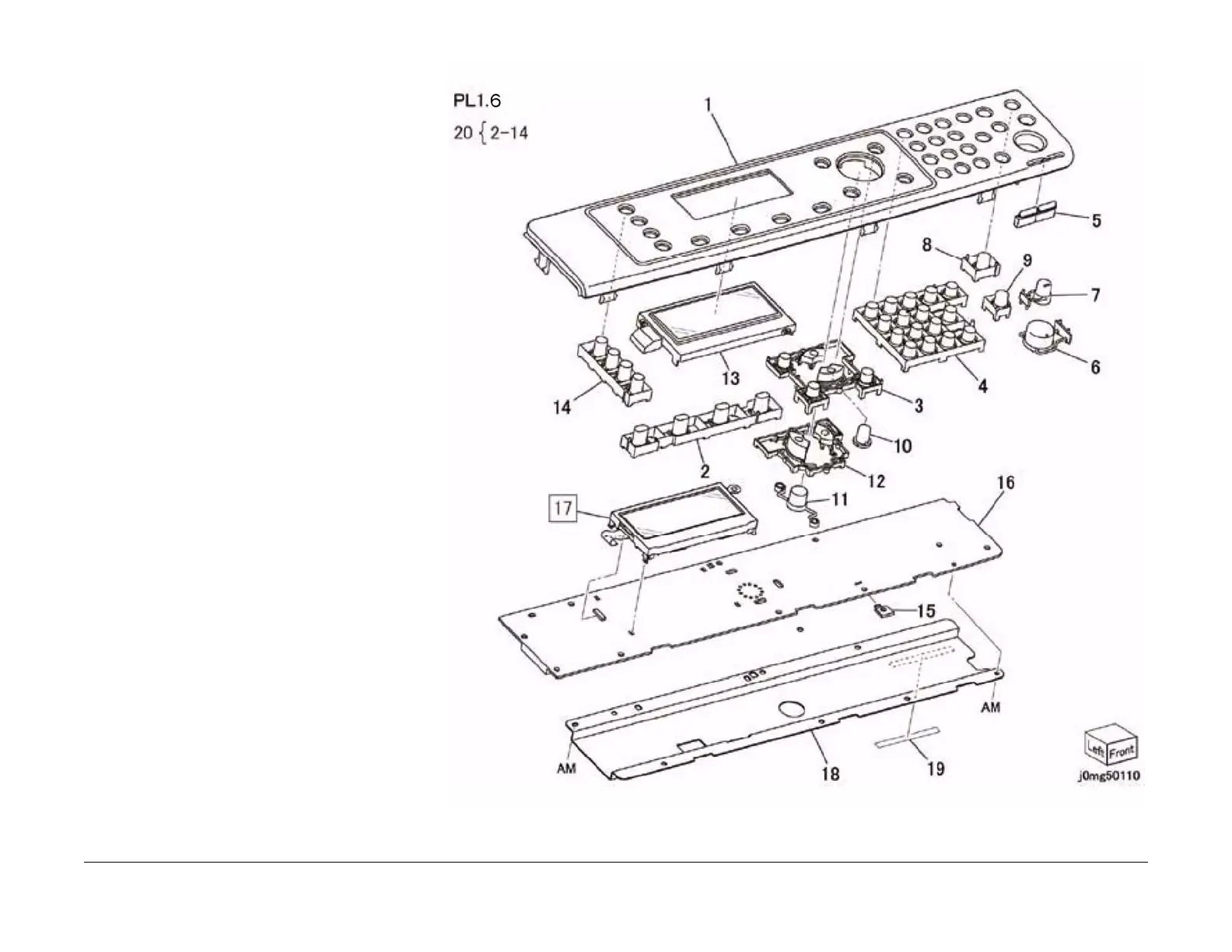

PL 1.6 Control Panel
Item Part Description
1 848K91750 Control Panel
2 – Service Key (P/O Item 20)
3 – Up/Down Key (P/O Item 20)
4 – Sixteen Key (P/O Item 20)
5 – LED Key (P/O Item 20)
6 803E16660 Start Key (P/O Item 20)
7 – Stop Key (P/O Item 20)
8 – Energy Saver Key (P/O Item 20)
9 – Reset Key (P/O Item 20)
10 – Login Key (P/O Item 20)
11 – OK Key (P/O Item 20)
12 – Right/Left Key (P/O Item 20)
13 – LCD Cover (P/O Item 20)
14 – Function Key (P/O Item 20)
15 803E17620 Terminal Earth
16 960K76800 UI PWB
17 123K09500 LCD Display (REP 1.10.1)
18 868E94540 UI Bracket
19 – UI Label
20 604K87280 Console Key Kit (Item 2-14)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
