Xerox WorkCentre 5022 Service Manual

06/2014
5-62
WC 5022/5024
PL 56.12
Version 1.0
Parts List

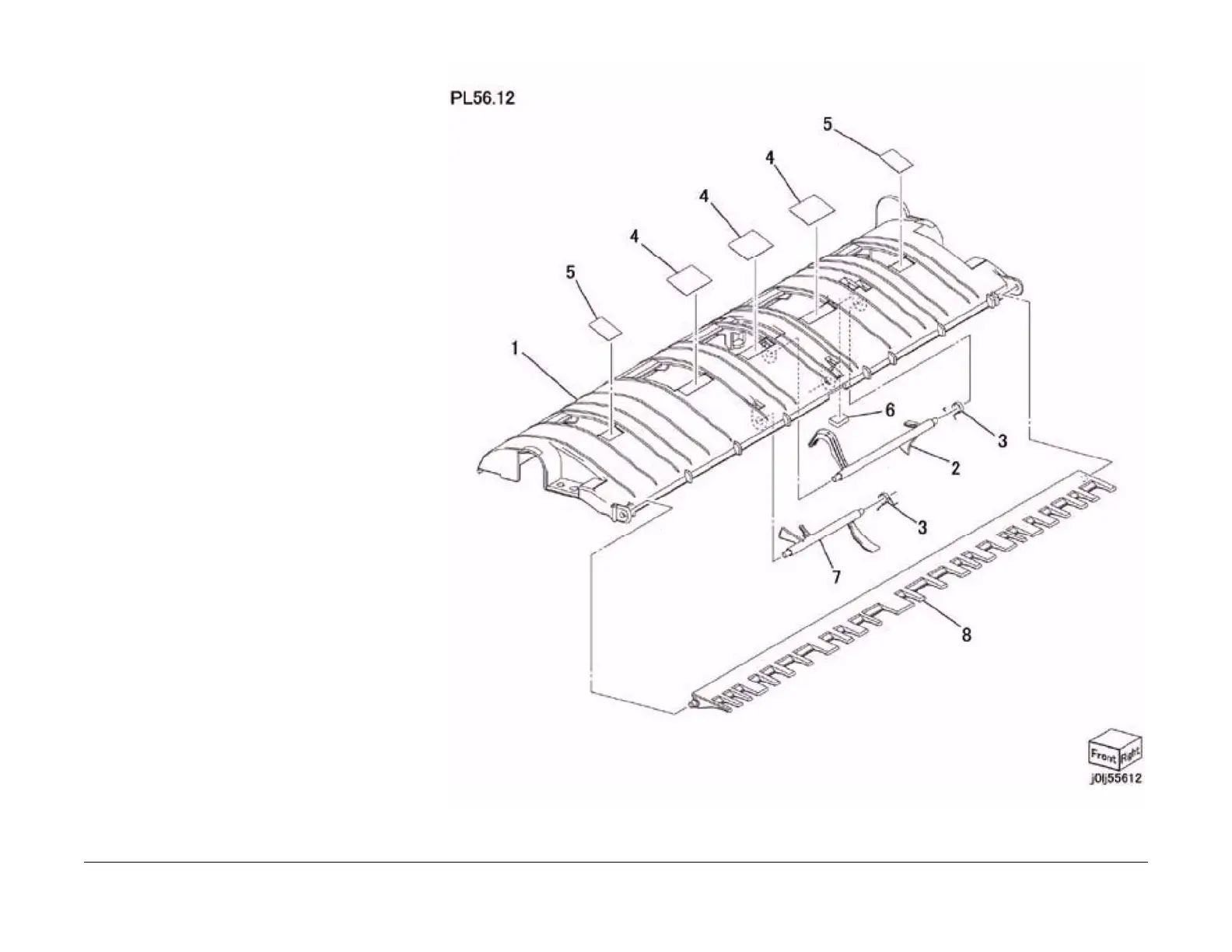

PL 56.12 Invert Chute
Item Part Description
1 – Invert Chute
2 120E34220 Actuator (Pre Regi.)
3 809E50792 Spring
4 035K82730 Seal (Long)
5 035K82740 Seal (Short)
6– Pad
7 120E34230 Actuator (Invert)
8 050E25313 Invert Gate

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
