Xerox WorkCentre 5022 Service Manual

06/2014
7-30
WC 5022/5024
2. Symbology
Version 1.0
Wiring Data
3. Signal Name

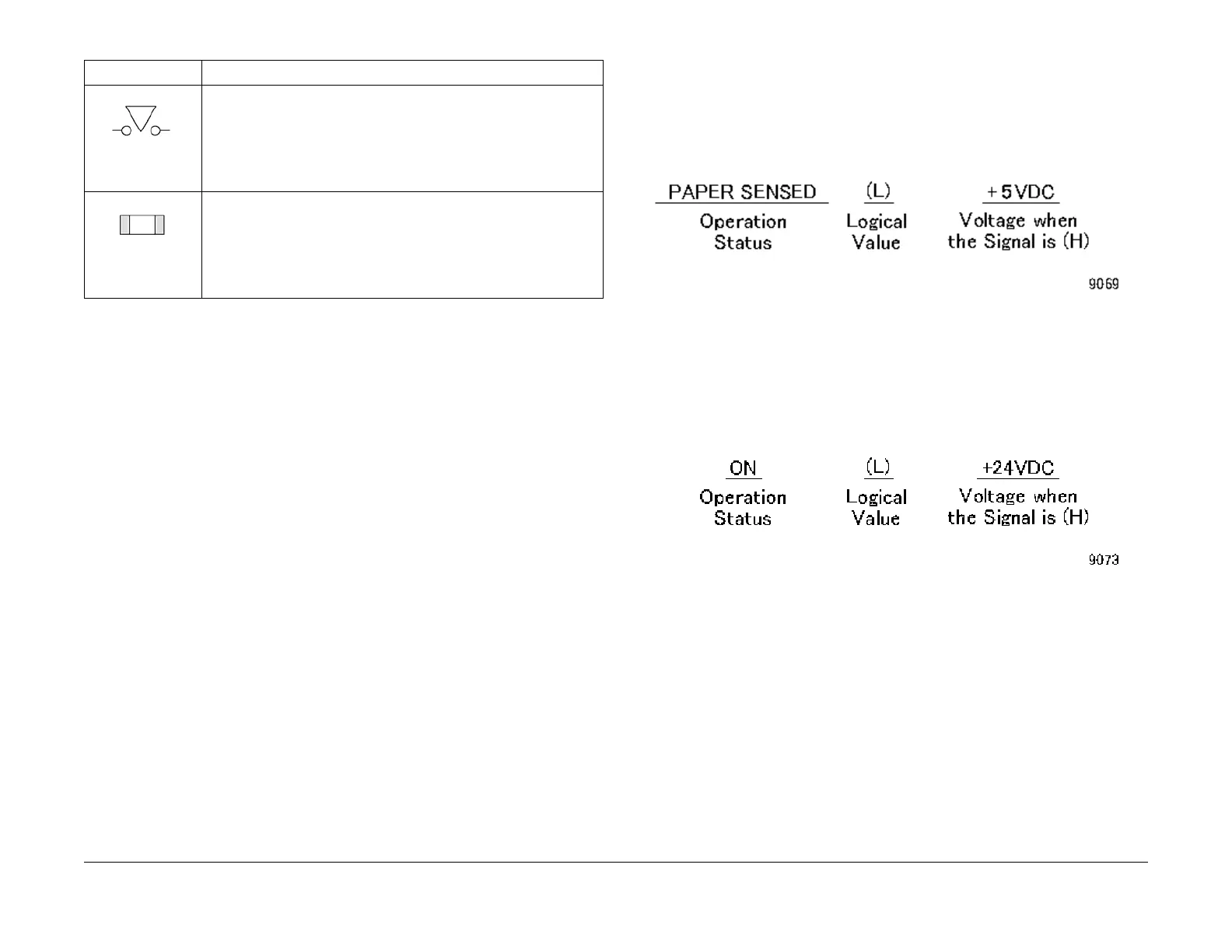

Signal Name Structure
• Input Component
Figure 1 9069
The example indicates that when paper is sensed, the signal level is (L) and that when
paper is not sensed, the signal level is (H) with the voltage +5VDC.
• Output Component
Figure 2 9073
The example indicates that when the component is ON, the signal level is (L) and that
when it is OFF, the signal level is (H) with the voltage +24VDC.
Figure 35 9076
This symbol shows the Cheater type of Interlock Switch.
Figure 36 9077
This symbol shows the Chip Fuse.
Table 1
Symbol Description

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
