Xerox WorkCentre 5022 Service Manual

06/2014
4-87
WC 5022/5024
Repairs and Asdjustments
Version 1.0
REP 56.9.1 Document Tray
Parts List on PL 56.9
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Front Cover. (REP 56.2.1)
2. Remove the DADF Rear Cover. (REP 56.2.2)
3. Remove the wire harness of the Document Tray from the Harness Guide. (Figure 1)
a. Disconnect the connector (x4).
• For the type that comes with DADF Open Sensor, disconnect the connector of
the DADF Open Sensor.
b. Remove the wire harness from the Harness Guide.

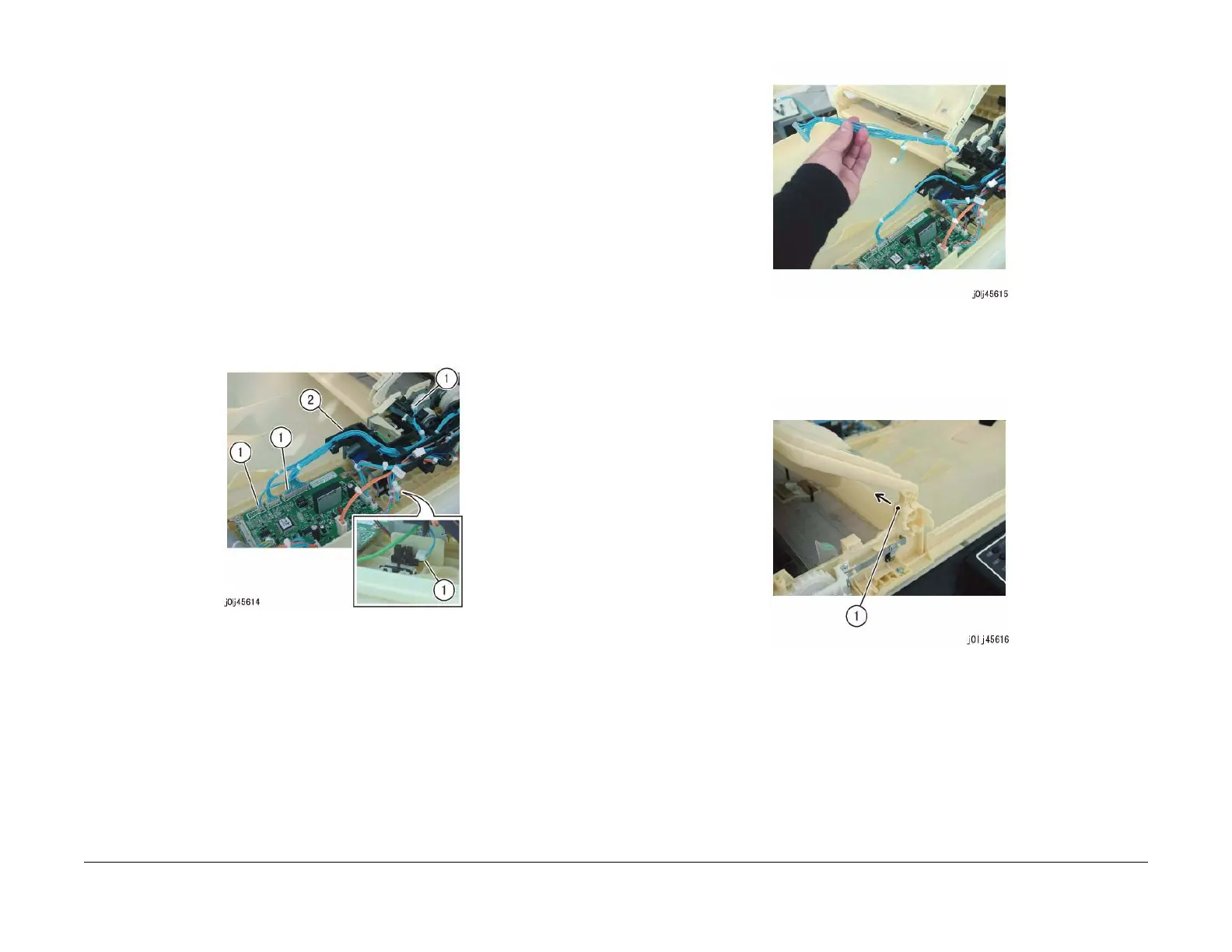

Figure 1 j0lj45614
Reference: This shows the removed wire harness of the Document Tray. (Figure 2)
Figure 2 j0lj45615
4. Remove the boss of the Document Tray at the front. (Figure 3)
a. Squeeze the boss of the Document Tray in the direction of the arrow and remove it
from the hole.
Figure 3 j0lj45616
5. Remove the wire harness through the hole at the rear. (Figure 4)
a. Remove the wire harness through the hole.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
