Xerox WorkCentre 5022 Service Manual

06/2014
5-21
WC 5022/5024
PL 9.1
Parts List
Version 1.0

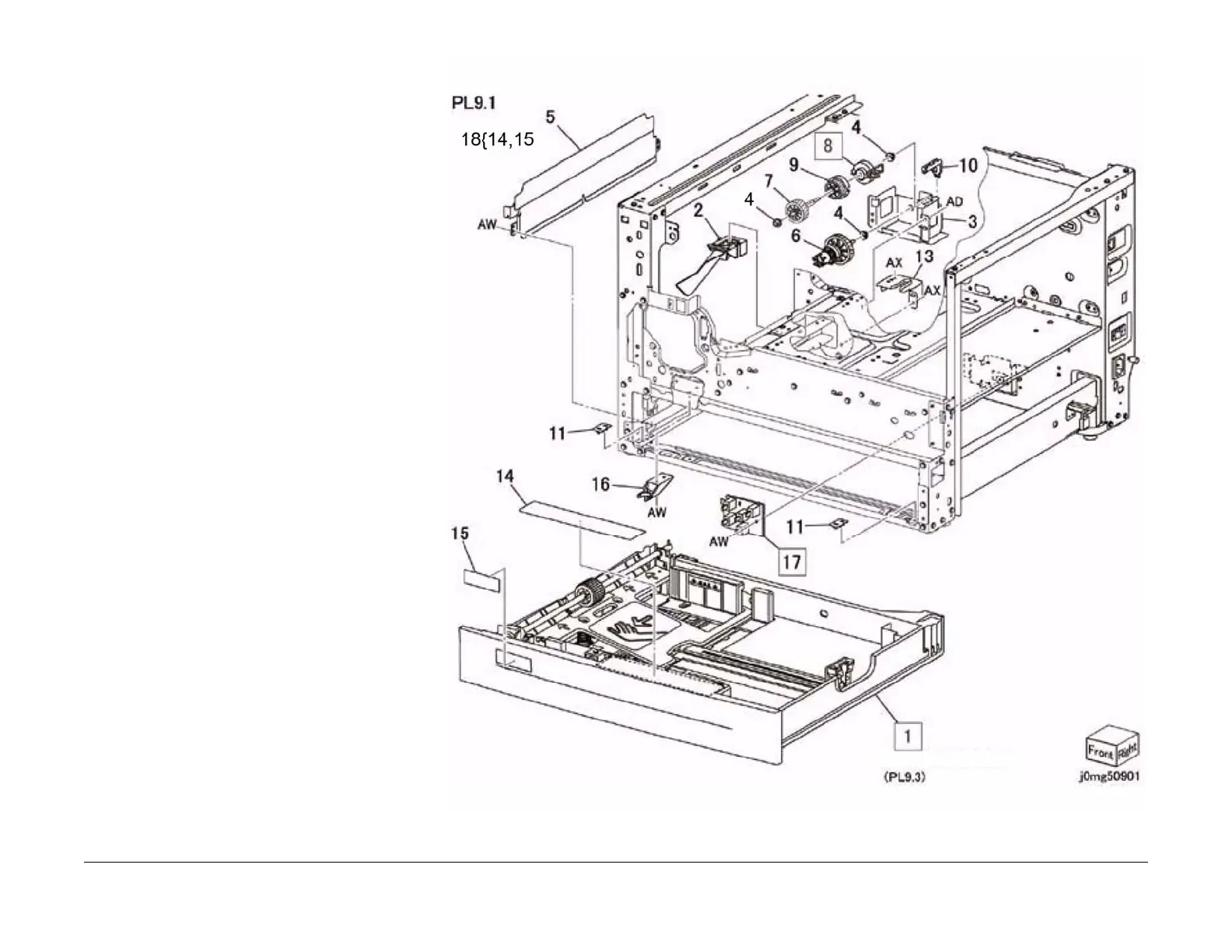

PL 9.1 Tray 1,Tray Drive
Item Part Description
1 050K70180 Tray 1 (PL 9.3) (REP 9.1.2)
2 848K85390 Tray 1 No Paper Sensor
3 – Drive Bracket
4 013E41230 Bearing
5 054K48460 L/H Chute
6 005K83551 Tray 1 Coupling and Gear
7 006K89940 Shaft and Gear
8 121K52340 Tray 1 Feed Clutch (REP 9.1.1)
9 807E40920 Helical Gear (28T)
10 032E40350 Harness Guide
11 014E45350 Spacer
13 – Tray Support Bracket
14 – Instruction Label
15 – Label (No.1)
16 003E60952 Tray Front Stopper
17 110K11680 Tray 1 Size Sensor (REP 9.1.3)
18 604K90800 Tray Label Kit (Item 14-15)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
