Xerox WorkCentre 5022 Service Manual

06/2014
5-17
WC 5022/5024
PL 7.1
Parts List
Version 1.0

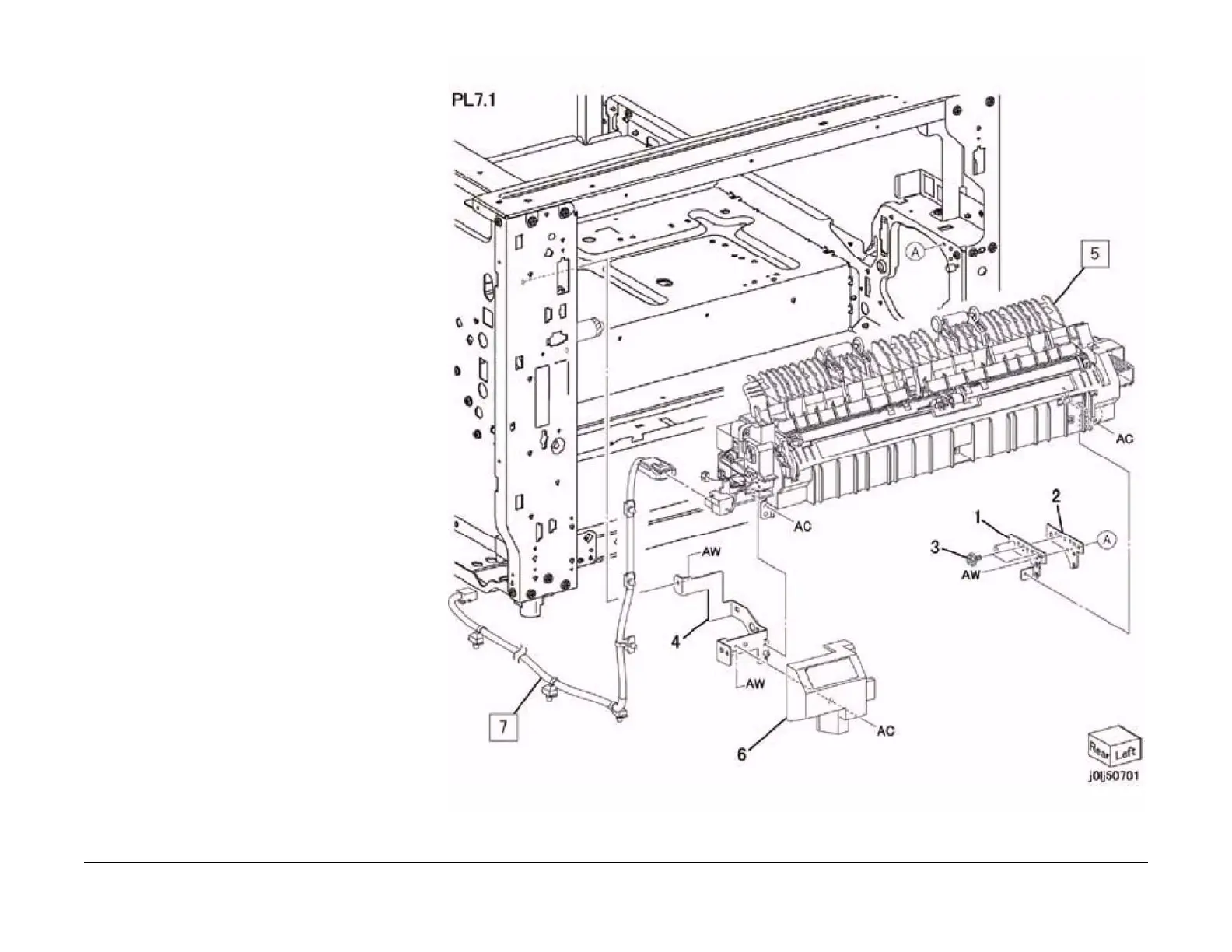

PL 7.1 Fusing Unit
Item Part Description
1 – Fusing Unit Stud Plate
2 – Adjust Plate
3 – Stud Screw
4 – Fusing Unit Rear Bracket
5 126K30556 220V-Fusing Unit (REP 7.1.1)
– 126K31733 120V-Fusing Unit (REP 7.1.1)
6 848E83411 Connector Cover
7 952K01221 220V-Fusing Unit Wire Harness
– 962K69061 120V-Fusing Unit Wire Harness

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
