Xerox WorkCentre 5022 Service Manual

06/2014
4-66
WC 5022/5024
Version 1.0
Repairs and Asdjustments

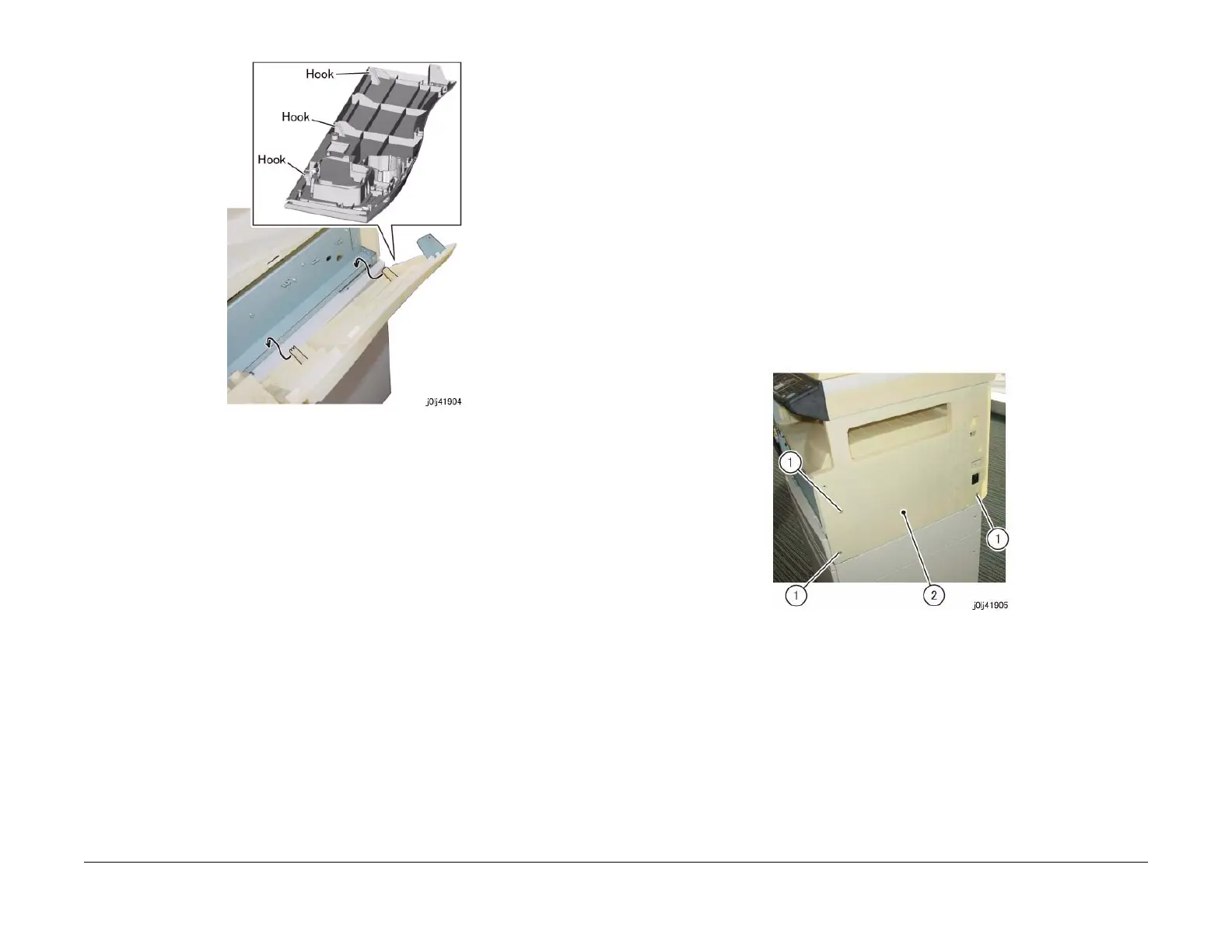

Figure 4 j0lj41904
REP 19.1.2 Top Cover
Parts List on PL 19.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Drum Cartridge. (REP 8.1.1)
2. Remove the Toner Cartridge. (PL 8.1)
3. Remove the Front Cover. (REP 19.1.1)
4. Pull out Tray 1 slightly.
5. Remove the Right Cover. (Figure 1)
a. Remove the screw (x3).
b. Remove the Right Cover.
Figure 1 j0lj41905
6. Remove the Top Cover. (Figure 2)
a. Remove the Top Cover.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
