Xerox WorkCentre 5022 Service Manual

06/2014
5-43
WC 5022/5024
PL 15.1
Parts List
Version 1.0

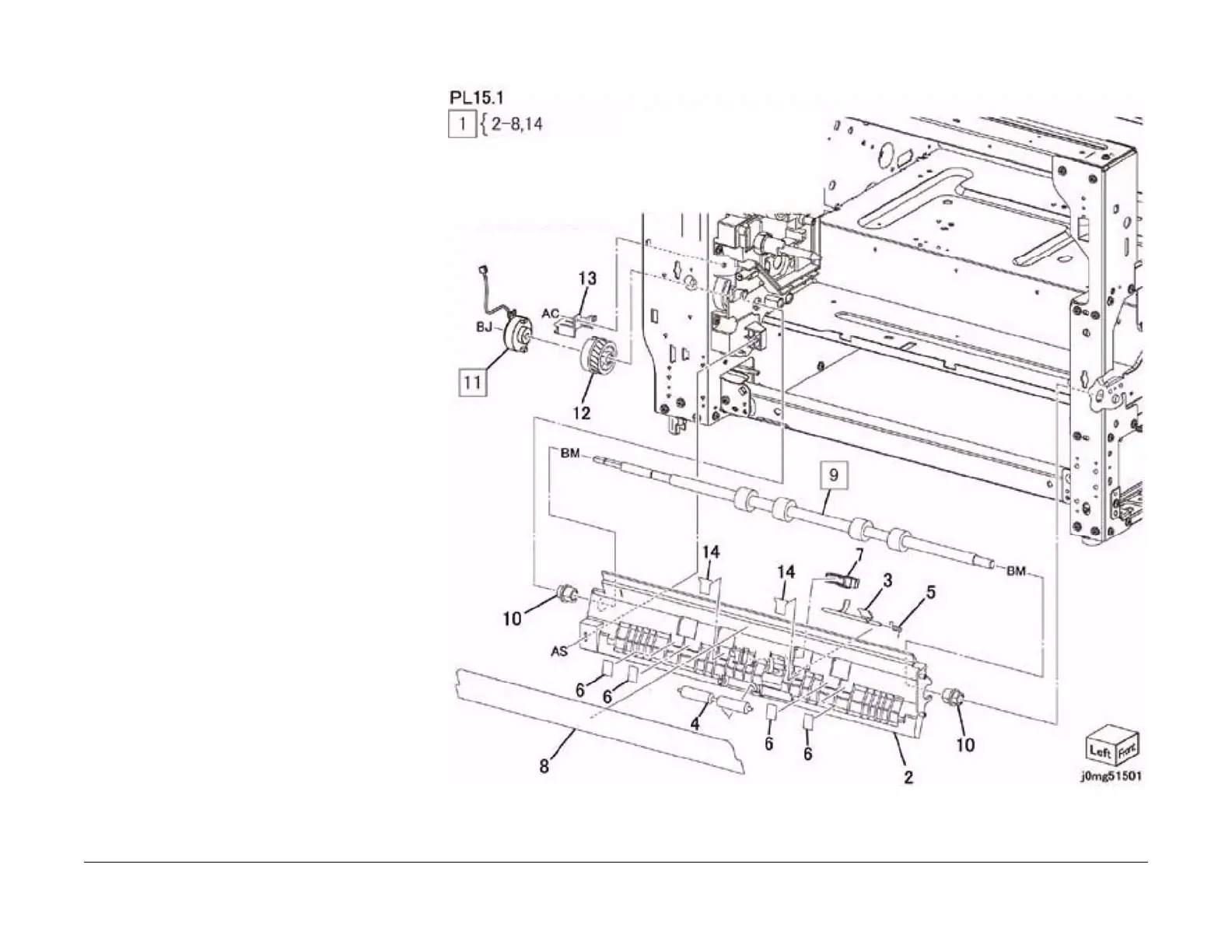

PL 15.1 Registration
Item Part Description
1 059K74901 Registration Chute (Item 2-8,14)
(REP 15.1.1)
2 – Registration Chute (P/O Item 1)
3 120E34050 Actuator
4 059E98590 Idler Roll
5 809E99570 Spring
6 – Paper Guide (P/O Item 1)
7 930W00123 Registration Sensor
8 – Film Chute (P/O Item 1)
9 059K74891 Registration Roll (REP 15.1.2)
10 013E40990 Bearing
11 121K52340 Registration Clutch
12 807E40940 Helical Gear
13 032E41320 Harness Guide
14 – Paper Guide C (P/O Item 1)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
