Xerox WorkCentre 5022 Service Manual

06/2014
5-38
WC 5022/5024
PL 13.2
Version 1.0
Parts List

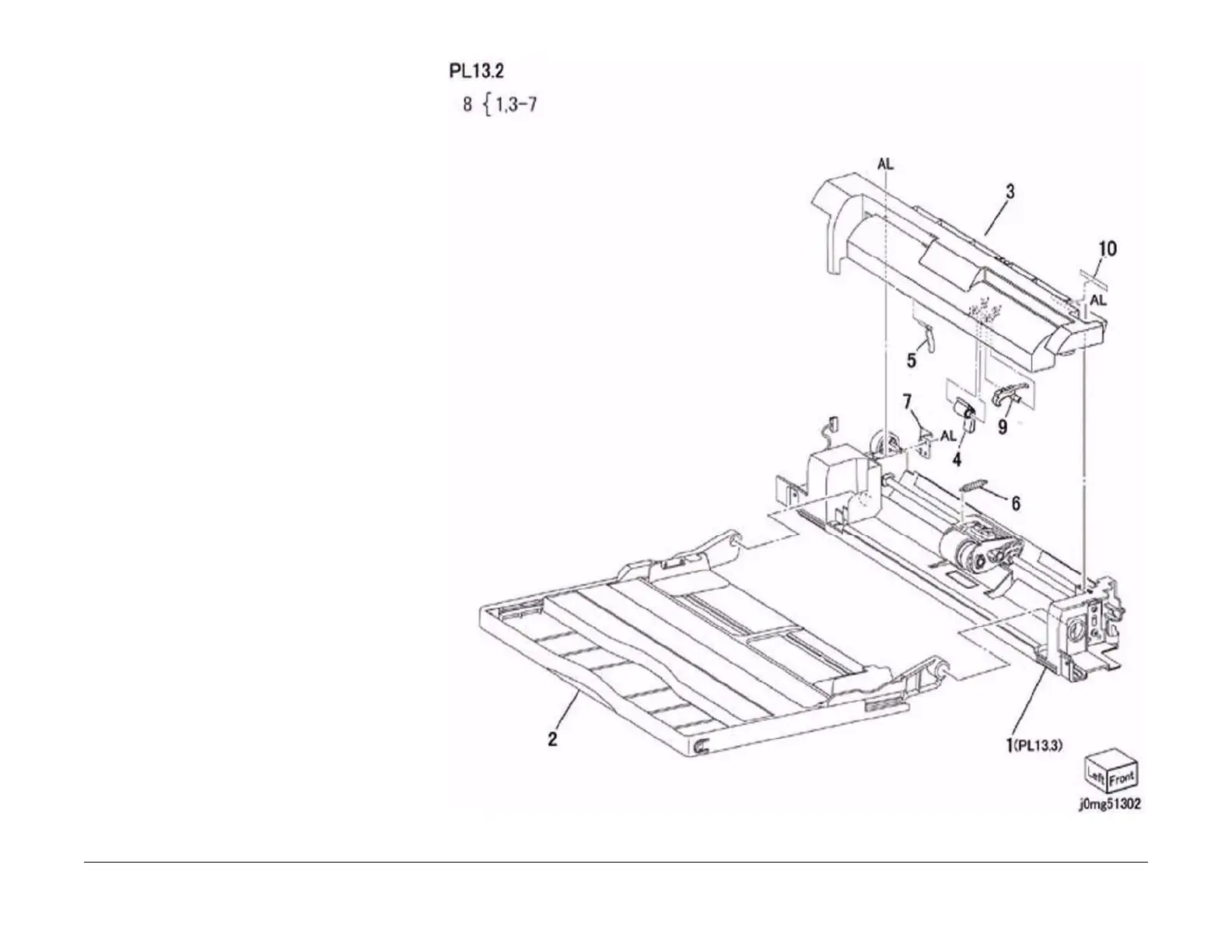

PL 13.2 MSI Component
Item Part Description
1 059K81950 MSI Lower Feeder (PL 13.3)
2 050K71130 MSI Tray
3 801E28470 MSI Top Cover
4 803E17021 Paper Stopper
5 120E34130 No Paper Actuator
6 899E01350 Spring
7 848E87781 Gear Cover
8 – MSI Feeder Kit (Item 1,3-7)
9 803E17031 Paper Stopper Lock
10 – Label (Barcode)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
