Xerox WorkCentre 5022 Service Manual

06/2014
4-75
WC 5022/5024
Repairs and Asdjustments
Version 1.0

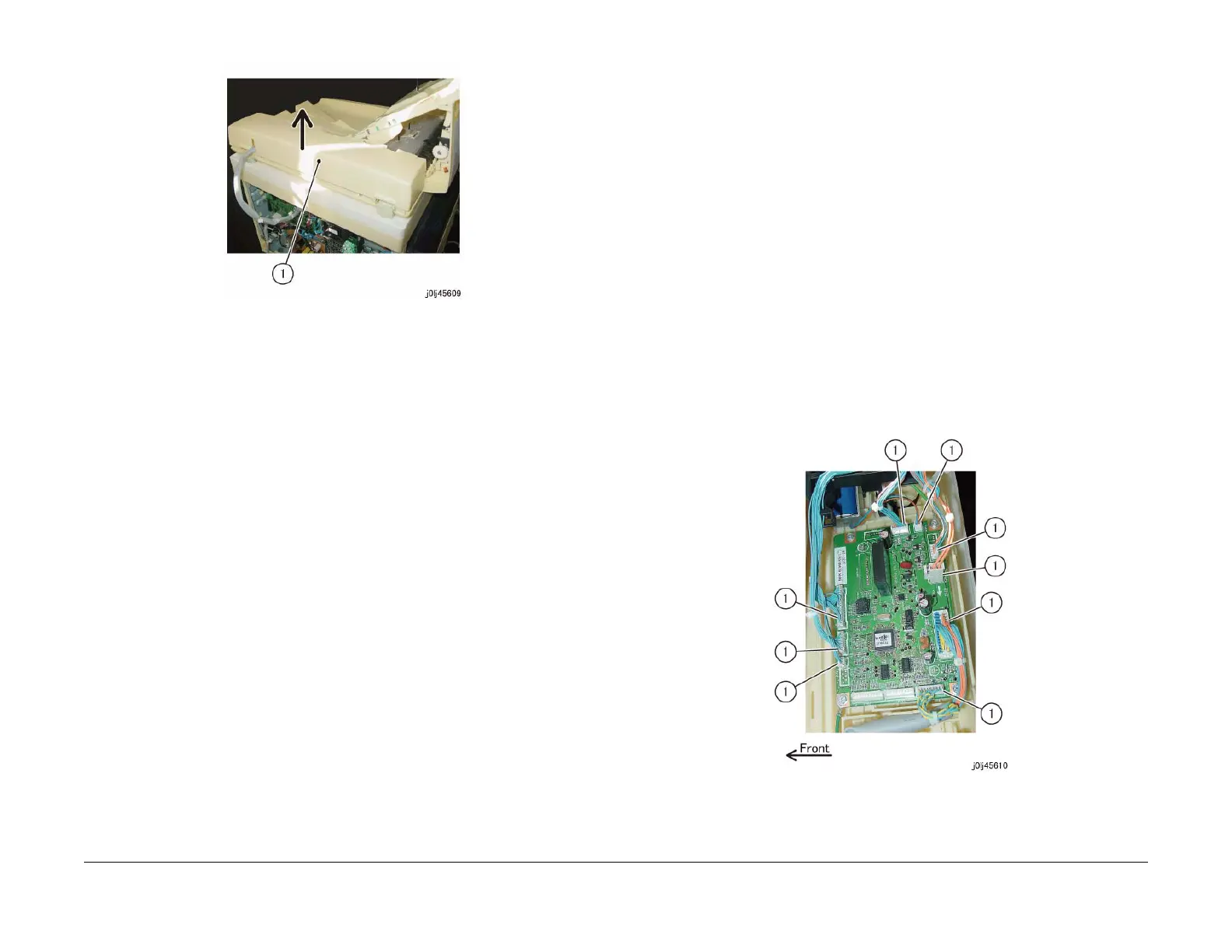

Figure 4 j0lj45609
Replacement
1. To install, carry out the removal steps in reverse order.
REP 56.2.3 DADF PWB
Parts List on PL 56.2
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
CAUTION
Static electricity may damage electrical parts.
Static electricity may damage electrical parts. Always wear a wrist band during servicing. If a
wrist band is not available, touch some metallic parts before servicing to discharge the static
electricity.
CAUTION
Do not get yourself hurt by a soldered portion on the back of the PWB.
1. Remove the DADF Rear Cover. (REP 56.2.2)
2. Disconnect the connector. (Figure 1)
a. Disconnect the connector (x9).
Figure 1 j0lj45610
3. Remove the DADF PWB. (Figure 2)
a. Remove the Tapping Screw (x2) and the Ground Wire (x2).

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
