Xerox WorkCentre 5022 Service Manual

06/2014
4-42
WC 5022/5024
Version 1.0
Repairs and Asdjustments

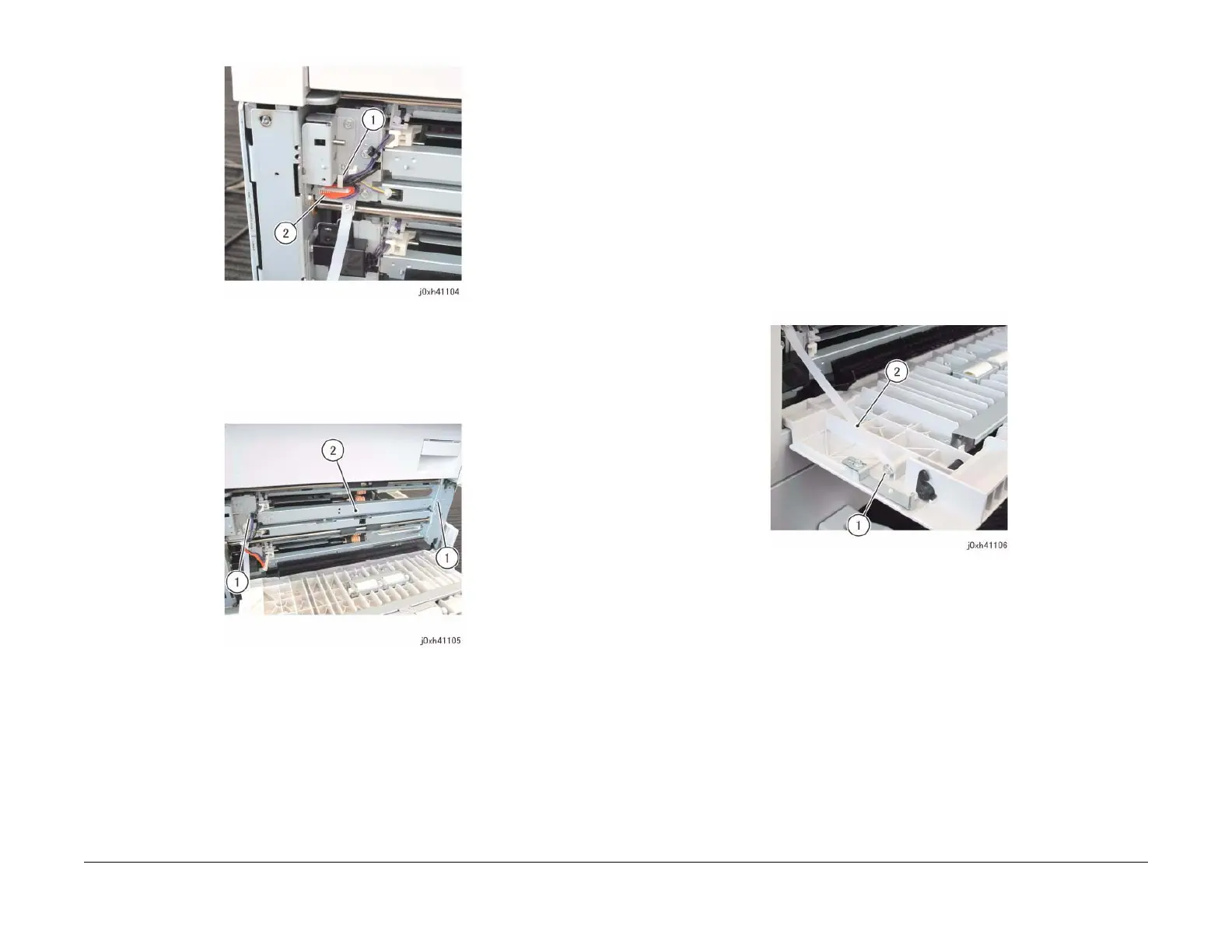

Figure 4 j0xh41104
6. Remove the Tray 3 Feeder. (Figure 5)
a. Remove the screw (x2).
b. Remove the Tray 3 Feeder.
Figure 5 j0xh41105
Replacement
1. To install, carry out the removal steps in reverse order.
2. After a replacement, enter the CE Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
• 'Chain Link: 950-808'
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].
REP 11.1.2 Tray 4 Feeder
Parts List on PL 11.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp turns OFF. Press the
<Job Status> button to check that there are no jobs in progress/waiting in the queue.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove Tray 4.
2. Open the Left Cover Assembly of the 2TM.
3. Remove the support. (Figure 1)
a. Remove the Tapping Screw.
b. Remove the support.
Figure 1 j0xh41106
4. Remove the Feed Out Chute and the Harness Cover. (Figure 2)
a. Remove the Feed Out Chute.
b. Remove the screw.
c. Remove the Harness Cover.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
