Xerox WorkCentre 5022 Service Manual

06/2014
5-14
WC 5022/5024
PL 3.2
Version 1.0
Parts List

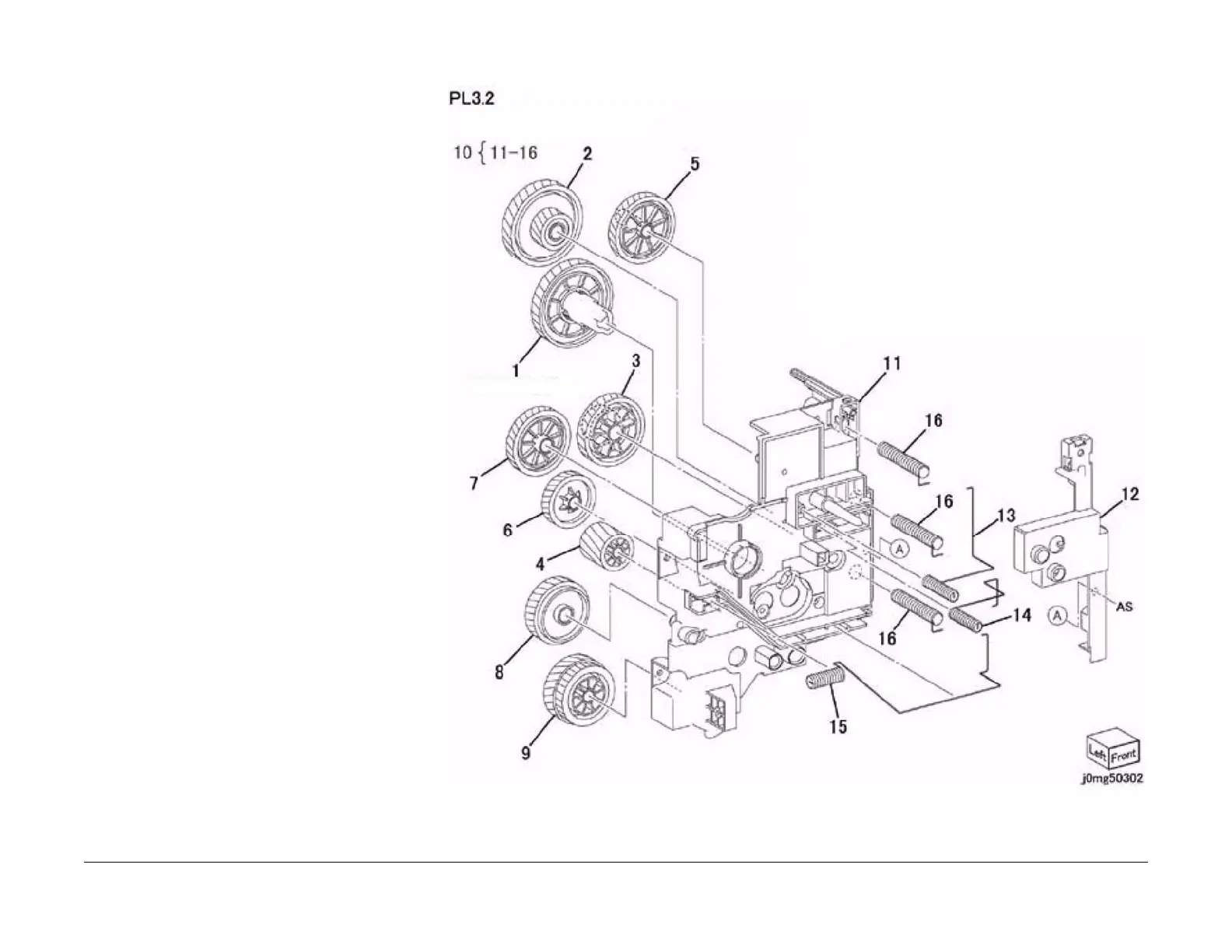

PL 3.2 Main Drive Housing
Item Part Description
1 005K83930 Drum Coupling and Gear Assembly
2 807E39180 Helical Gear (76/33T)
3 807E39200 Helical Gear (63/18T)
4 807E39230 Helical Gear (25T)
5 807E39250 Helical Gear (63T)
6 807E39220 Helical Gear (36T)
7 807E39210 Helical Gear (45T)
8 807E39240 Helical Gear (43T)
9 807E39580 Helical Gear (44/27T)
10 848K67531 Main Drive Housing (Item 11-16)
11 – Main Drive Housing (P/O Item 10)
12 848E84830 Conductor Cover
13 130E16130 BCR Conductor
14 130E16140 Deve. Conductor
15 130E16150 BTR Conductor
16 130E16160 HV Conductor

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
