Xerox WorkCentre 5022 Service Manual

06/2014
4-51
WC 5022/5024
Repairs and Asdjustments
Version 1.0

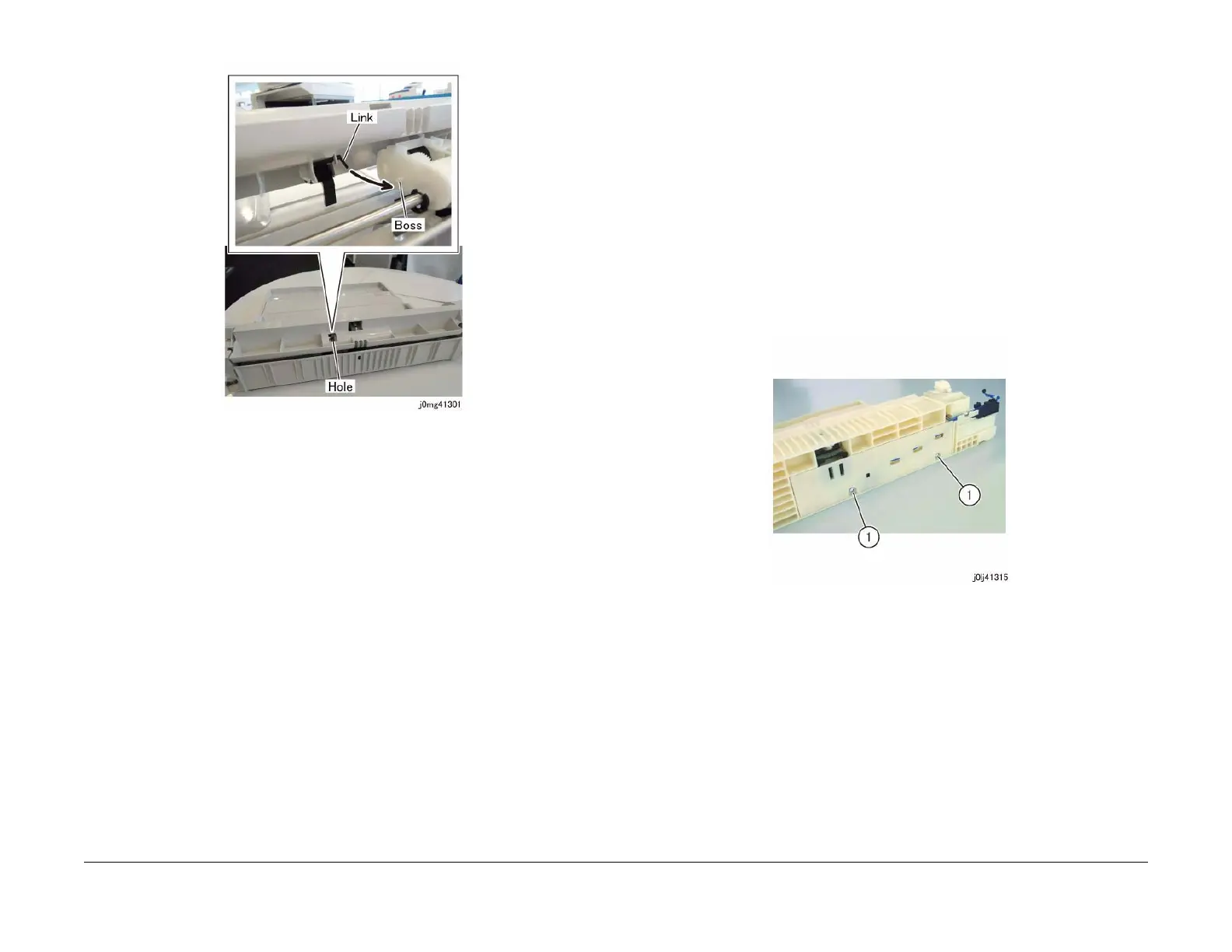

Figure 10 j0mg41301
4. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
"Chain Link : 950-802"
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].
REP 13.3.2 MSI Retard Pad
Parts List on PL 13.3
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The MSI Nudger Roll, the MSI Feed Roll, and the MSI Retard Pad must be replaced at
the same time.
1. Remove the MSI. (REP 13.1.1)
2. Remove the screws that secure the MSI Lower Cover at the bottom of the MSI. (Figure 1)
a. Remove the Tapping Screw (x2).
Figure 1 j0lj41315
3. Release the hook (x3) and release the boss (x3) from the installation holes to remove the
MSI Lower Cover.
(Figure 2)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
