Xerox WorkCentre 5022 Service Manual

06/2014
4-50
WC 5022/5024
Version 1.0
Repairs and Asdjustments

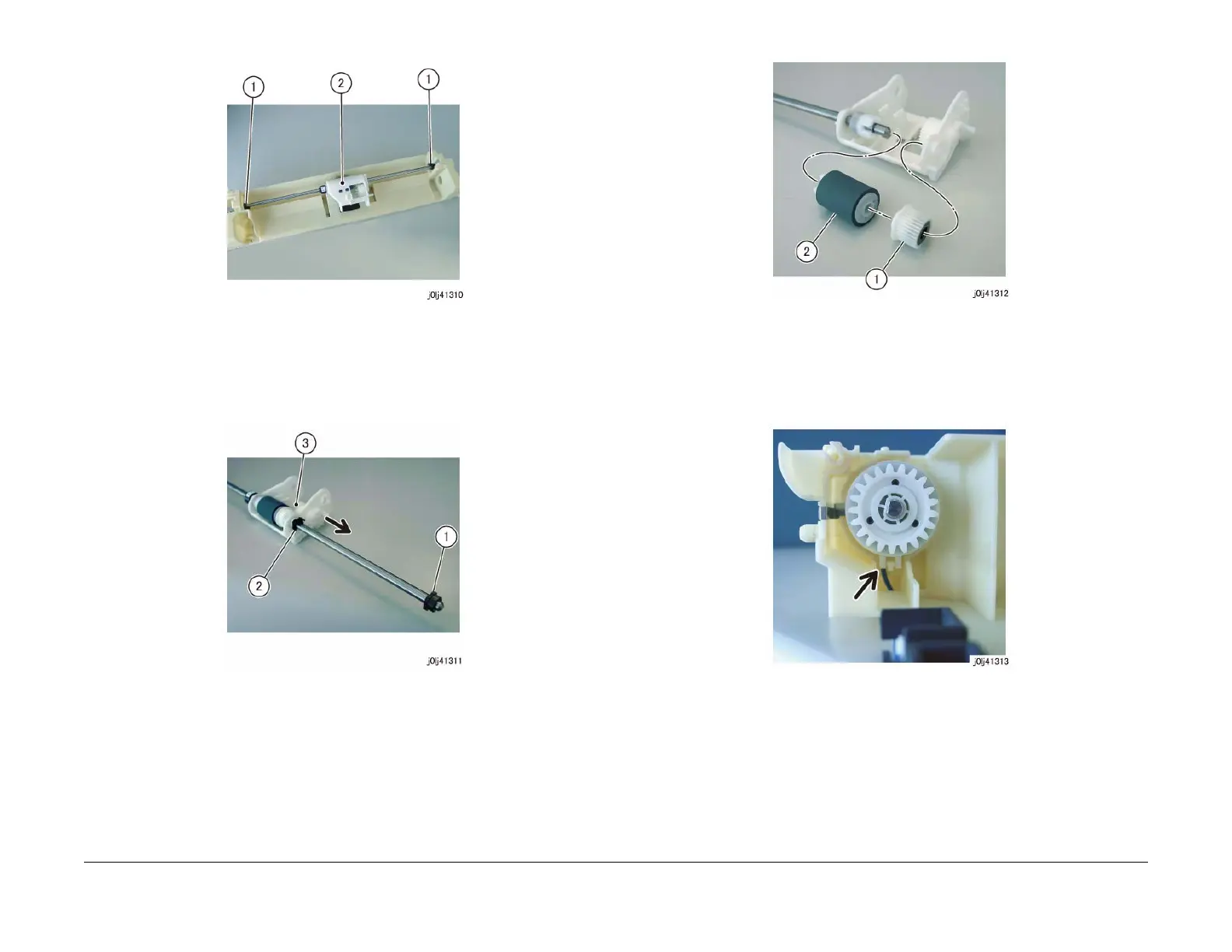

Figure 6 j0lj41310
8. Move the housing to the tip of the shaft. (Figure 7)
a. Remove the Bearing.
b. Remove the KL-Clip.
c. Move the housing in the direction of the arrow until it is at the tip of the shaft.
Figure 7 j0lj41311
9. Remove the MSI Feed Roll. (Figure 8)
a. Remove the gear.
b. Remove the MSI Feed Roll.
Figure 8 j0lj41312
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the MSI Feed Clutch, align the Cutout of the MSI Feed Clutch to the Tab.
(Figure 9)
Figure 9 j0lj41313
3. When installing the MSI Top Cover, store the Link of the Paper Stopper Lock underneath
the Boss of the MSI Feed Roll Housing. (Figure 10)
• After installing the MSI Top Cover, check from the hole of the MSI Top Cover to make
sure that the Link is underneath the Boss..

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
