Xerox WorkCentre 5022 Service Manual

06/2014
4-49
WC 5022/5024
Repairs and Asdjustments
Version 1.0
Figure 2 j0lj41306

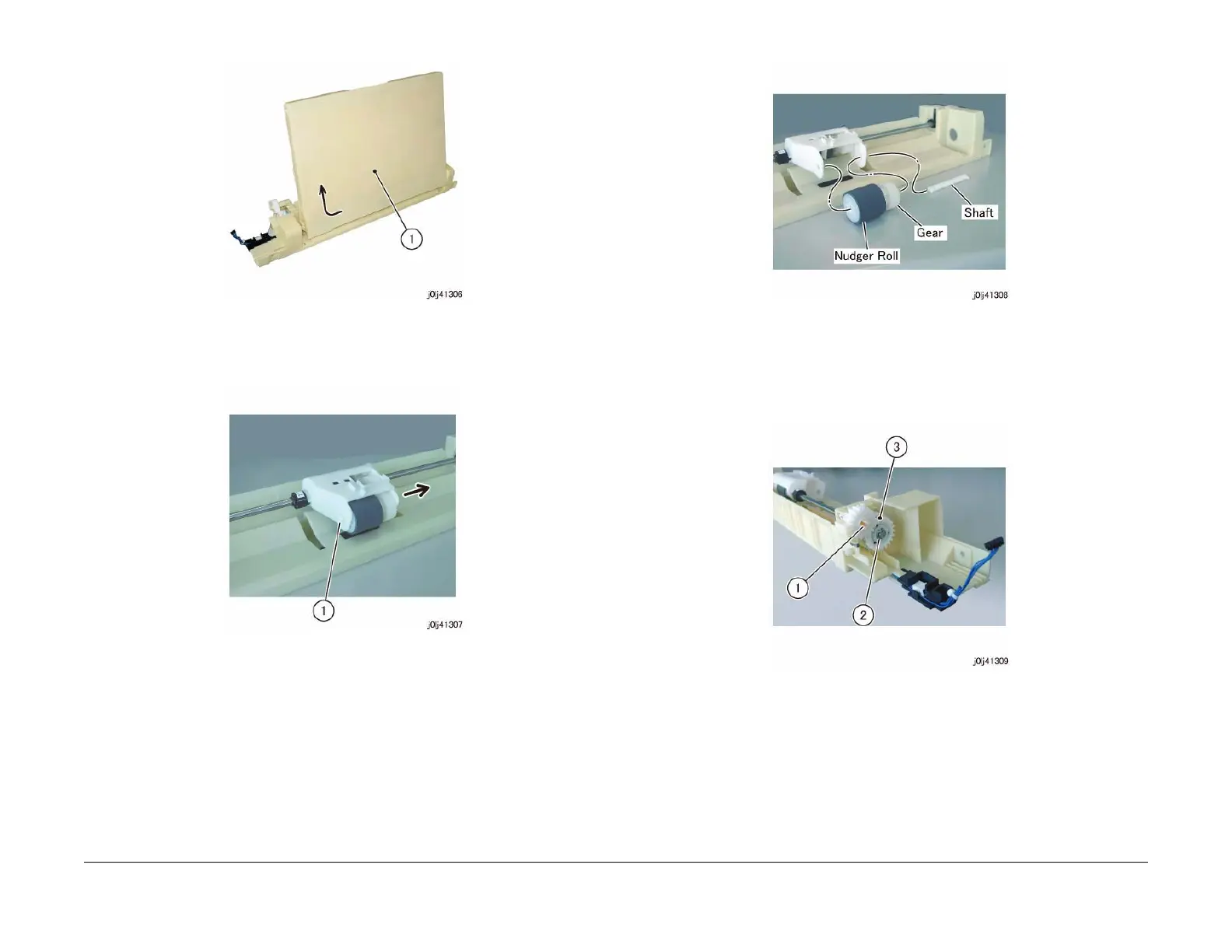

4. Remove the shaft of the MSI Nudger Roll. (Figure 3)
a. Release the hook of the shaft and remove the shaft in the direction of the arrow.
Figure 3 j0lj41307
5. Remove the MSI Nudger Roll. (Figure 4)
Figure 4 j0lj41308
6. Shift the MSI Feed Clutch from the shaft. (Figure 5)
a. Release the hook to remove the gear.
b. Remove the E-Clip.
c. Shift the MSI Feed Clutch from the shaft.
Figure 5 j0lj41309
7. Remove the MSI Feed Roll Assembly. (Figure 6)
a. Remove the KL-Clip (x2).
b. Remove the MSI Feed Roll Assembly.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
