06/2014
5-7
WC 5022/5024
PL 1.4
Parts List
Version 1.0

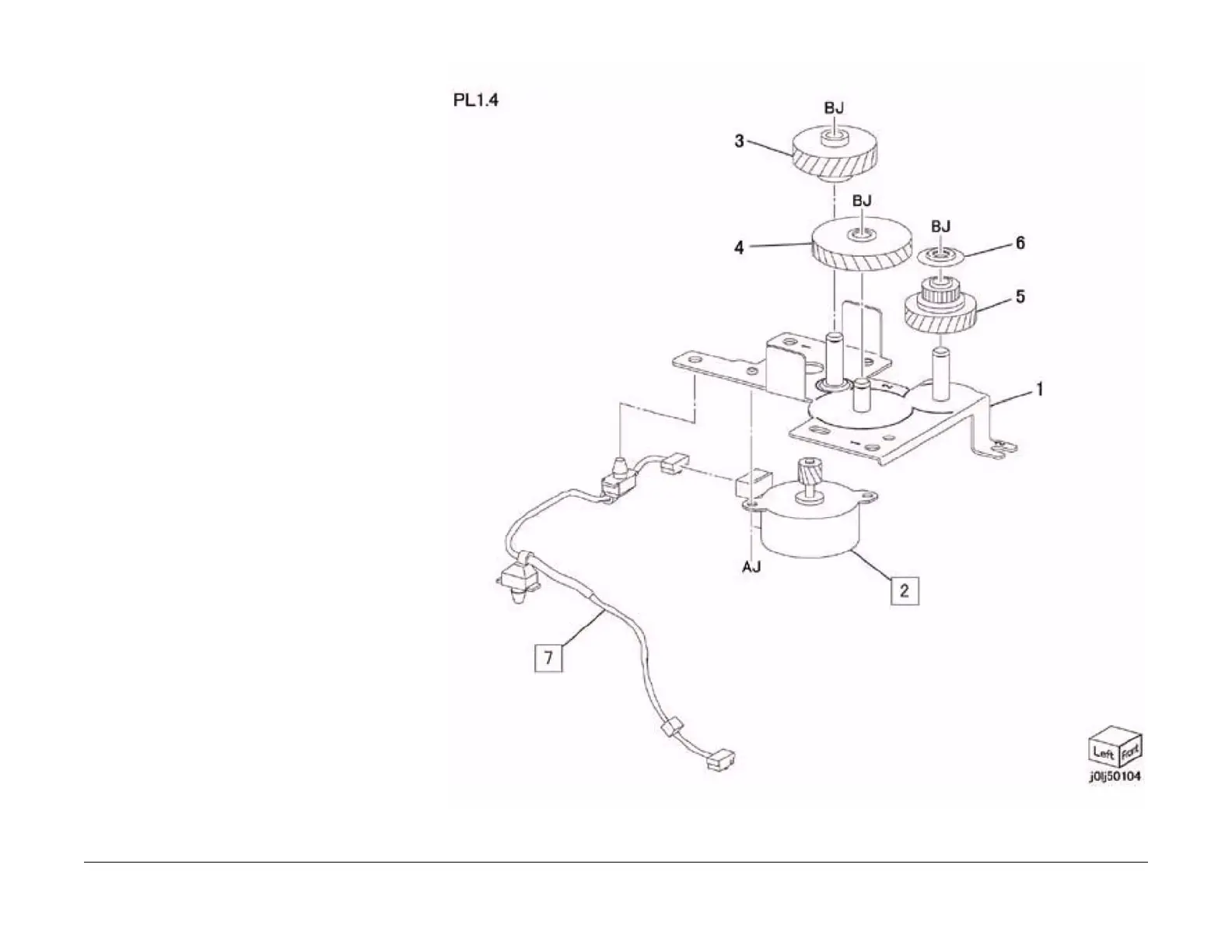

PL 1.4 Carriage Motor
Item Part Description
1 – Drive Bracket
2 127K66721 Carriage Motor (REP 1.4.1)
3 807E40871 Helical Gear
4 807E40880 Helical Gear
5 807E40890 Gear Pulley
6 005E33441 Flange
7 952K08120 Motor Wire Harness
