Xerox WorkCentre 5022 Service Manual

06/2014
5-28
WC 5022/5024
PL 10.6
Version 1.0
Parts List

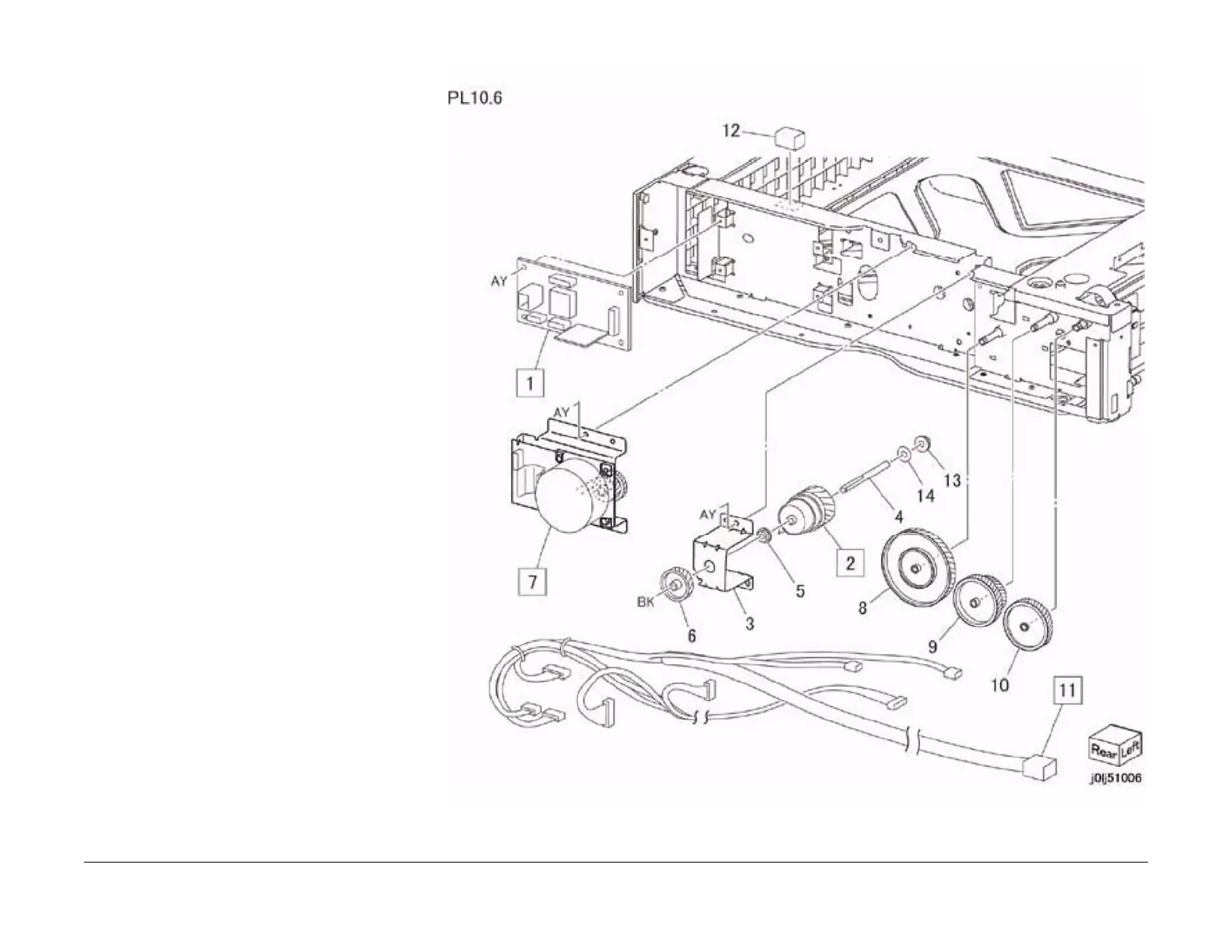

PL 10.6 Electrical
Item Part Description
1 960K68560 STM PWB (REP 10.6.1)
2 121K31530 STM Takeaway Roll Clutch
3 – Bracket
4 006E78490 Shaft
5 413W77359 Bearing
6 007E78260 Gear (38T)
7 007K19210 STM Takeaway Motor (REP 10.6.2)
8 007E79830 Gear (94T)
9 007E79840 Gear (33T/60T)
10 007E79850 Gear (60T)
11 952K08490 Wire Harness
12 – Gasket
13 413W11860 Bearing
14 252W29450 Nylon Washer

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
