Xerox WorkCentre 5022 Service Manual

06/2014
4-71
WC 5022/5024
Repairs and Asdjustments
Version 1.0
REP 56.1.1 DADF
Parts List on PL 56.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Rear Cover. (REP 19.4.1)
2. Disconnect the connector. (Figure 1)
a. Remove the cable band (x2).
b. Disconnect the connector.

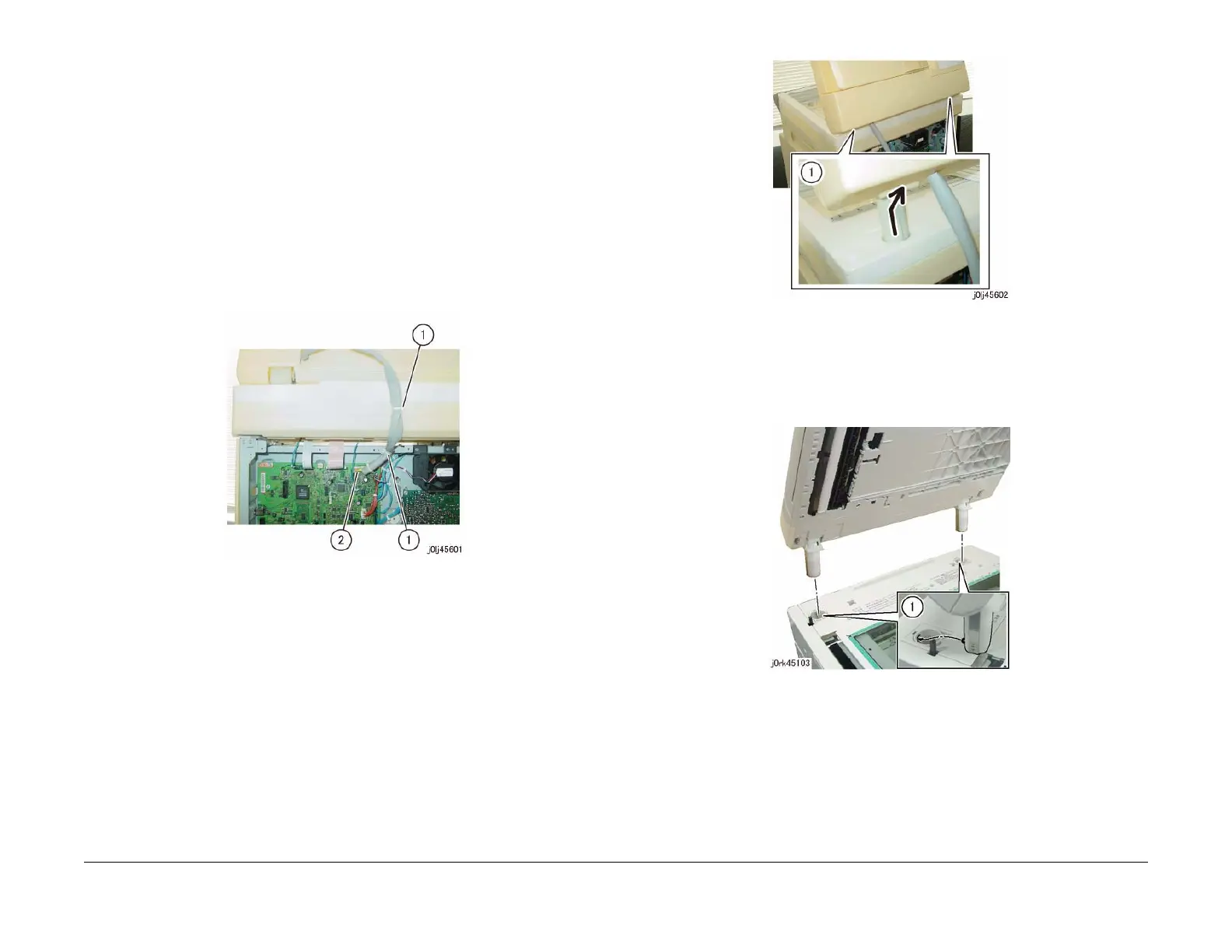

Figure 1 j0lj45601
3. Remove the DADF. (Figure 2)
a. Slant the Counter Balance in the direction of the arrow and remove it.
Figure 2 j0lj45602
Replacement
1. To install, carry out the removal steps in reverse order.
2. Install the DADF. (Figure 3)
a. Insert the tabs of the Counter Balance into the grooves of the installation holes.
Figure 3 j0rk45103
3. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
