Xerox WorkCentre 5022 Service Manual

06/2014
4-72
WC 5022/5024
Version 1.0
Repairs and Asdjustments
"Chain Link : 955-828"
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].
REP 56.1.2 DADF Platen Cushion
Parts List on PL 56.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The DADF Platen Cushion is pasted on with double sided adhesive tapes.
1. Peel off the DADF Platen Cushion. (Figure 1)
a. Peel off the DADF Platen Cushion.

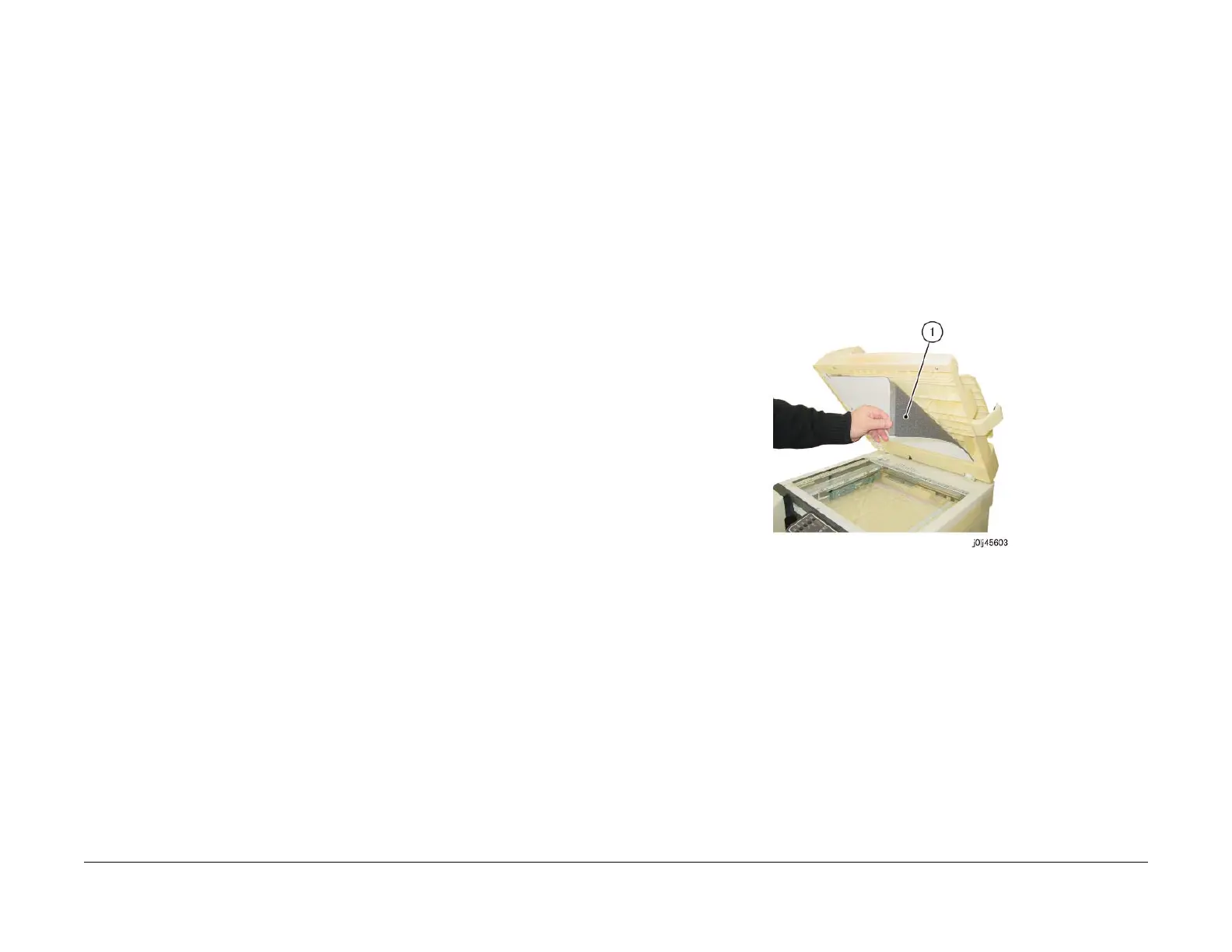

Figure 1 j0lj45603
Replacement
1. Paste on the DADF Platen Cushion. (Figure 2)
a. Place the DADF Platen Cushion on the Platen Glass.
b. Set up the gap between the Regi Guide and Platen Guide.
c. Slowly lower the DADF to paste the DADF Platen Cushion to it.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
