Xerox WorkCentre 5022 Service Manual

06/2014
5-42
WC 5022/5024
PL 14.4
Version 1.0
Parts List

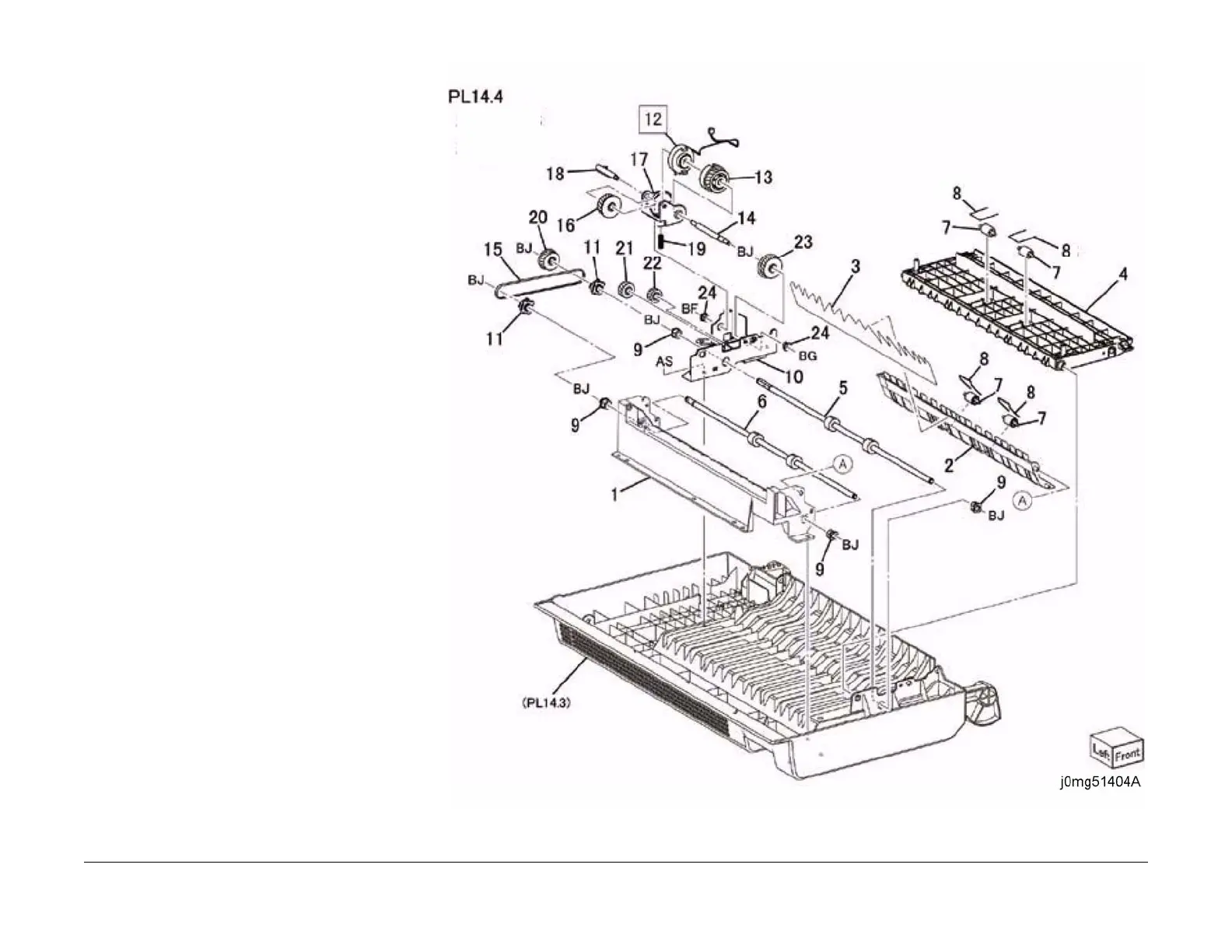

PL 14.4 Duplex L/H Cover-Roll,Gear
Item Part Description
1 054E49711 L/H Cover Upper Chute
2 – L/H Cover Upper Lower Chute
3 038E27201 Paper Guide
4 – Duplex Inner Chute
5 059K74950 Duplex Roll 1
6 059K74960 Duplex Roll 2
7 059E04010 Pinch Roll
8 809E75530 Spring
9 013E40060 Bearing
10 – Gear Bracket
11 020E45140 Pulley
12 121K52130 Duplex Clutch
13 807E40930 Helical Gear
14 – Duplex Clutch Shaft
15 023E27800 Belt
16 807E39430 Swing Helical Gear (27T)
17 868E77401 Swing Bracket
18 806E37111 Swing Shaft
19 809E99740 Spring
20 – Helical Gear (24T)
21 – Helical Gear (19T)
22 – Helical Gear (17T)
23 – Helical Gear (28T)
24 413W11460 Bearing
