Xerox WorkCentre 5022 Service Manual

06/2014
5-56
WC 5022/5024
PL 56.6
Version 1.0
Parts List

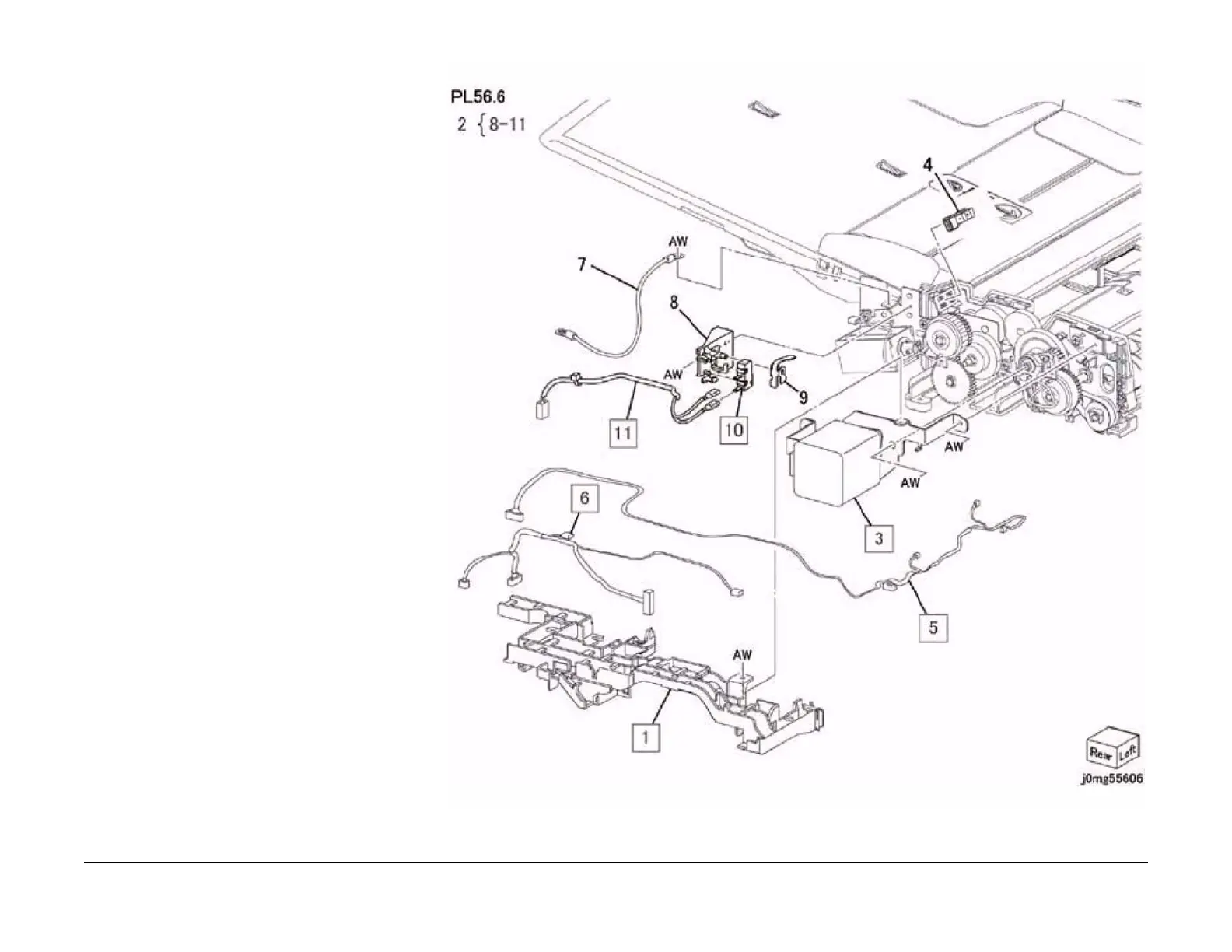

PL 56.6 DADF Feed Motor,Harness
Guide
Item Part Description
1 032E40210 Harness Guide (REP 56.6.1)
2 110K17140 DADF Feeder Cover Interlock
Switch Assembly (Item 8-11)
3 127K66690 DADF Feed Motor (REP 56.6.2)
4 930W00121 DADF Document Set Sensor
5 952K08460 Wire Harness (Sensor)
6 952K08440 Wire Harness (Motor/Clutch)
7 117K38961 Ground Wire
8 – Bracket (P/O Item 2)
9 – Spring (P/O Item 2)
10 – DADF Feeder Cover Interlock
Switch (P/O Item 2)
11 – Wire Harness (P/O Item 2)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
