Xerox WorkCentre 5022 - 19.2 Cover-Rear,Left Rear

06/2014
5-50
WC 5022/5024
PL 19.2
Version 1.0
Parts List

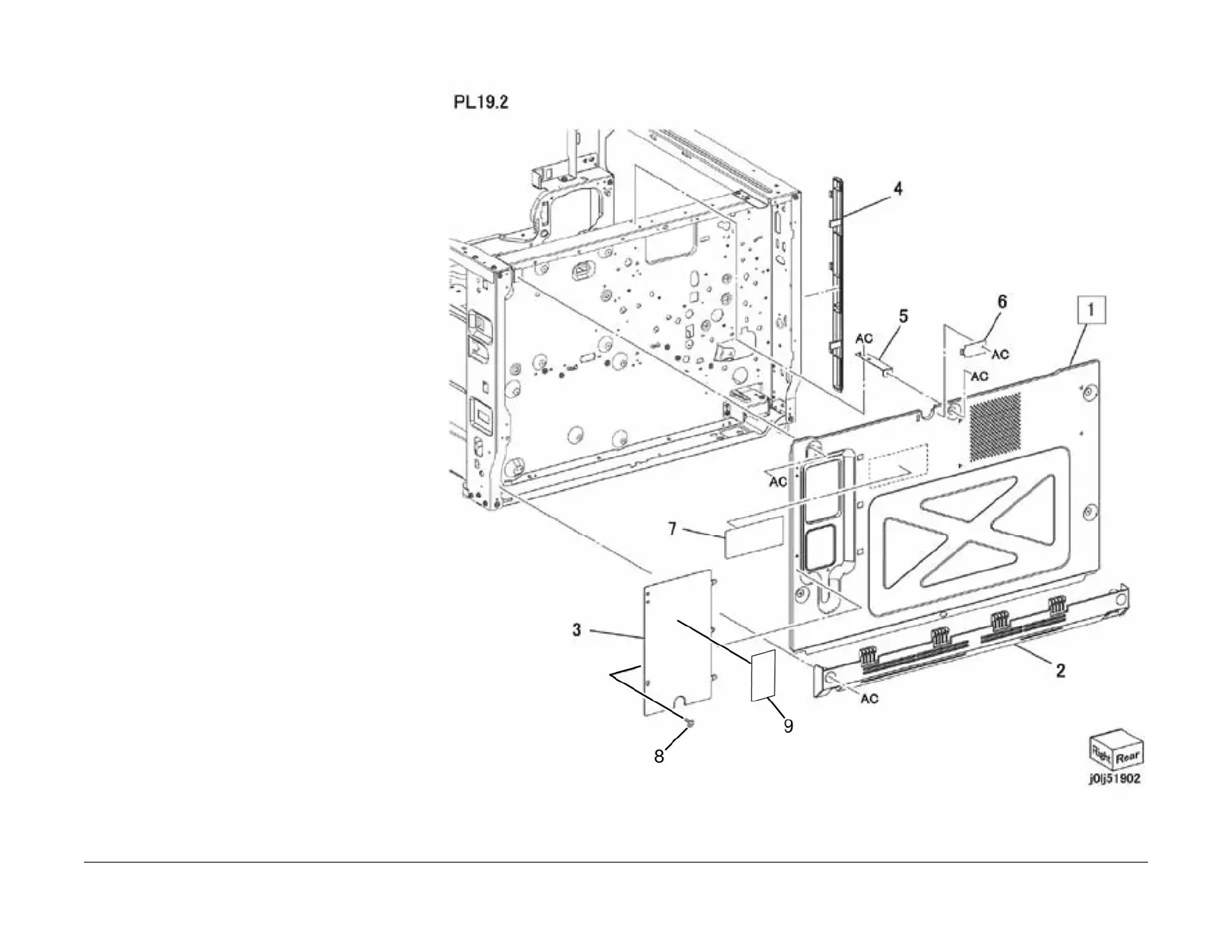

PL 19.2 Cover-Rear,Left Rear
Item Part Description
1 – Rear Cover (REP 19.4.1)
2 848E84631 Rear Lower Cover
3 – STM Connector Cover
4 848E87322 Left Rear Cover
5 868E69740 Bracket
6 – Blind Cover
7 – Data Plate
8 – Thumbscrew
9 – STM Caution Label
