Xerox WorkCentre 5022 Service Manual

06/2014
5-39
WC 5022/5024
PL 13.3
Parts List
Version 1.0

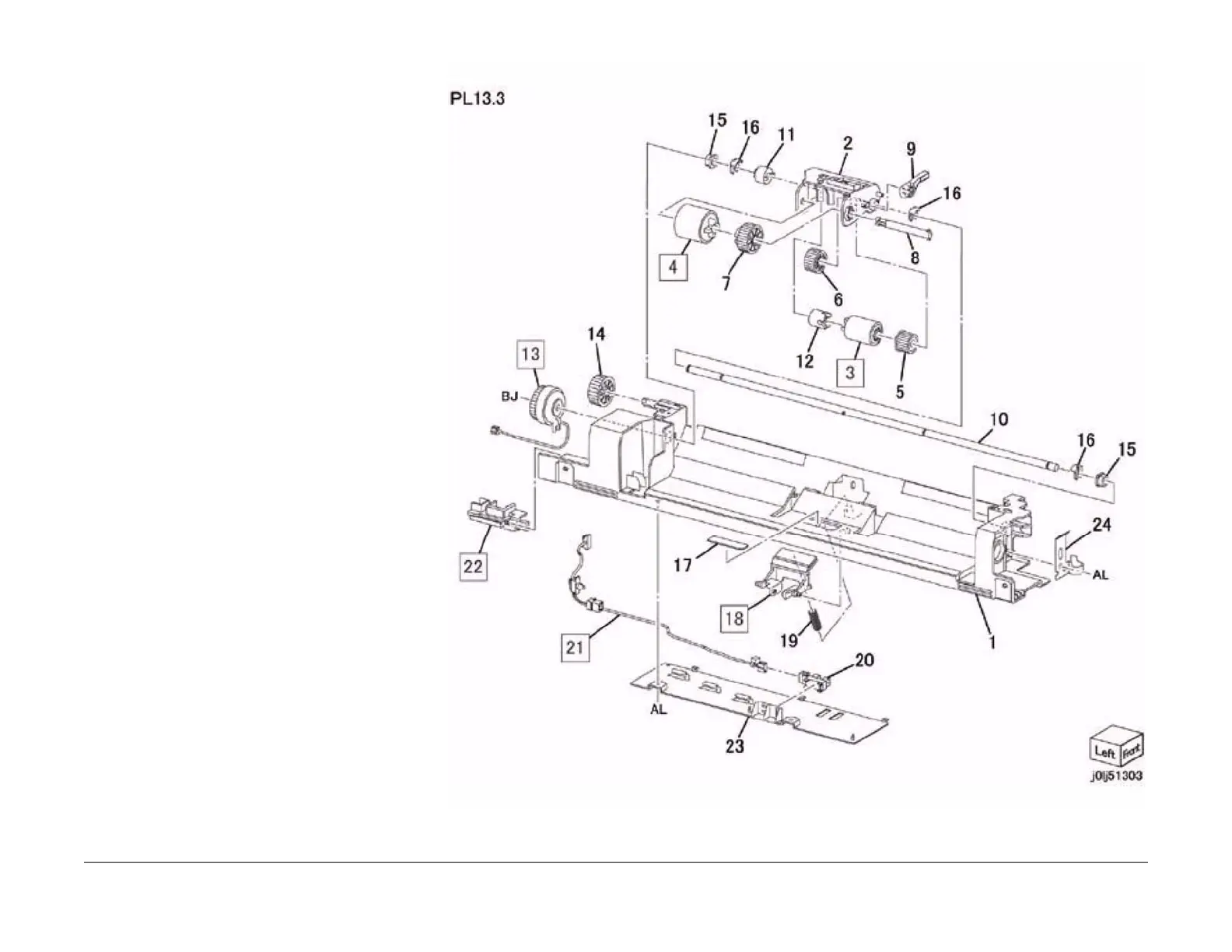

PL 13.3 MSI Lower Feeder
Item Part Description
1 – MSI Lower Frame
2 019E85410 Nudger Holder
3 022K77450 MSI Feed Roll (REP 13.3.1)
4 022K78481 MSI Nudger Roll (REP 13.3.1)
5 007K18660 Oneway Clutch Gear (30T)
6 807E39610 Gear (33T)
7 807E39600 Gear (46T)
8 806E37300 Shaft
9 803E17031 Stopper Paper Lock
10 – Shaft
11 005K83510 Friction Clutch
12 005K83520 Oneway Clutch
13 121K52220 MSI Feed Clutch
14 807E39620 Gear (18T)
15 413W11660 Bearing
16 – KL-Clip
17 019E84010 Bottom Pad
18 019K12820 MSI Retard Pad (REP 13.3.2)
19 899E01340 Spring
20 930W00123 MSI No Paper Sensor
21 962K68852 MSI Wire Harness
22 848E85862 Connector Cover
23 848E85940 MSI Lower Cover
24 815E77090 Ground Plate

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
