06/2014
4-35
WC 5022/5024
Repairs and Asdjustments
Version 1.0
REP 10.1.1 Tray 2 Feeder
Parts List on PL 10.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove Tray 2.
2. Open the Left Cover Assembly of the One Tray Module.

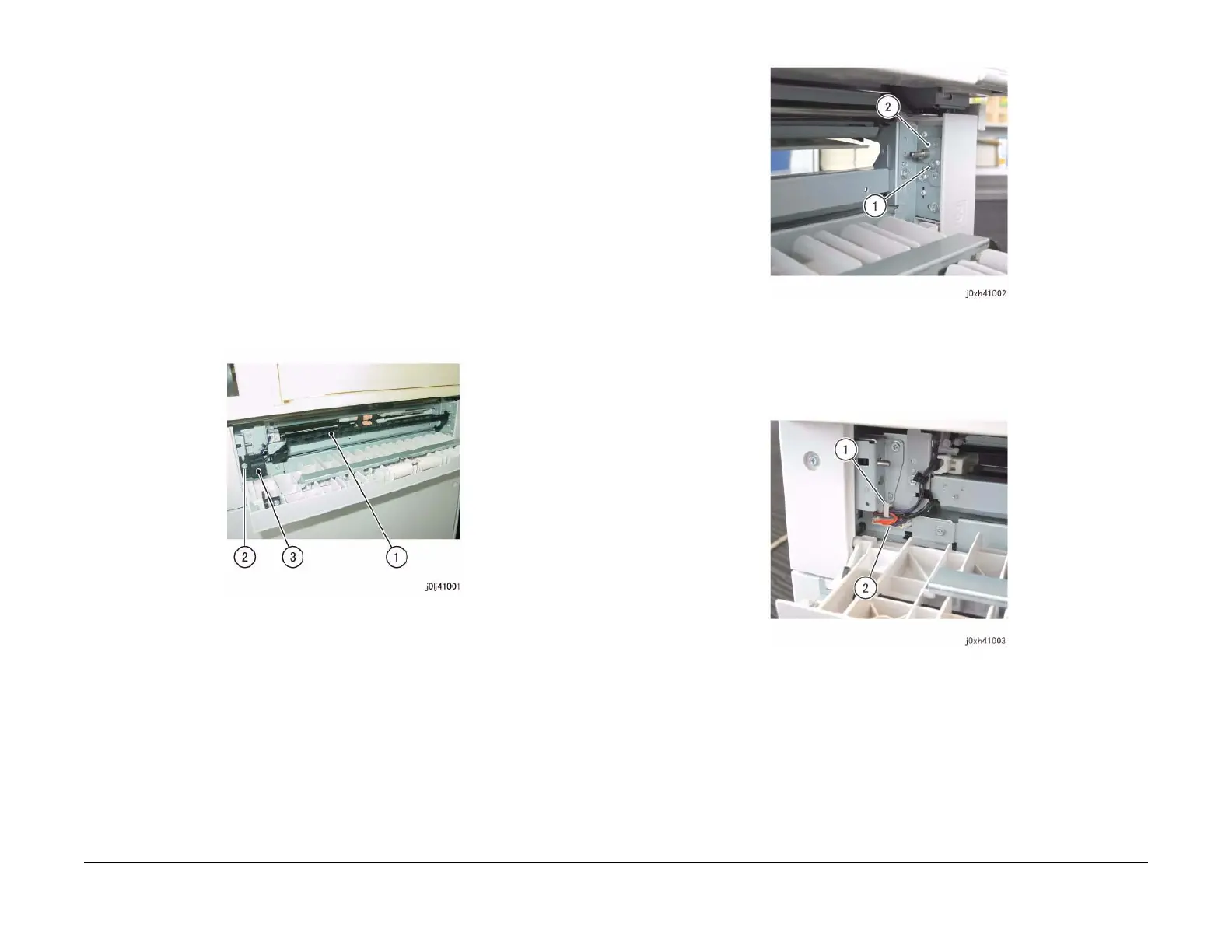

3. Remove the Feed Out Chute and the Connector Cover. (Figure 1)
a. Remove the Feed Out Chute.
b. Remove the screw.
c. Remove the Connector Cover.
Figure 1 j0lj41001
4. Remove the Stud Assembly. (Figure 2)
a. Remove the screw.
b. Remove the Stud Assembly.
Figure 2 j0xh41002
5. Disconnect the connector. (Figure 3)
a. Release the wire harness from the clamp.
b. Disconnect the connector.
Figure 3 j0xh41003
6. Remove the Tray 2 Feeder. (Figure 4)
a. Remove the screw (x2).
b. Remove the Tray 2 Feeder.
