Xerox WorkCentre 5022 Service Manual

06/2014
4-41
WC 5022/5024
Repairs and Asdjustments
Version 1.0
REP 11.1.1 Tray 3 Feeder
Parts List on PL 11.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp turns OFF. Press the
<Job Status> button to check that there are no jobs in progress/waiting in the queue.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove Tray 3.

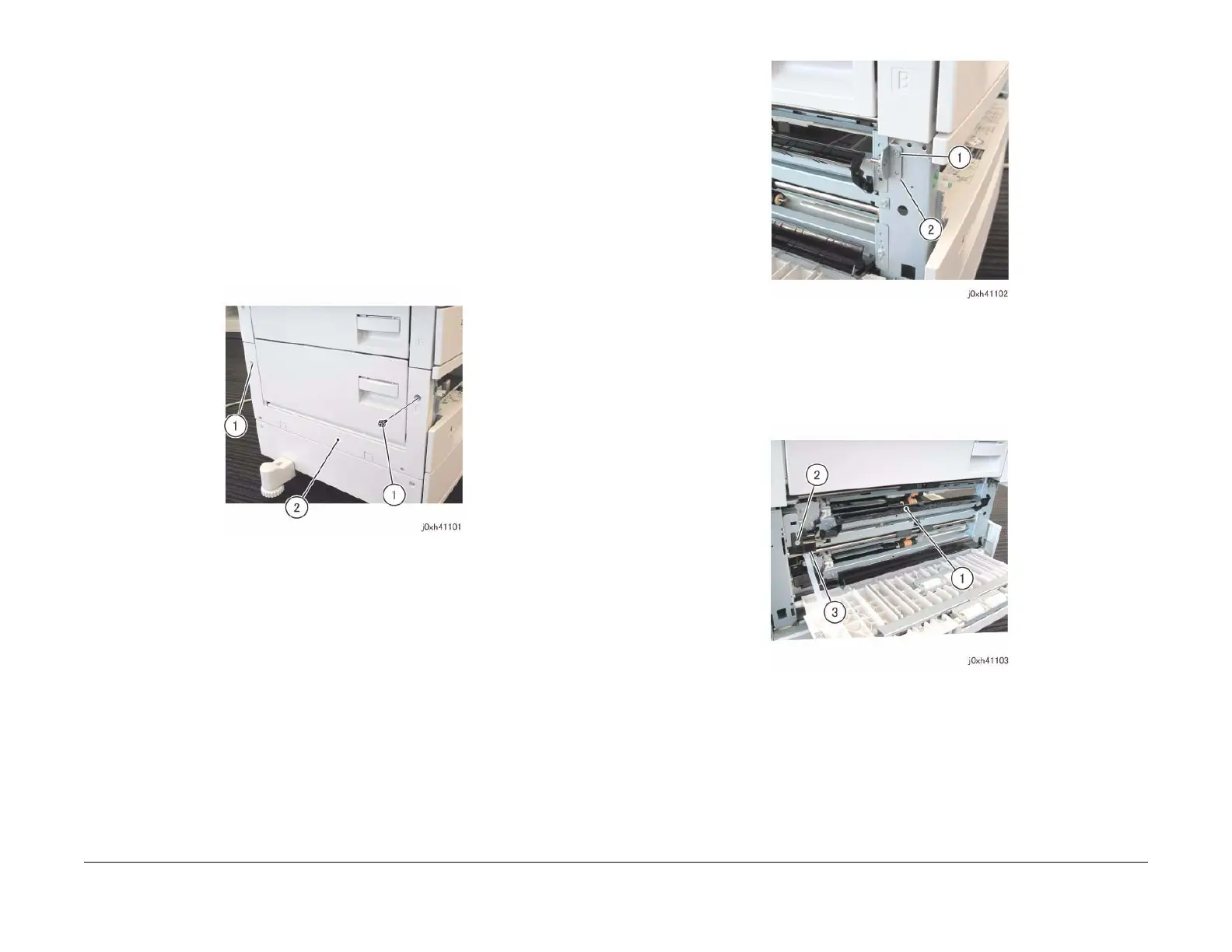

2. Remove the Left Upper Cover. (Figure 1)
a. Remove the screw (x2).
b. Remove the Left Upper Cover.
Figure 1 j0xh41101
3. Remove the Stud Assembly. (Figure 2)
a. Remove the screw.
b. Remove the Stud Assembly.
Figure 2 j0xh41102
4. Remove the Feed Out Chute and the Harness Cover. (Figure 3)
a. Remove the Feed Out Chute.
b. Remove the screw.
c. Remove the Harness Cover.
Figure 3 j0xh41103
5. Disconnect the connector. (Figure 4)
a. Release the wire harness from the clamp.
b. Disconnect the connector.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
