Xerox WorkCentre 5022 Service Manual

06/2014
3-17
WC 5022/5024
IDS6 Toner Splattering
Image Quality Troubleshooting
Version 1.0
IDS6 Toner Splattering

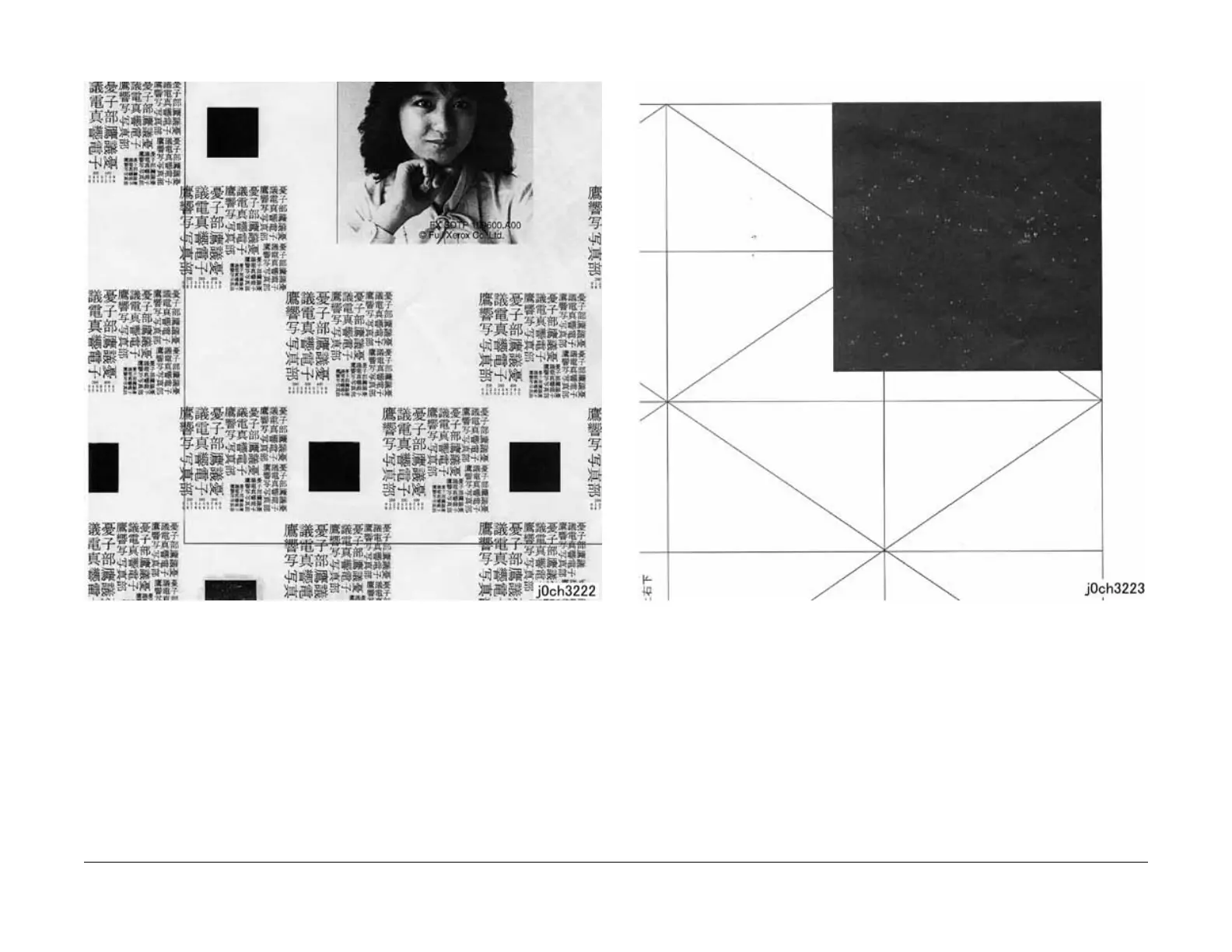

Figure 1 Toner Splattering Defect Sample (j0ch3222)
Cause
1. Paper size mismatch occurred (tray settings and paper size are different).
2. The resistance of the paper increased under dry conditions.
Action
1. Check the tray settings.
2. Use paper from a freshly opened packet.
IDS7 White Spots (Irregular)
Figure 1 White Spots (Irregular) Defect Sample (j0ch3223)
Cause
1. The resistance of the paper increased under dry conditions.
Action
1. Use paper from a freshly opened packet.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
