Xerox WorkCentre 5022 Service Manual

06/2014
4-5
WC 5022/5024
Repairs and Asdjustments
Version 1.0
REP 1.2.1 IIT Top Cover
Parts List on PL 1.8
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Platen Cover or the DADF. (REP 56.1.1)

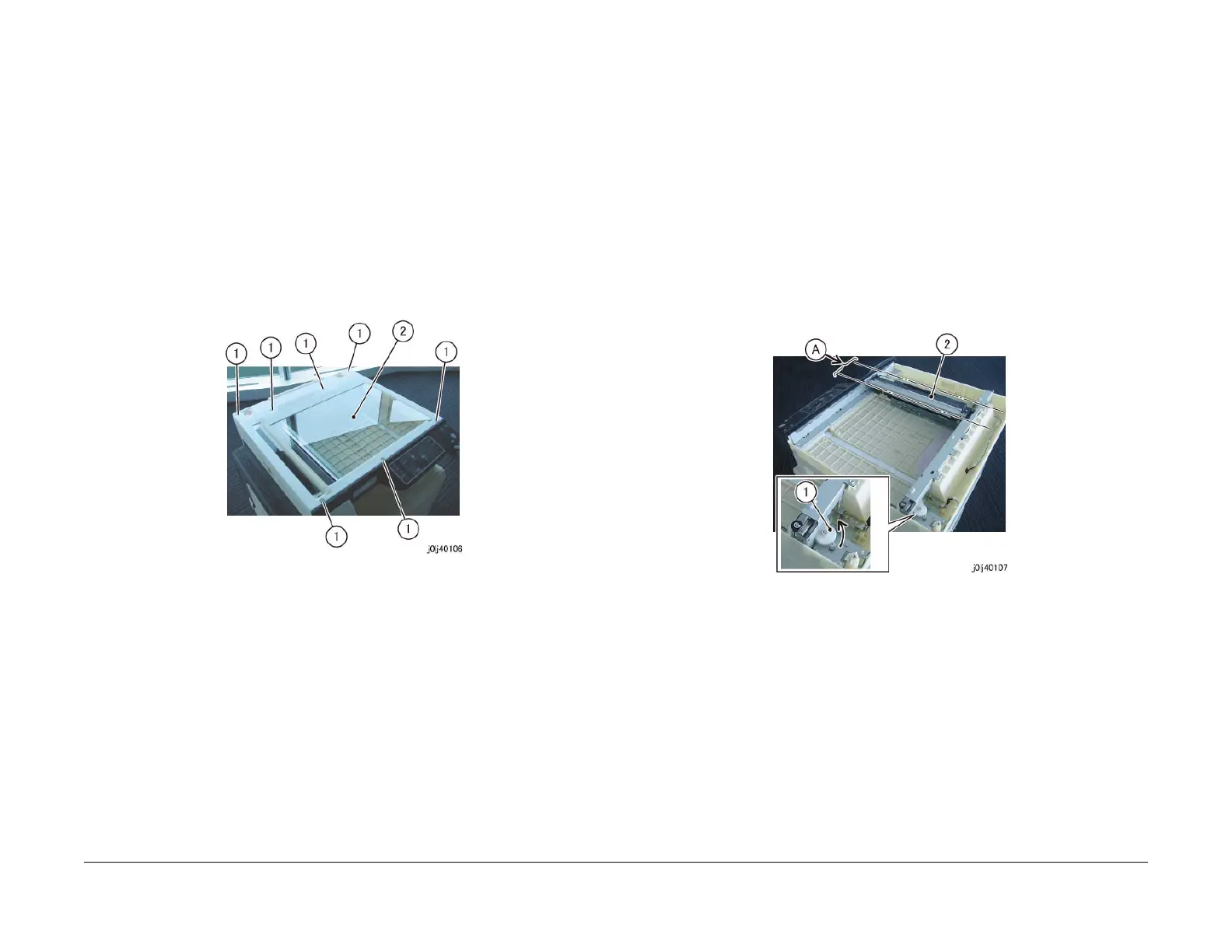

2. Remove the IIT Top Cover. (Figure 1)
a. Remove the screw (x7).
b. Remove the IIT Top Cover.
Figure 1 j0lj40106
Replacement
1. To install, carry out the removal steps in reverse order.
REP 1.3.1 IIT Carriage
Parts List on PL 1.5
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Platen Cover or the DADF. (REP 56.1.1)
2. Remove the IIT Top Cover. (REP 1.2.1)
3. Move the IIT Carriage to the opening of the Frame. (Figure 1)
a. Rotate the gear in the direction of the arrow.
b. Move the IIT Carriage to the opening (Arrow A) of the Frame.
Figure 1 j0lj40107
4. Remove the IIT Carriage Belt from the IIT Carriage. (Figure 2)
a. Remove the IIT Carriage Belt in the direction of the arrow.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
