06/2014
4-36
WC 5022/5024
Version 1.0
Repairs and Asdjustments

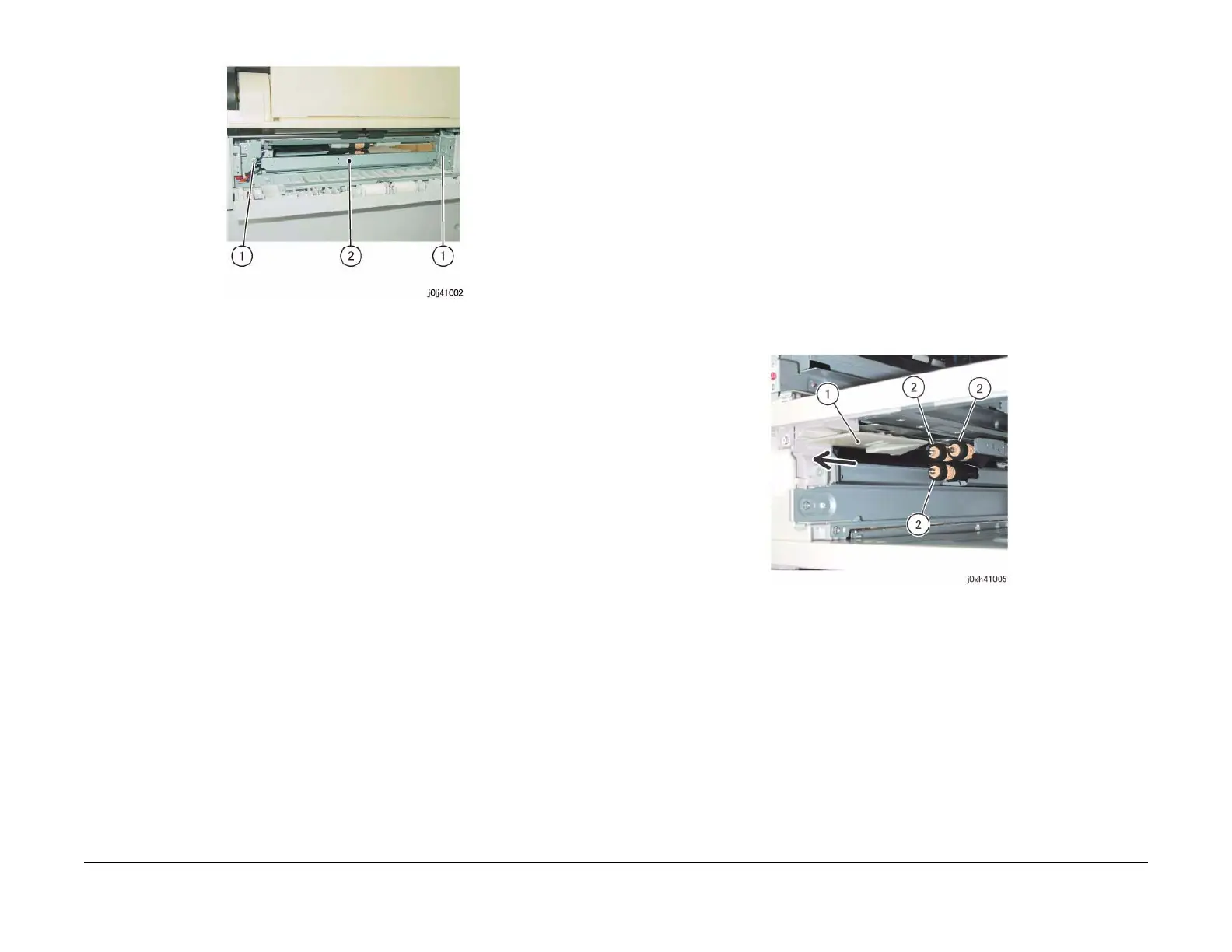

Figure 4 j0lj41002
Replacement
1. To install, carry out the removal steps in reverse order.
2. After a replacement, enter the CE Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
"Chain Link : 950-804"
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].
REP 10.3.1 Tray 2 Feed/Retard/Nudger Roll
Parts List on PL 10.3
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The Feed/Retard/Nudger Rolls must be replaced at the same time.
1. Remove Tray 1/2.
2. Remove the Tray 2 Feed/Retard/Nudger Roll. (Figure 1)
a. Slide the Front Chute towards you.
b. Remove the Tray 2 Feed/Retard/Nudger Roll.
Figure 1 j0xh41005
Replacement
1. To install, carry out the removal steps in reverse order.
2. After a replacement, enter the CE Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
• "Chain Link : 950-804"
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].
