Xerox WorkCentre 5022 Service Manual

06/2014
5-57
WC 5022/5024
PL 56.7
Parts List
Version 1.0

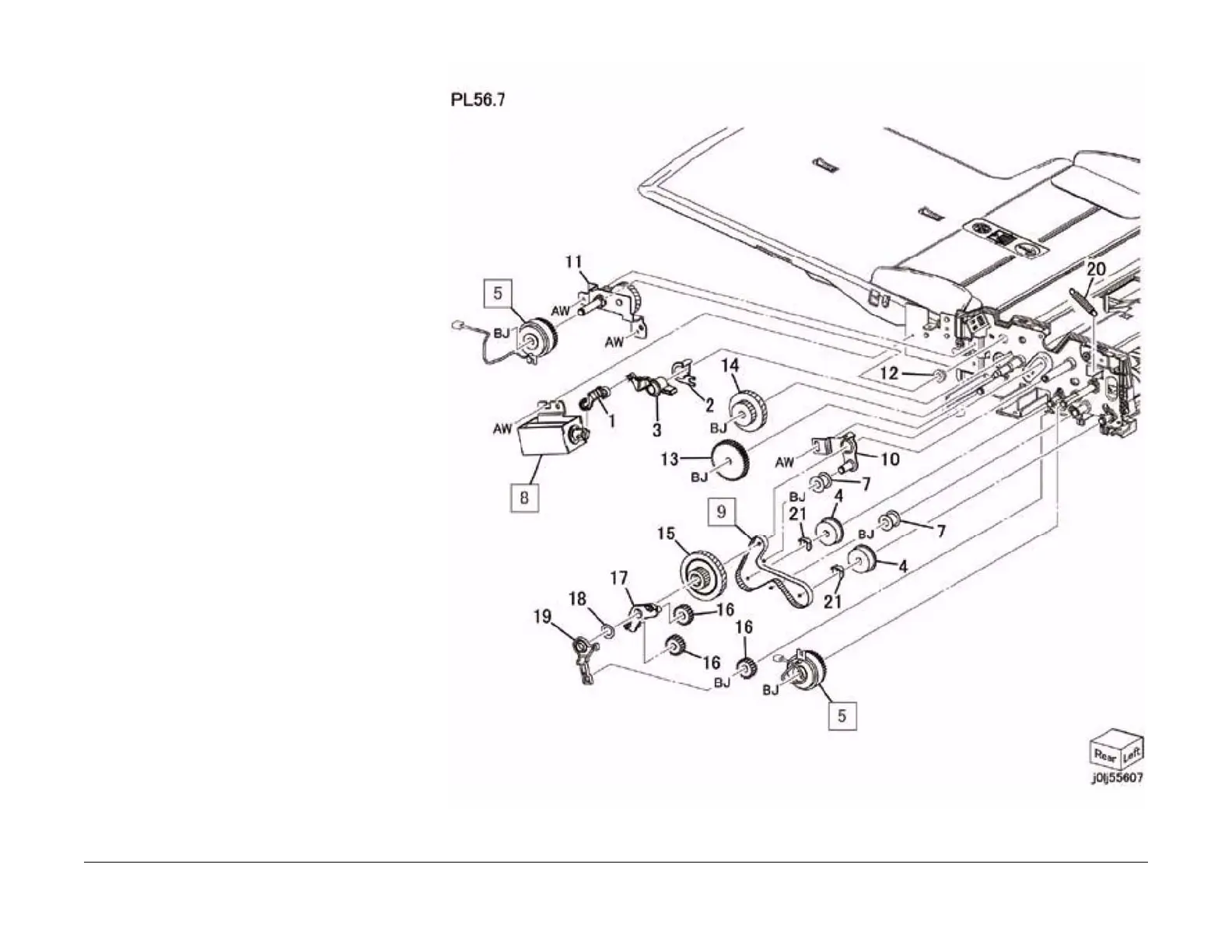

PL 56.7 DADF Feeder Rear Frame
Item Part Description
1 012E18260 Release Link
2 013E41200 Set Bearing
3 012E18270 Exit Link
4 020E46551 Pulley
5 121K52310 DADF Feed Clutch, DADF
Takeaway Clutch
7 – Roll
8 121K52470 Exit Nip Release Solenoid
9 423W32055 DADF Drive Belt (REP 56.7.1)
10 – Tension Bracket
11 049K18190 Clutch Gear and Bracket
12 413W85459 Bearing
13 807E40790 Gear (42T)
14 807E40800 Gear (40/24T)
15 807E40830 Gear Pulley
16 807E40840 Gear (19T)
17 868E80570 Bracket
18 899E01573 Washer
19 012E18290 Link
20 899E01581 Spring
21 – KL-Clip

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
